─ 16 ─

AssemblyAssembly

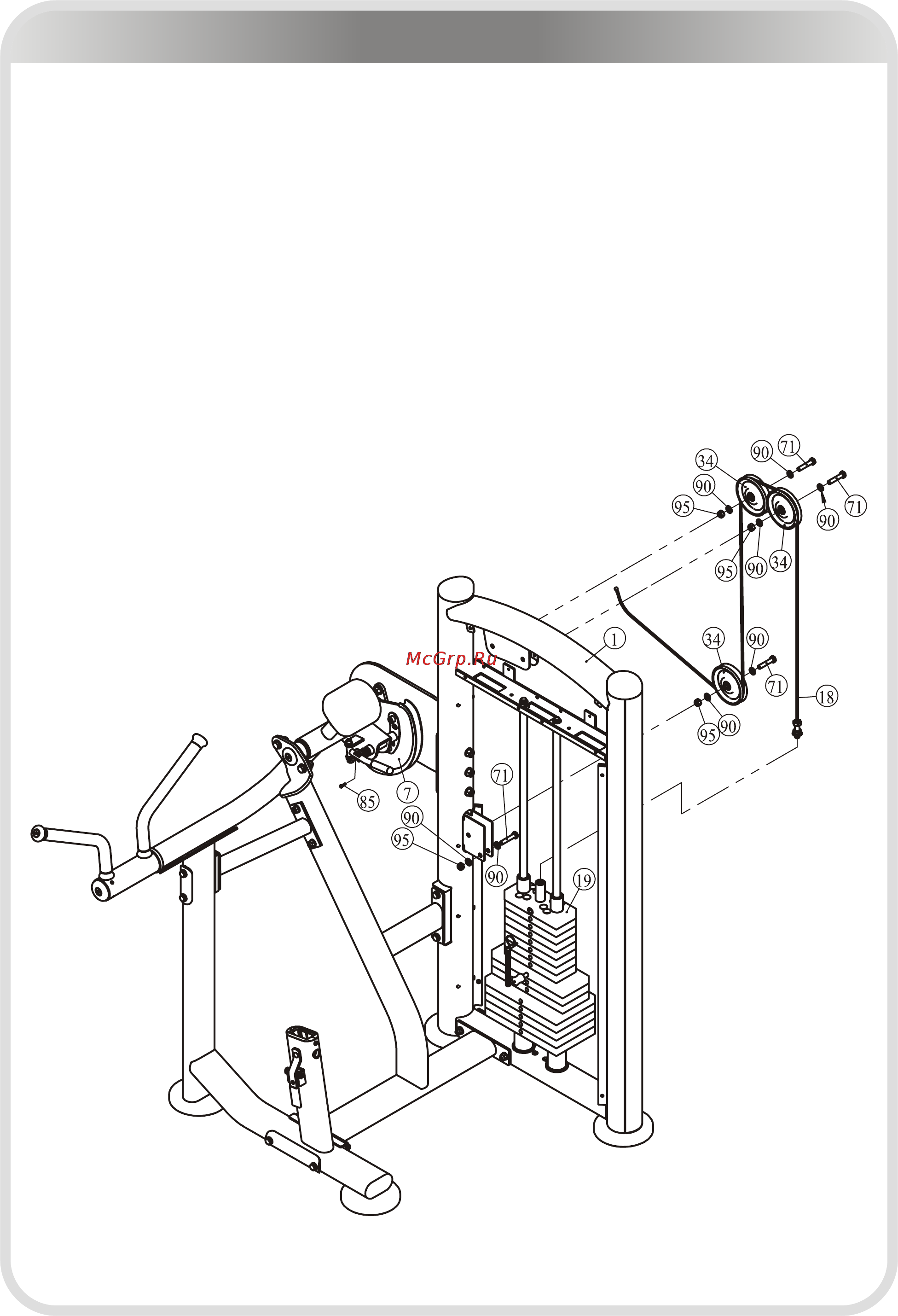

STEP 5

1. Attach the Press Cable (#18) to the Top Plate (#19).

2. Attach three 4.5" Pulleys (#34) to the Weight Stack Frame (#1) using:

four M10*50 HHB (#71) eight Φ11*Φ20*2 Flat Washers (#90)

four M10 Nylon lock Nuts (#95)

3. Attach the Press Cable (#18) to the Cam Wheel Brackets (#7) using:

one M4*15 SHCS (#85)

Note: Wrench Tighten Βolts and Nylon Lock nuts.
