INSTALLATION
Important warnings
• Installation of the appliance into a kitchen worktop and its connection to the power mains may only be performed by an
adequately qualified technician.
• Veneer or other fi nish of the piece of kitchen furniture into which the hob is to be built in should be treated with heat resistant
glue (100°C); otherwise, the worktop finish may be discolored or deformed.
• Cooking hob is dimensioned to be built into the worktop over a piece of kitchen furniture, with a width of 600 mm or more.
• After installation, the front two fastening elements should be freely accessible from below.
• The kitchen furniture element underneath the hob should not be fitted with a drawer. If the kitchen furniture element as a
horizontal partition wall, it should be installed no less than min 20mm from the lower surface of the worktop. The space
between the partition wall and the hob must be empty; no objects should be placed into that gap.
• Hanging, or wall-mounted kitchen elements should be installed high enough not to interfere with the work process.
• The distance between the cooking hob and the kitchen hood should be no less than indicated in the instructions for kitchen
hood installation. The minimum distance is 700 mm.
• The distance between the appliance edge and the adjacent tall kitchen furniture element should amount to no less than 150
mm.
• Use of massive wood decoration plates or boards on the worktops behind the cooking hob is permitted, if the minimum
distance remains the same as indicated in the installation drawings.
• Minimum distance between the built-in cooking hob and the rear wall is indicated on the installation drawing.
• Cooking hobs can be installed into worktops that are 25 to 40 mm thick.
The front part must have an opening of no less than 5 mm.
• Only ovens fitted with a cooling fan must be installed underneath this cooking hob.
• Before installing an oven, the rear wall of the kitchen furniture element should be removed in the area of the cooking
hob cutout. Furthermore, a gap of at least 5 mm should be left at the front side.

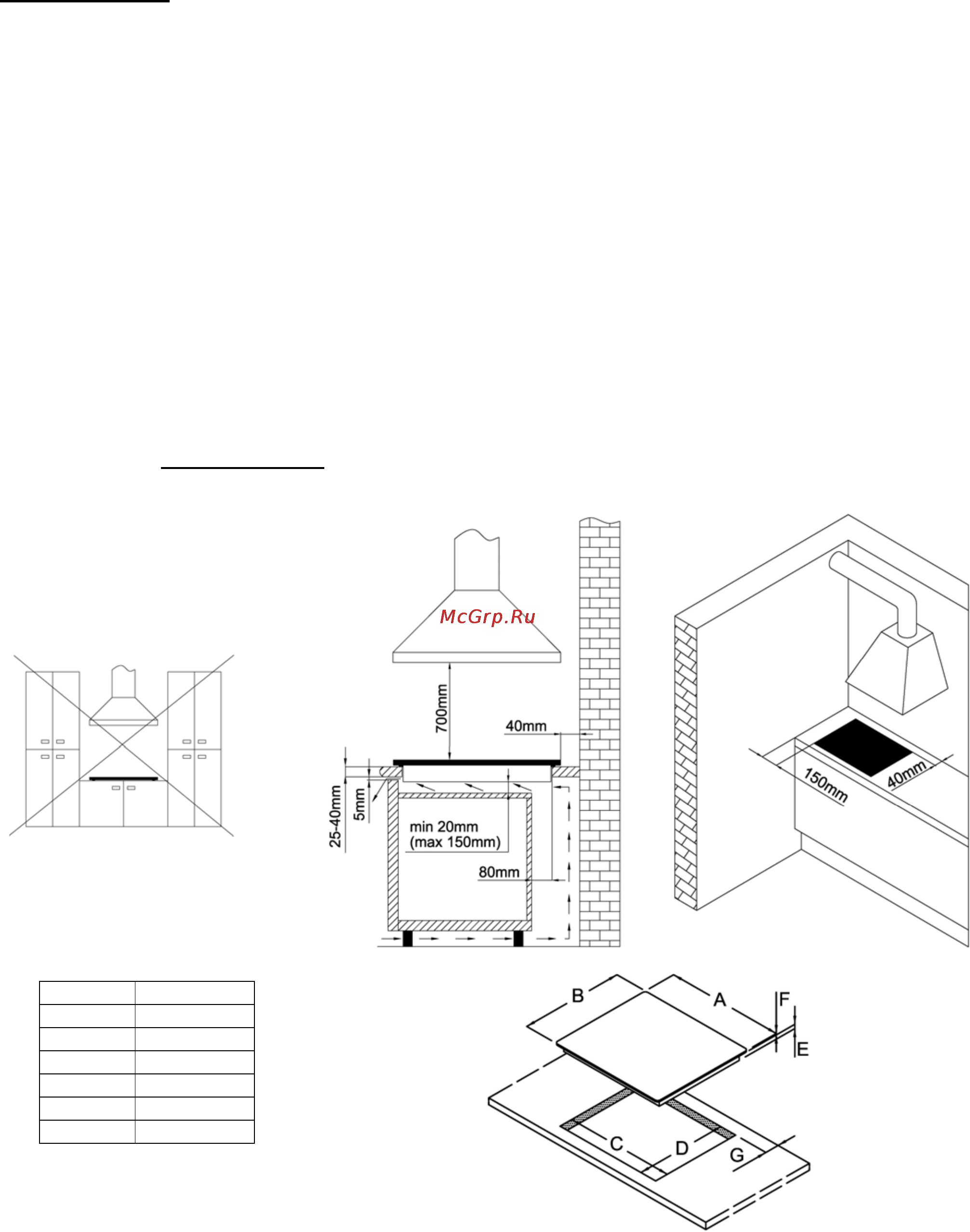

A (mm)
585
B (mm)
510
C (mm)
560
D (mm)
480
E (mm)
40
F (mm)
9
G (mm)
50
Installing the foam
gasket
Before inserting the appliance into the opening in the kitchen worktop, the supplied foam
gasket must be attached to the lower side of the glass ceramic (glass) cooking hob (see
fi gure above).
Do not install the appliance without the foam gasket!
The gasket should be attached to the appliance in the following way:
- Remove the protective film from the gasket.
- Then, attach the gasket to the lower side of the glass, approximately A=2-3 millimetres
from the edge (as shown in the figure). The gasket must be attached along the entire
