Gorenje GTW6INI [5/52] Connecting the appliance to the power mains

length of the glass edge and should not overlap at the corners.

- When installing the gasket, make sure that the glass does not come into contact with

any sharp objects.

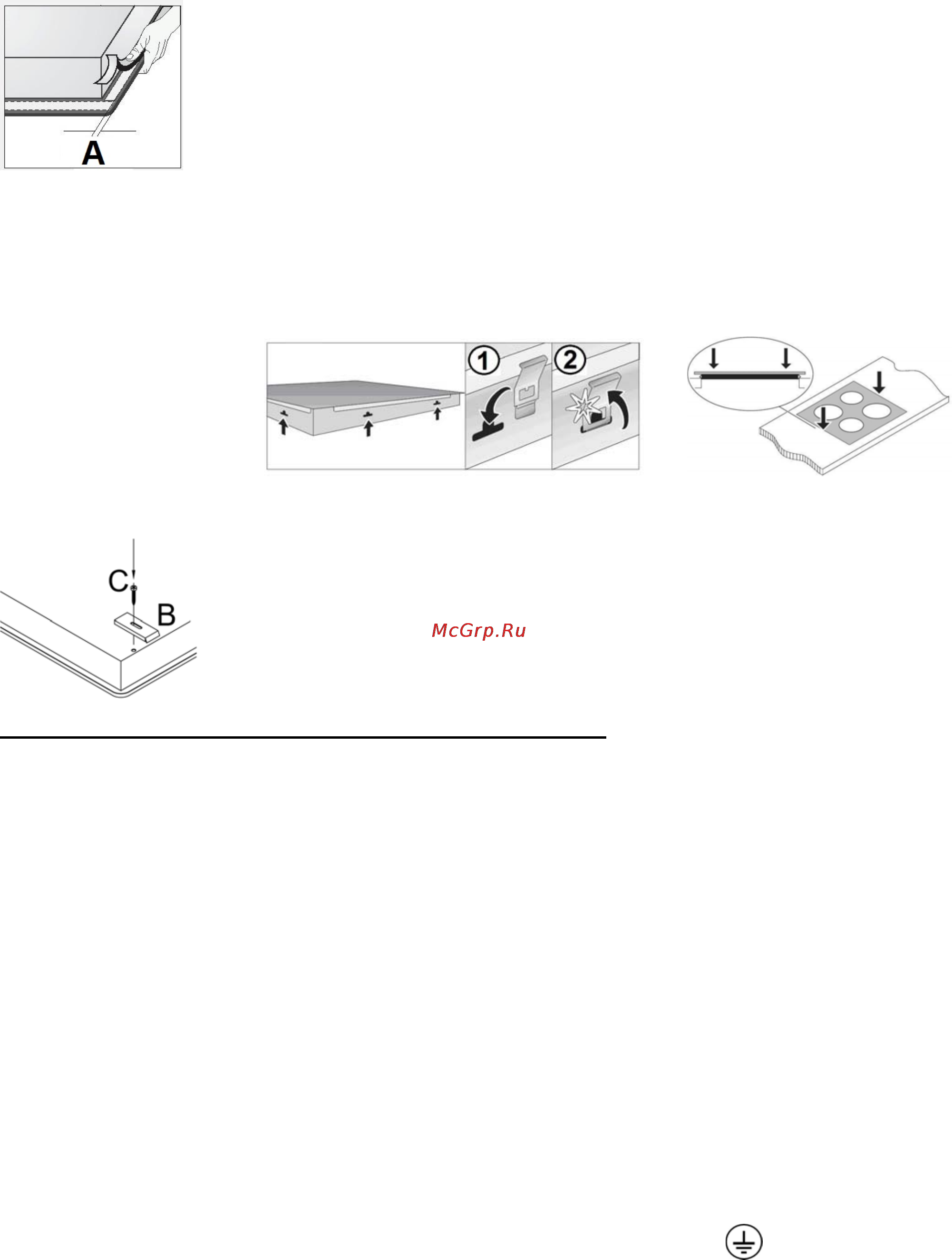

Installation procedure

(with springs)

• Worktop must be placed absolutely horizontal.

• Suitably protect the edges of the cut aperture.

• Connect the cooking hob to the mains power supply (see instructions for the connection

of the cooking hob to mains power supply).

• Put the supplied springs in their places.

• Insert the hob into the cut aperture.

• Press the hob firmly towards the worktop from above.

Installation procedure

(with fixing brackets)

The cook top is fixed to the unit by means of the brackets and accessories provided.

Holes are provided in the bottom of the tray where you can attach the screws (C) that

hold the

fixing brackets (B) in place.

CONNECTING THE APPLIANCE TO THE POWER MAINS

• The appliance may only be connected by an authorized skilled technician.

• Electric system protection should comply with all relevant regulations.

• The connection clips can be accessed when the connection clip covers are opened /

removed.

• Before connecting the appliance, make sure the voltage indicated on the rating plate is

consistent with the voltage in your home circuit.

• The rating plate with basic information is attached on the lower side of the hob.

• The appliance is manufactured for use with the power supply voltage

220-240 V ~.

• In order to make a fixed connection to the mains, insert an all-pole circuit breaker

between the appliance and the mains. This device shall have a contact separation in all

poles, providing full disconnection under overvoltage category III conditions.

• Given the protection from the risk of fire, appliances of this type may be installed in a

worktop next to a piece of kitchen furniture that is taller than the appliance (when

installed); however, in this case, a kitchen furniture element must be installed on the

other side, adjacent to the appliance.

• The current conducting and isolated parts must be protected from any possibility of

direct contact.

WARNING!

• Before any intervention, disconnect the appliance from the power mains. Connect the

appliance in compliance with the electric connections diagram supplied; make sure the

relevant network voltage is observed! The ground wire

should be connected to the

clip indicated by the earthing symbol.

• The mains cable should be fed through the fastening clip which protects it from being

accidentally pulled out.

• After connecting the appliance, turn on all cooking zones / heaters for approximately

three minutes to make sure they are operating correctly.
