12
13

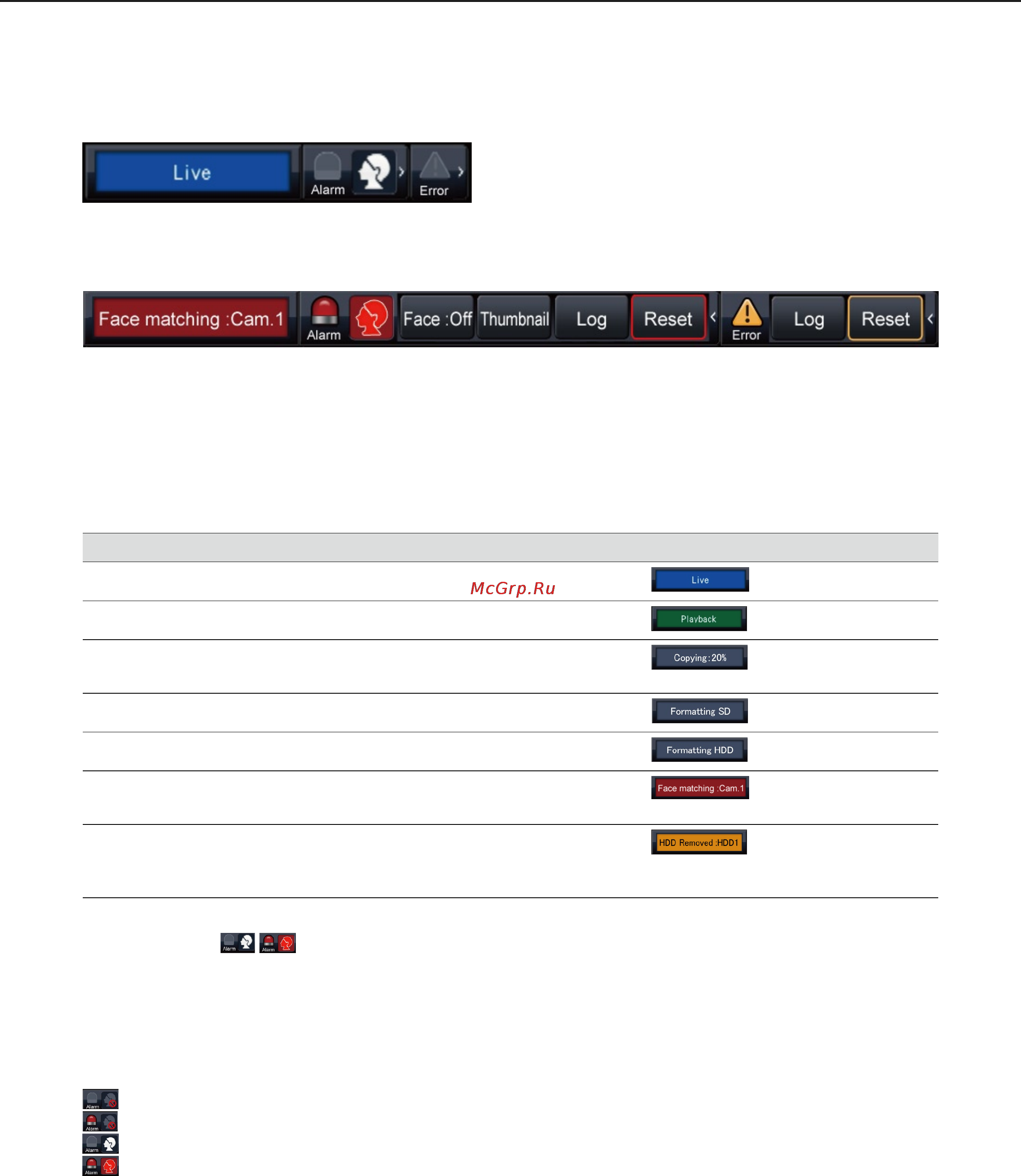

Status display panel
Normal operation
w e
wq i o e
t r
y u
In case of alarm/error
q Status display area
Recorder status indications and their details are shown in the table below. In the event that the recorder
enters several statuses at the same time, these are displayed in their order of priority. If both statuses have
the same priority, the one that occurred last will be displayed.
Status Description Example Priority
Live Live images are being displayed. 5 (Low)
Playback Recorded images are being displayed. 5
Copying Data is being copied.
Copying progress is displayed in %.
4
Formatting SD SD memory card is being formatted. 4
Formatting HDD HDD is being automatically formatted. 3
In the alarm state Indicates an alarm occurrence. Detailed
information of the alarm will be displayed.
2
In the error state Indicates that an error has occurred. A
detailed description of the error content will
be displayed.
1 (High)
w Alarm button
Indicate that an alarm has occurred. Turn red in the alarm state. Clicking the buttons will toggle between
displaying/not displaying buttons such as the alarm log button and the alarm reset button.
<Face matching function>
If the face matching function has been configured for use, the following display functions and operations are
available:
Face matching stopped and Face matching alarm off
Face matching stopped and Face matching in alarm state
Face matching in operation and Face matching alarm off
Face matching in operation and Face matching in alarm state
