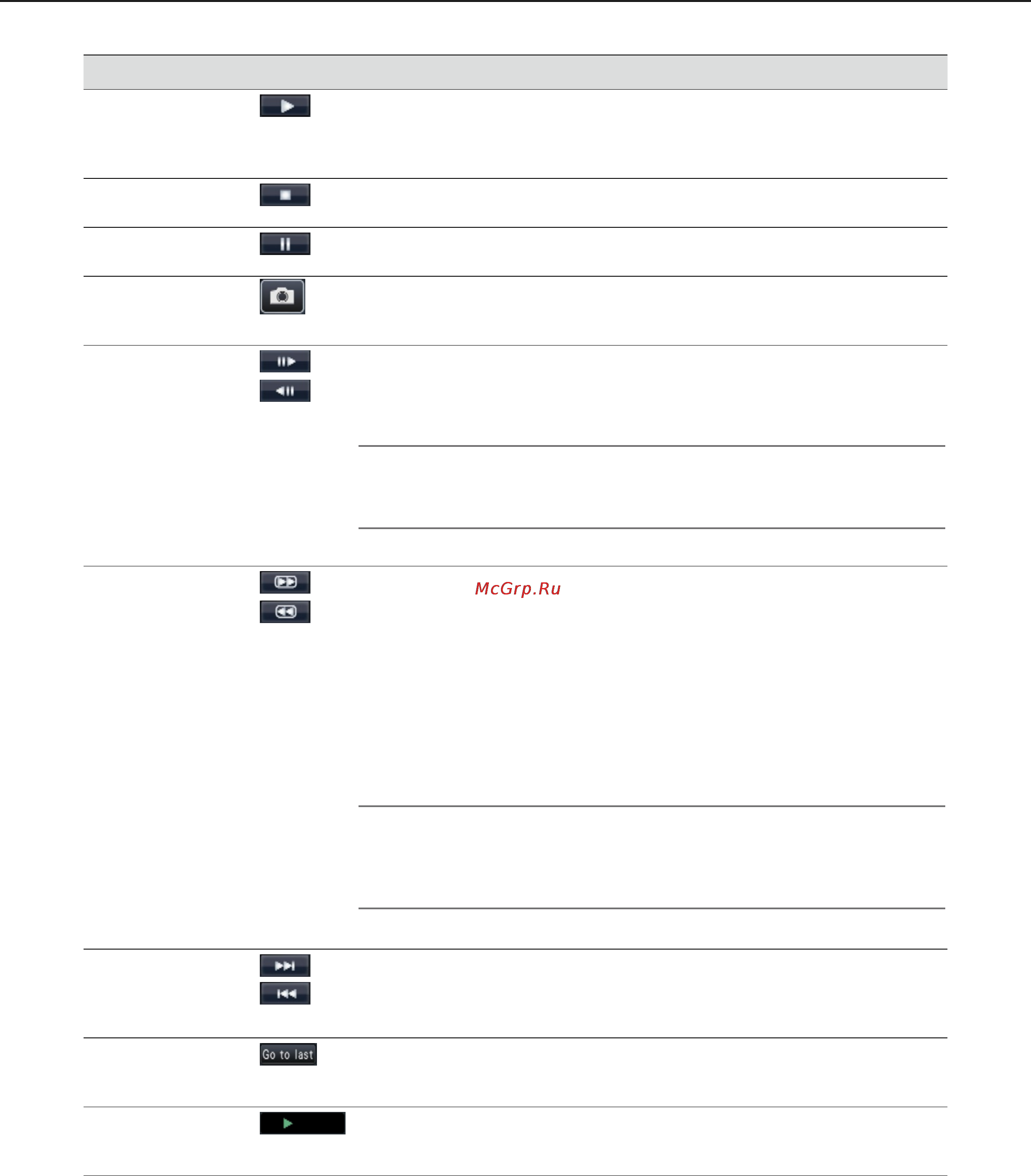

The functions of the playback buttons are as follows:
Function Example Operation
Playback button
Plays recorded images.
Clicking this button while playback is paused will cancel the pause status.
When the playback button is clicked during fast playback/fast reverse play-
back, the playback speed will be x1.
Stop button
Playback will stop and live images will be displayed when this button is
clicked during playback/pause.
Pause button
Playback will be paused when this button is clicked during playback.
Pause will be canceled when this button is clicked during playback/pause.
Captured Image but-
ton
Saves images paused during playback on SD memory card.
Clickable only while playback is paused. ("About captured image" ☞ page
34)
Next image/
Previous image but-
ton
When the next image button is clicked during pausing, the next frame is
played and paused.
When the previous image button is clicked during a pause, the previous
frame is played and paused.
Note:
When playing H.264/MPEG-4 images, some frames of recorded images
will not be displayed. Reverse frame-by-frame playback will be per-
formed with the refresh interval set for the camera.
Fast forward/
Fast reverse button
Playback speed of fast playback will be changed in the following order each
time the fast forward button is clicked:
Step2 (Approx. 2x) → Step3 (Approx. 4x) →
Step4 (Approx. 8x) → Step5 (Approx. 16x) →
Step6 (Approx. 32x) → Step7 (Approx. 48x)
Playback speed of fast reverse playback will be changed in the following
order each time the fast reverse button is clicked:
Step2 (Approx. 2x) → Step3 (Approx. 4x) →
Step4 (Approx. 8x) → Step5 (Approx. 16x) →
Step6 (Approx. 32x) → Step7 (Approx. 48x)
The playback speed will be displayed on the playback status display.
Note:
When playing H.264/MPEG-4 images, some frames of recorded images
will not be displayed. Except for x2 fast playback speed, fast playback/
fast reverse playback will be performed with the refresh interval set for
the camera.
Next record/
Previous record but-
ton
Clicking the next record button will play back the next later recording.
Clicking the previous record button will play back the next earlier recording.
When there is no next/previous recorded image to be skipped to, the cur-
rent playback will continue.
[Go to last] button
When this button is pressed, playback from the top of the latest recorded
data will start. Recording will start from a point approx. 10 seconds before
the playback start time of the latest recorded images.
Playback status dis-
play
The status of the recorder such as the playback status, pause status etc.
will be displayed.
The playback speed will be displayed in fast forward/fast reverse mode.
