K-Config – Getting to Know K-Config

For example, to place the Triggers window at the left, drag the Triggers window to the left drag and drop tool. The

Triggers window appears at the left:

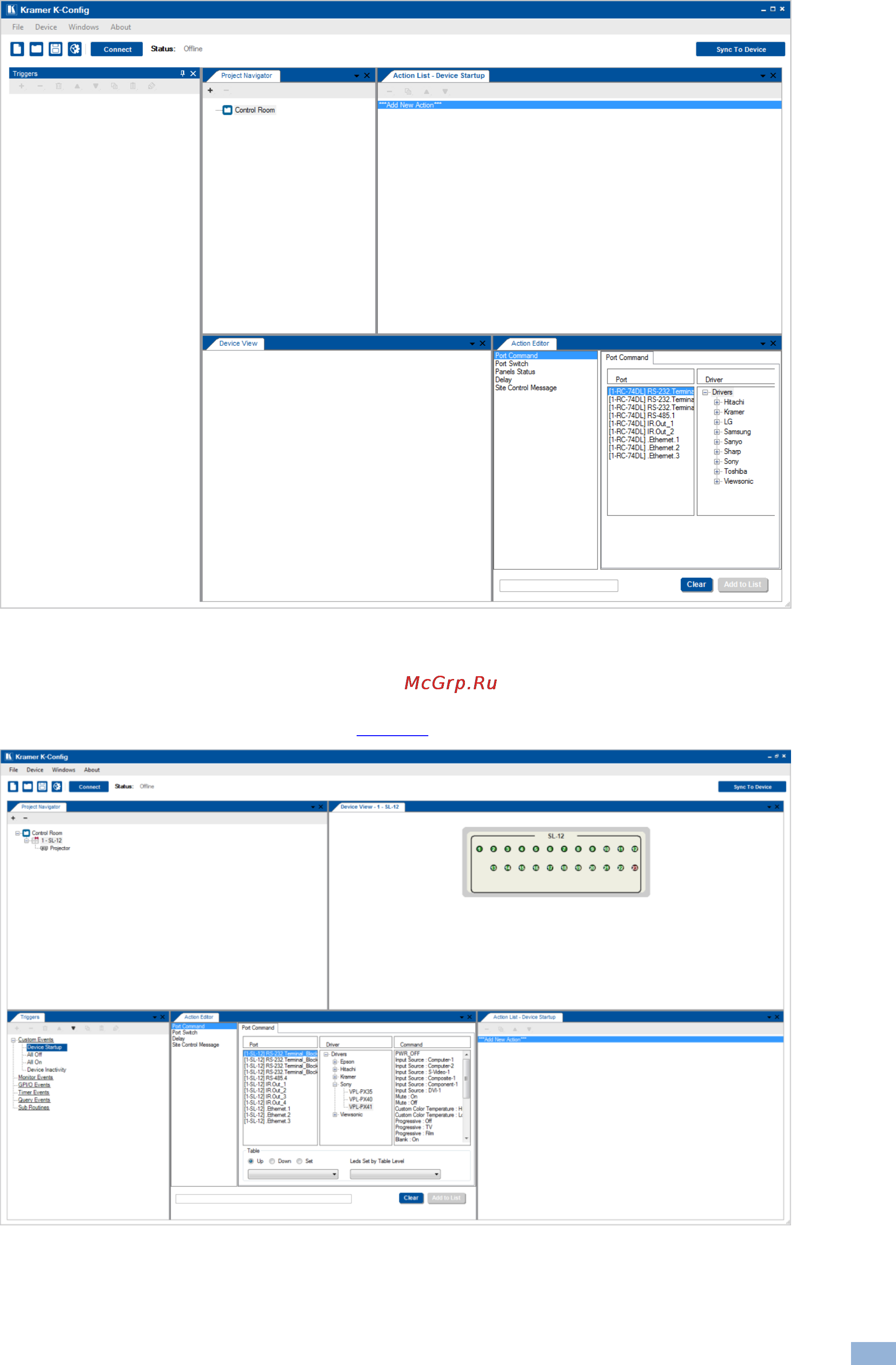

Figure 23: Triggers Window Repositioned

In the same way you can move the selected window to be in a separate first/last row, between other windows in the

row or the first/last column. The main screen can have an appearance that is different than the default layout and is

suited for your use, as shown in the example in Figure 24:

Figure 24: Customized window setup
