K-Config – The Driver Manager – Getting Started

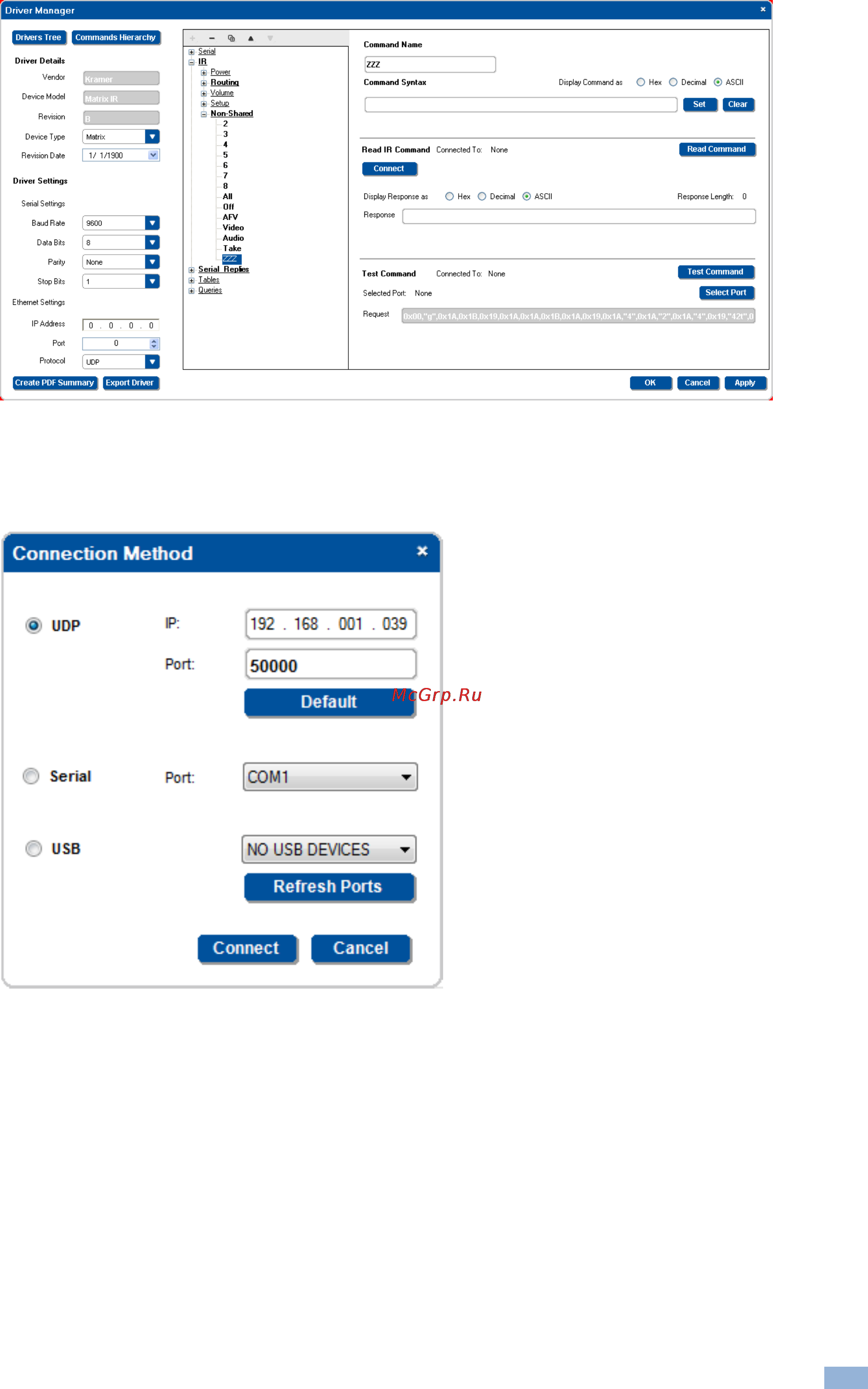

Figure 71: IR Commands – Adding a Command

4. Click the Read Command or the Connect button.

The Connection Method window appears.

If you choose to click the connect button, once connected you will have to click the Read Command button

Figure 72: IR Commands - Connect to the Device

5. Click Connect.
