K-Config - The Driver Manager – Getting Started

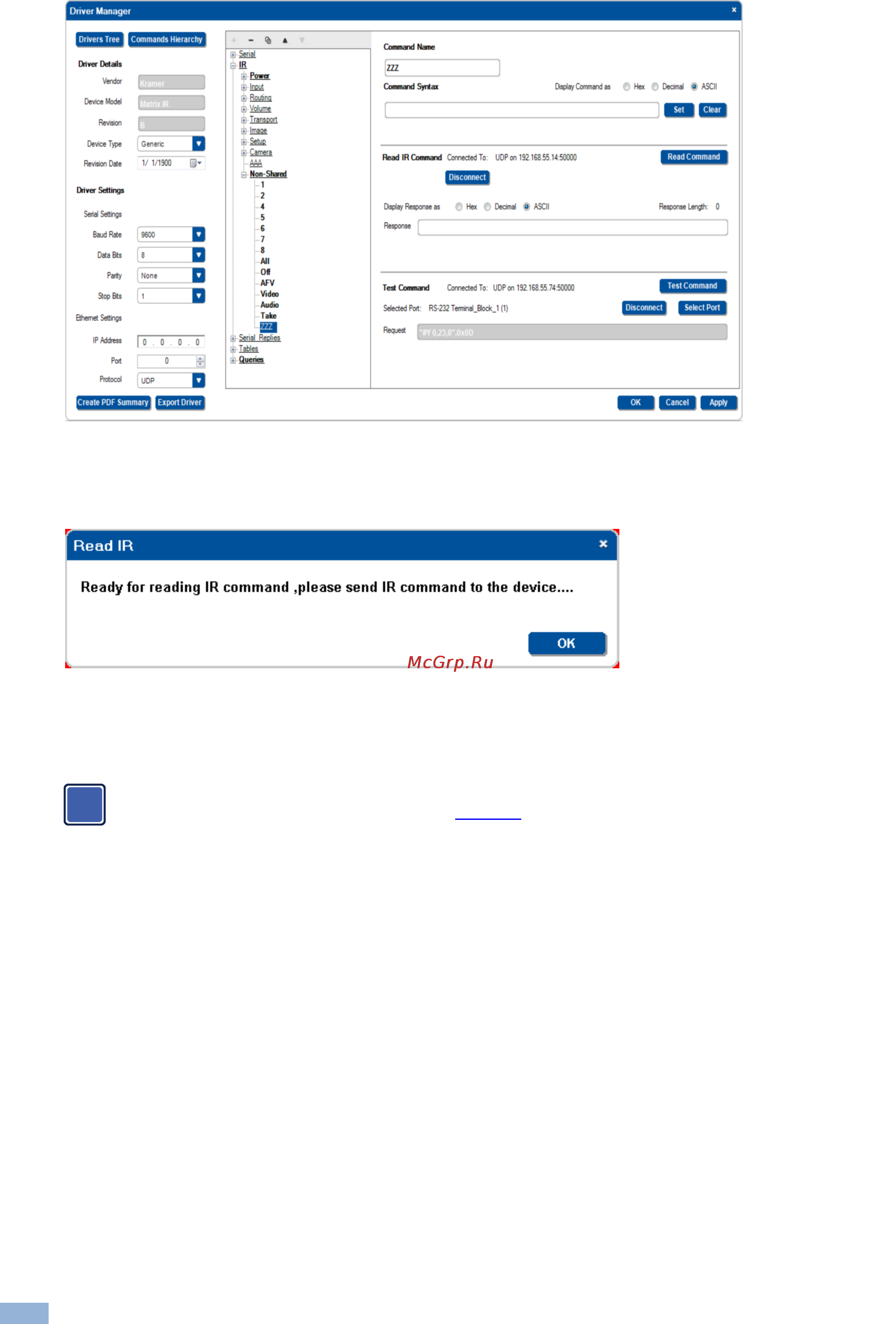

Figure 73: IR Commands – The device is Connected

6. Click the Read Command button.

The following window appears.

7. Click OK.

After clicking this button, you have a 1 minute period to point the remote control to the IR learner to let it

capture the command.

We recommend that you perform IR learning with minimum lights on. Any other light source may distort

the IR command obtained (as in the example in Figure 74).

8. Click the remote towards the IR sensor until the command string is obtained:
