TP-145, TP-146 - Overview
7
#
Feature
Function
8
AUDIO OUT ANALOG 3.5mm Mini
Connector
Connect to the analog audio acceptor
9
AUDIO OUT S/PDIF RCA Connector
Connect to the digital audio acceptor
10
12V DC Connector
Connect to the supplied +12V DC power
adapter. Center pin positive
3.3 Internal Polarity and Sync Mode Switches
Figure 3 defines the internal horizontal and vertical polarity switches of the
TP-146.
Note: Open the TP-146 unit to gain access to the Hs and Vs polarity and video
selection switches which are located on the lower part of the printed circuit board
next to the ON LED. After setting the switches, close the TP-146.

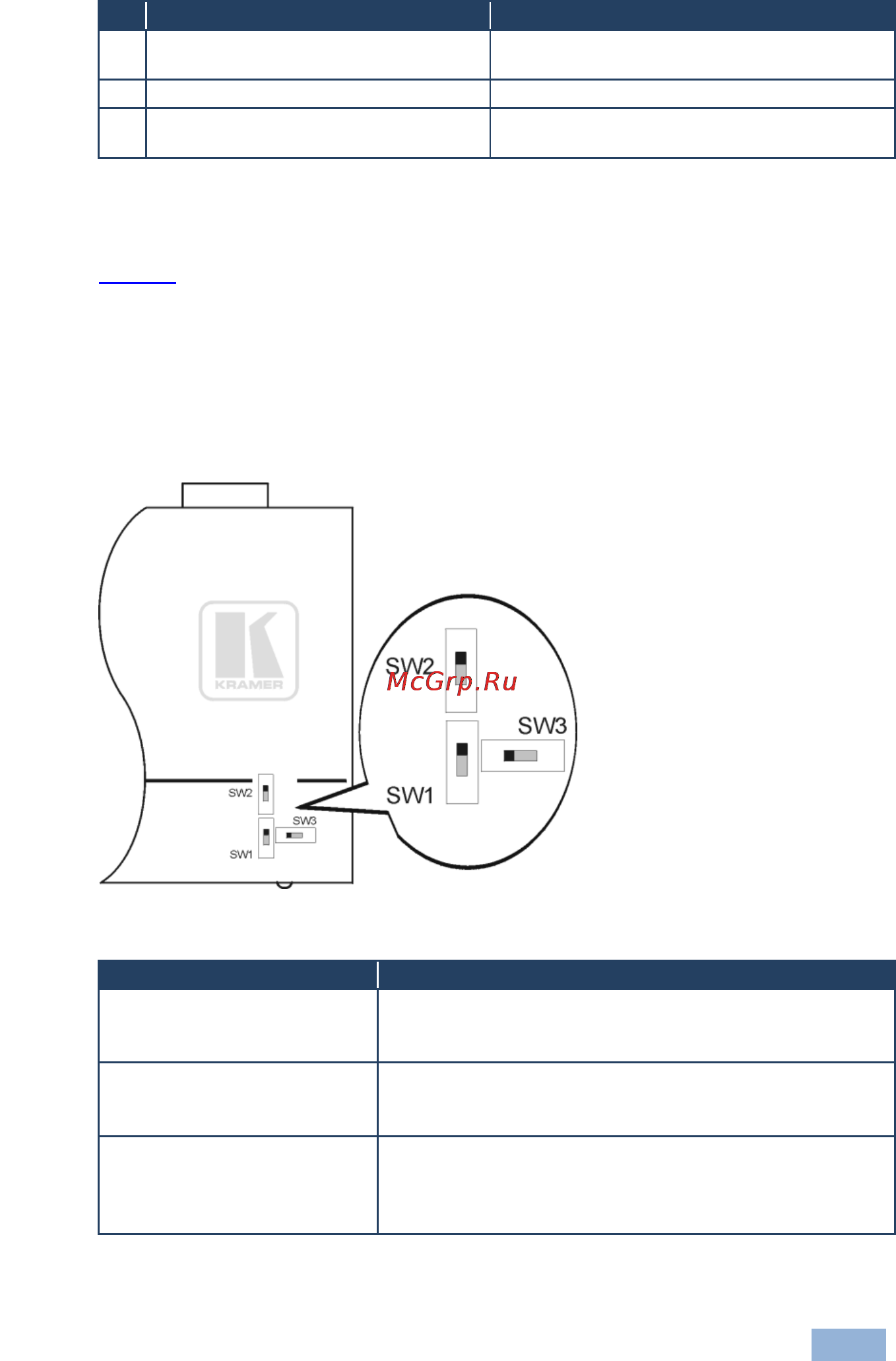

Figure 3: TP-146 Internal Polarity Switches
Switch/Jumper
Function
SW1 Horizontal Sync Switch
Slide up to set the H Sync to positive polarity
Slide down to set the H Sync to negative polarity
Default = up (positive polarity)
SW2 Vertical Sync Switch
Slide up to set the V Sync to positive polarity
Slide down to set the V Sync to negative polarity
Default = up (positive polarity)
SW3 Video Selection Switch
Slide left to set the video to RGBHV/VGA
Slide right to set the video to component/composite video
with sync
Default = left (RGBHV/VGA video)
