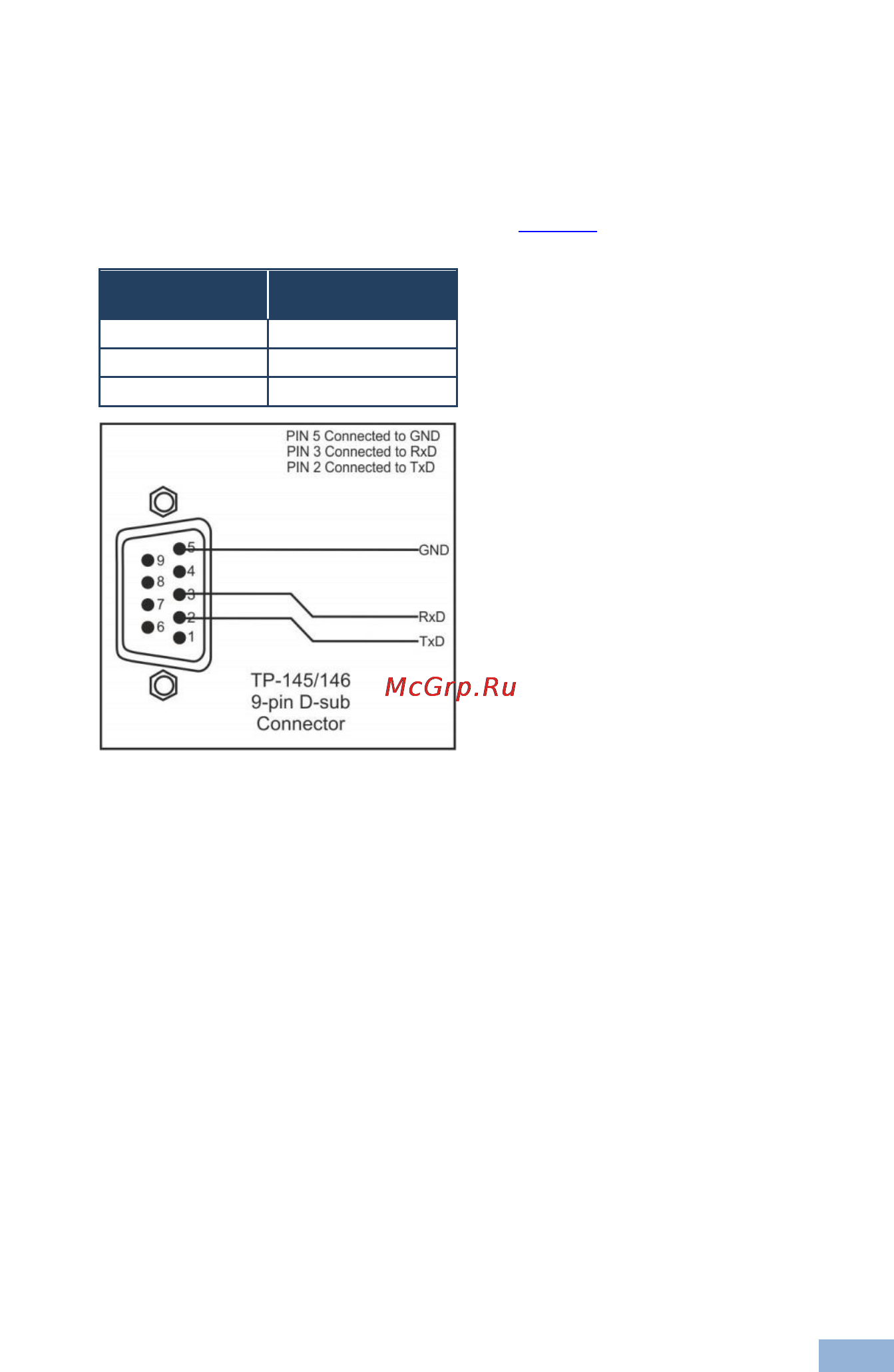

![Kramer TP-146 [14/19] Transmitting via rs 232](/views2/1152899/page14/bge.png)
TP-145, TP-146 - Connecting the TP-145, TP-146
11
4.1 Transmitting via RS-232
It is possible to transmit data (for example, using a PC) between the TP-145 and
TP-146 via the RS-232 terminal block.
Prepare an RS-232 cable with a 9-pin D-sub connector at one end, and a 3-pin
terminal block at the other end as defined in Figure 5.
Terminal Block
9-pin D-sub
Connector
TxD
Pin 2
RxD
Pin 3
GND
Pin 5
Figure 5: RS-232 Pinout Connection
