TP-145, TP-146 - Overview
5
stream before transmission, thus preserving the quality of the audio source
signals. Commands and data can flow in both directions simultaneously via the
RS-232 interface, allowing status requests and control of the destination unit.
When the TP-145 is connected to a display device and the EDID CAPTURE
button is pressed, the TP-145 reads and stores the EDID (Extended Display
Identification Data) from the display device. This prevents the problem whereby a
source (for example, a PC), fails to output video because it was not connected to
the display device when attempting to read its EDID.

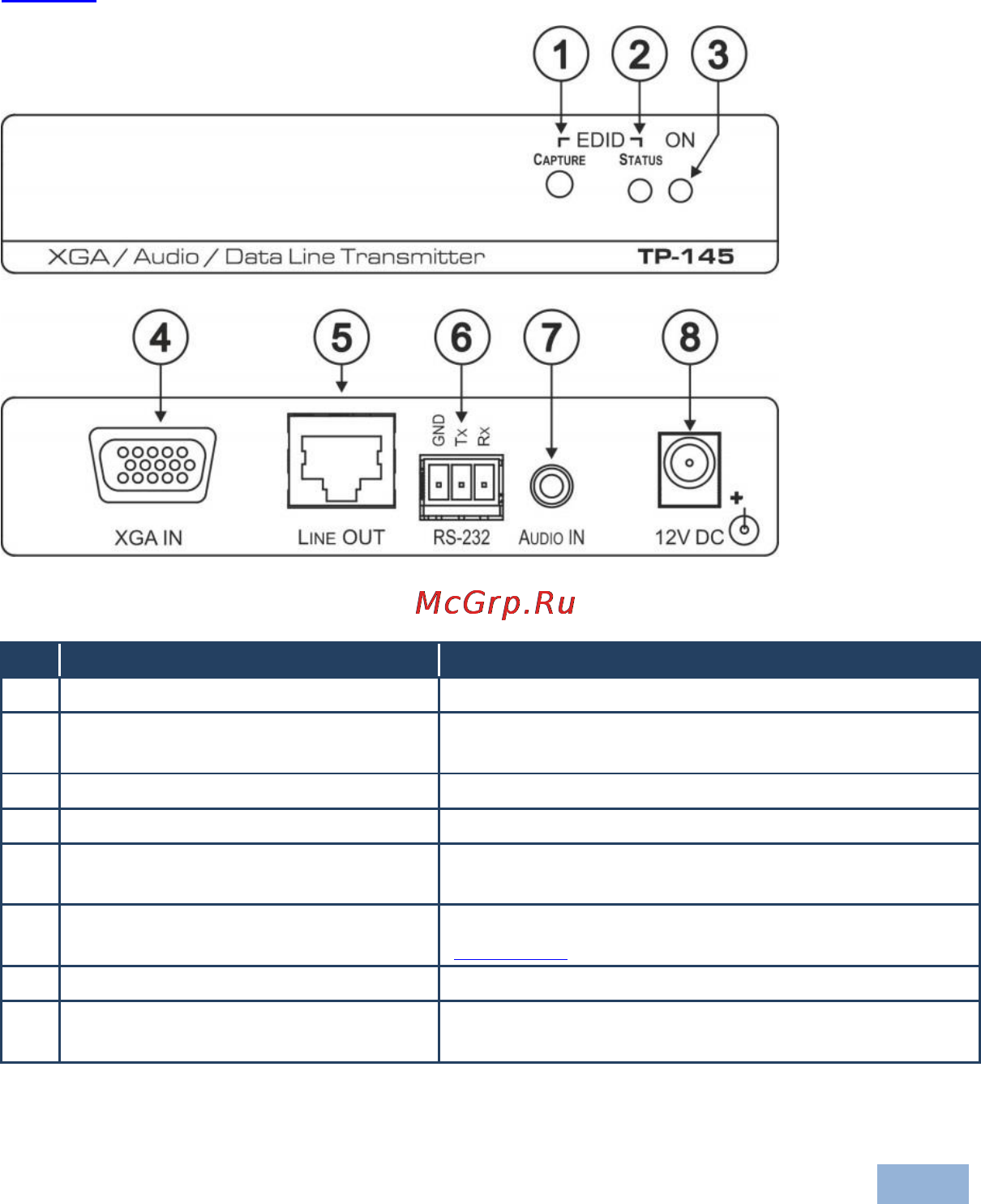

Figure 1 defines the TP-145 UXGA/Audio/Data Line Transmitter.
Figure 1: TP-145 UXGA/Audio/Data Line Transmitter
#
Feature
Function
1
EDID CAPTURE Button
Press to capture the EDID
2
EDID STATUS LED
Lights Green when the EDID has been
successfully captured
3
ON LED
Lights Green when the unit receives power
4
XGA IN 15-pin HD (F) Connector
Connect to the UXGA source
5
LINE OUT RJ-45 Connector
Connect to the LINE IN RJ-45 connector on the
TP-146
6
RS-232 Terminal Block
Connect to the PC or the remote controller (see
Section 4.1)
7
AUDIO IN 3.5mm Mini Connector
Connect to the analog audio source
8
12V DC Power Connector
Connect to the supplied +12V DC power adapter,
center conductor positive
