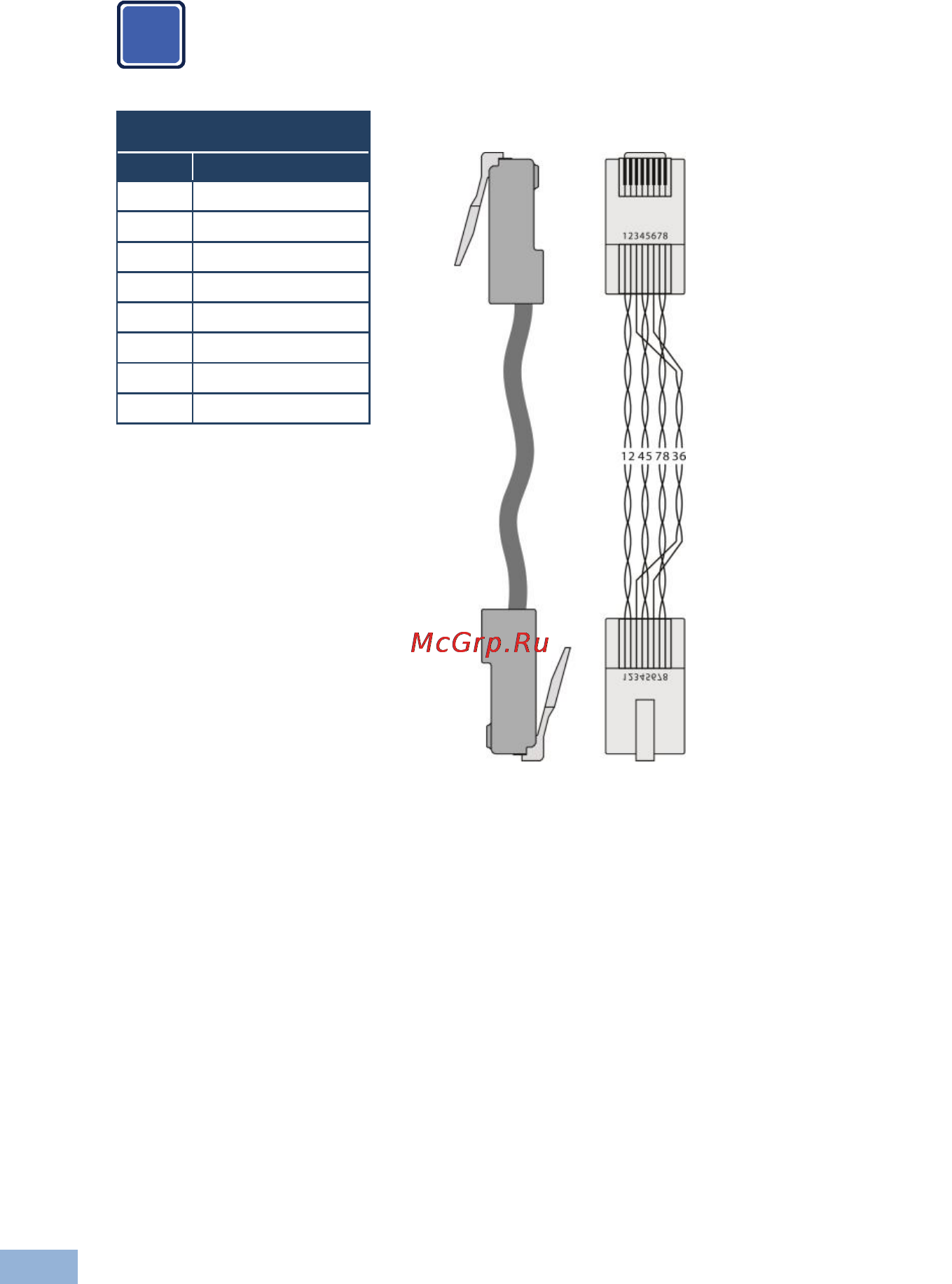

TP-145, TP-146 - Connecting the TP-145, TP-146
4.2 Wiring the TP LINE IN / LINE OUT RJ-45 Connectors
This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45
connectors.
Note, that the cable ground shielding must be connected/soldered to
the connector shield.
EIA /TIA 568B
Figure 6: TP PINOUT
PIN
Wire Color
1
Orange / White
2
Orange
3
Green / White
4
Blue
5
Blue / White
6
Green
7
Brown / White
8
Brown
