TP-145, TP-146 - Overview
3.2 Defining the TP-146 UXGA/Audio/Data Line Receiver
The TP-146 is a high-performance receiver that accepts the computer graphics
signal/audio/control data from the Kramer TP-145 via TP cabling at its RJ-45 LINE
IN input. The TP-146 outputs a computer graphics signal, an unbalanced stereo
analog audio signal, a converted digital audio (S/PDIF) signal, and bi-directional
RS-232 control commands and data. The RS-232 interface makes it possible to
control virtually any device over a transmission range of up to 200m (660ft) with a
Kramer TP-141/145 transmitter over TP cabling. In addition, the TP-146 features:
Level and equalization control for the UXGA signal
The capability to change the polarity of the vertical and horizontal sync signals
24-bit 48kHz S/PDIF digital audio

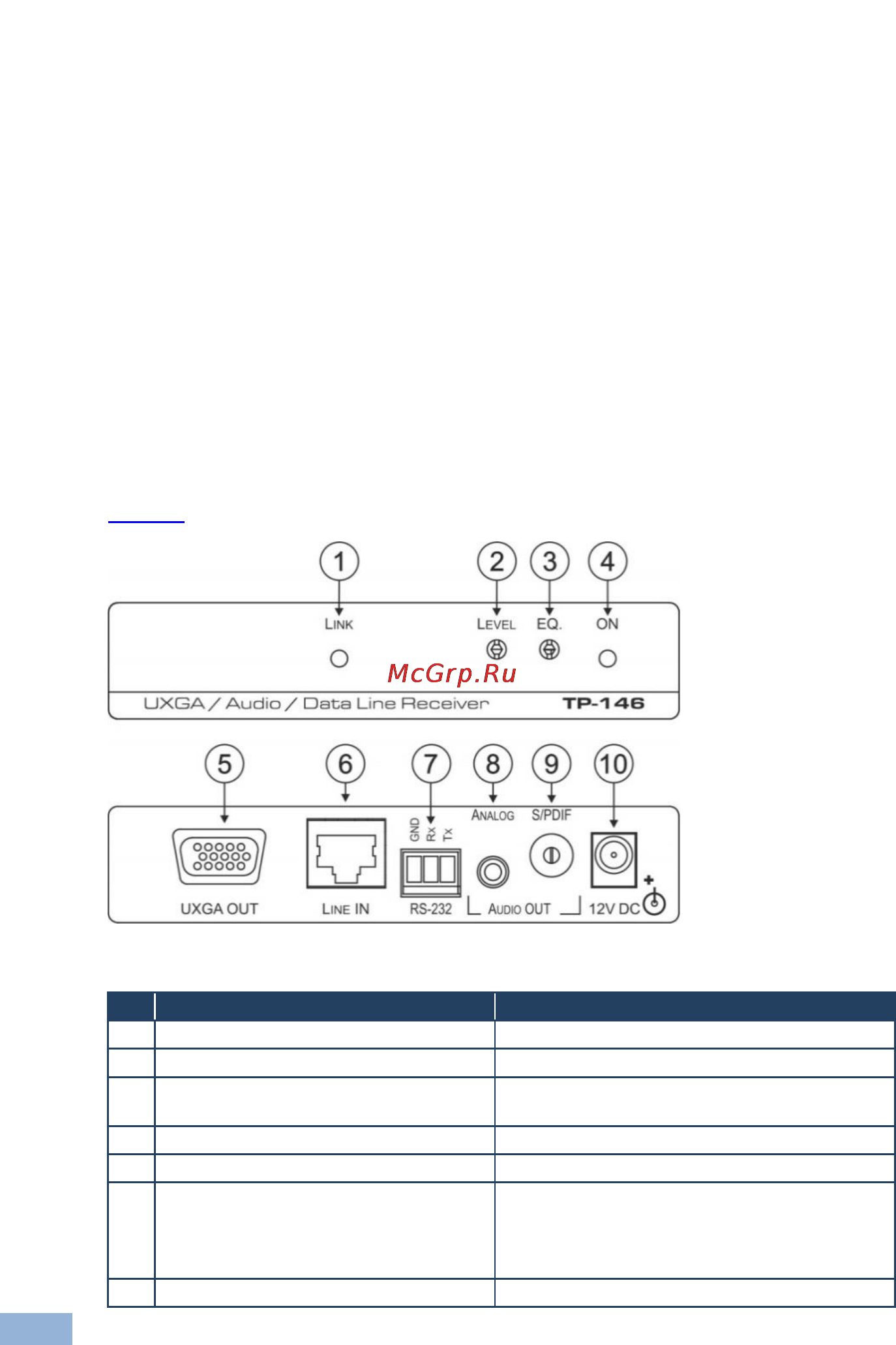

Figure 2 defines the TP-146 UXGA/Audio/Data Line Receiver.
Figure 2: TP-145, TP-146 UXGA/Audio/Data Line Transmitter/Receiver
#
Feature
Function
1
LINK LED
Lights green when a link is established
2
LEVEL Trimmer
Adjusts the output signal level
3
EQ. Trimmer
Adjusts the cable compensation equalization
level
4
ON LED
Lights green when the unit receives power
5
UXGA OUT 15-pin HD (F) Connector
Connect to the UXGA acceptor
6
LINE IN RJ-45 Connector
Connect to the LINE OUT RJ-45 connector on
the TP-145
Using a TP cable with RJ-45 connectors at both
ends (pinout is defined in Figure 6)
7
RS-232 Terminal Block
Connect to the controlled unit
