VP-771 – Overview
9

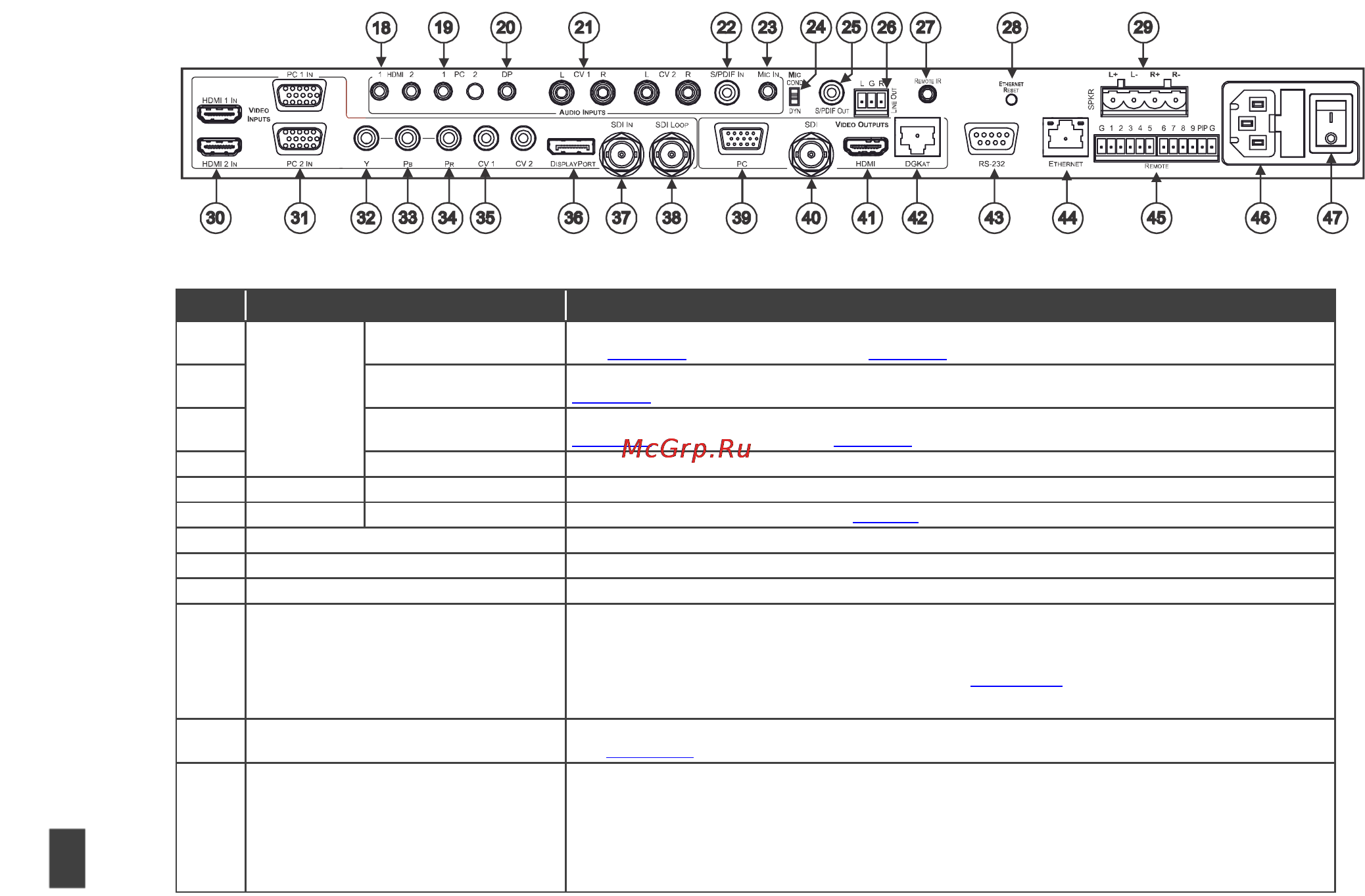

Figure 2: VP-771 Presentation Switcher/Scaler Rear Panel
#
Feature
Function
18
AUDIO IN
Unbalanced
Connectors
HDMI 3.5mm Mini Jack
Connect to an unbalanced audio source for audio takeover of the HDMI 1 and HDMI 2 embedded audio
(see Section 6.3). The pinout is defined in Section 5.3
19
PC 3.5mm Mini Jack
Connect to the unbalanced audio of the computer graphics source (from 1 to 2). The pinout is defined in
Section 5.3
20
DP 3.5mm Mini Jack
Connect to the unbalanced audio source for analog audio takeover of the DisplayPort embedded audio (see
Section 6.3). The pinout is defined in Section 5.3
21
CV (L, R) RCA
Connect to the unbalanced stereo audio of the composite video source (from 1 to 2)
22
S/PDIF IN RCA
Connect to the digital audio source of the component video (Y, Pb, Pr)
23
MIC IN 3.5mm Mini Jack
Connect to a microphone (see pinout in Section 0)
24
COND/DYN MIC DIP-switch
Select between a condenser and a dynamic type microphone
25
S/PDIF OUT RCA Connector
Connect to a digital audio acceptor
26
LINE OUT (L, R) Terminal Block Connector
Connect to the L and R unbalanced stereo audio acceptor
27
REMOTE IR 3.5mm Mini Jack (opening)
Covered by a cap. The 3.5mm
connector at the end of the internal
IR connection cable fits through this
opening
Connects to an external IR receiver unit for controlling the machine via an IR remote controller (instead of
using the front panel IR receiver)
Optional. Can be used instead of the front panel (built-in) IR receiver to remotely control the machine (only if
the internal IR connection cable has been installed), see Section 8.5.1
28
ETHERNET RESET Button
Press while turning power off and then on, to reset the Ethernet settings to their factory default state (see
also Section 12.1)
29
SPKR Terminal Block Connector
Connect to a balanced stereo audio acceptor (speakers)
