VP-771 - The OSD Menu
23
23
6.2.1 Window Customization
Window customization lets you change the size and position of a selected window.
Make sure that you have control over the window that requires customization (Main
Window Control or PiP Window Control). If not, select it via the OSD item in the
Miscellaneous menu, see Section 6.8.
In the following examples, PiP Window Control is selected, but the same procedure
applies to Main Window Control.
Note that you can also customize the window size and position via the
“Y” commands (see Section 13.2) or protocol 3000 (see Section 13.4).
6.2.1.1 Changing the Size of the Main and/or PiP Window
Use the H Width and V Height to change the size of the window using the + and –
buttons on the front panel or remote control transmitter (as illustrated in Figure 10).

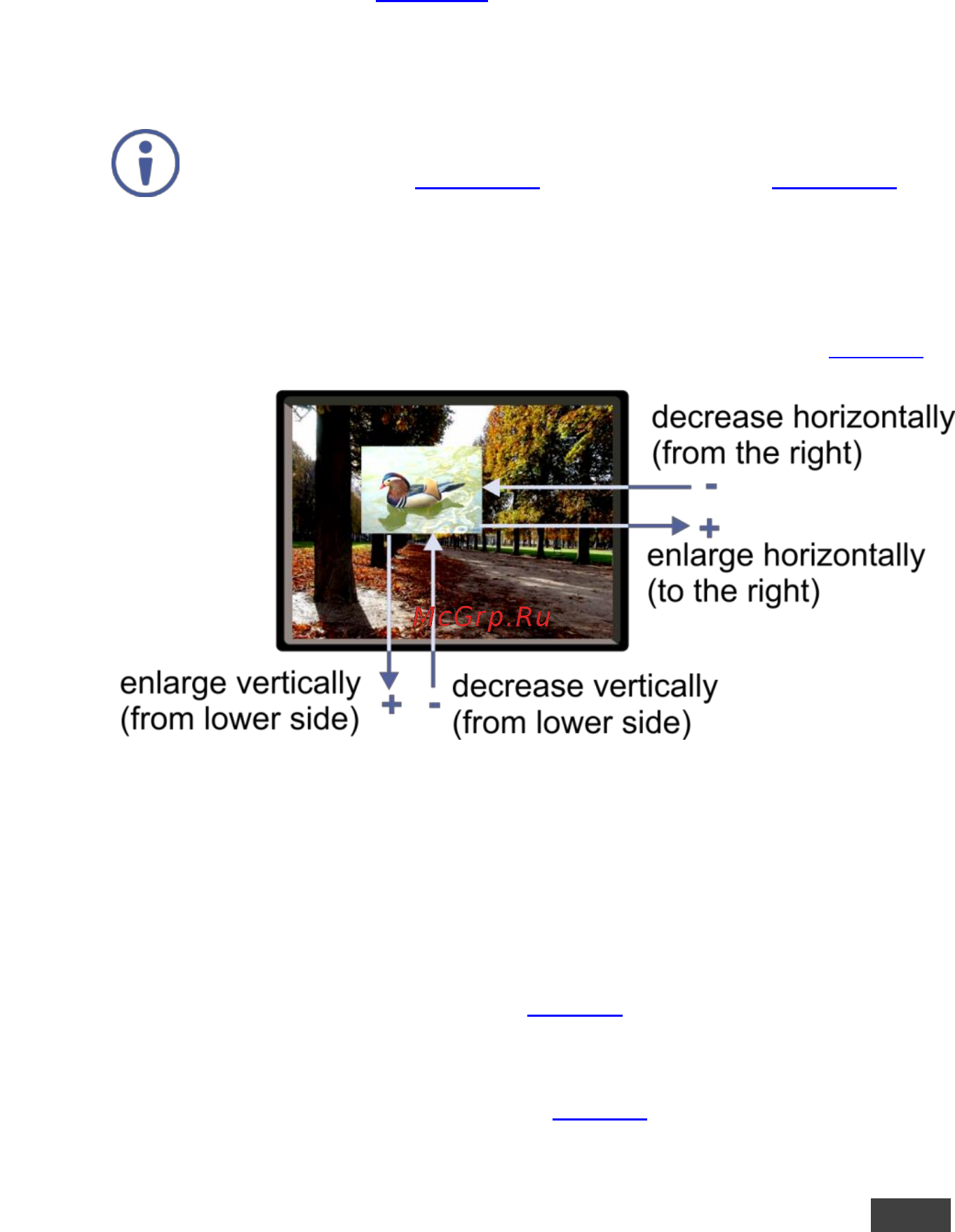

Figure 10: Changing the Size of the Window
To change the size of the window, do the following:
1. Check that window control is set as required (for example, PiP Window
Control).
2. Select Window Customization (see Figure 14).
3. Select H width (an OSD slide bar appears) and press + to increase the
width, or – to decrease the width, see Figure 11.
The following example shows how to increase the width of the window
