VP-771 - Controlling the VP-771
53
53
8.3.3.1 Connecting the Ethernet Port Directly to a PC
You can connect the Ethernet port of the VP-771 directly to the Ethernet port on
your PC using a crossover cable with RJ-45 connectors.
This type of connection is recommended for identifying the VP-771
with the factory configured default IP address.
After connecting the VP-771 to the Ethernet port, configure your PC as follows:
1. Click Start > Control Panel > Network and Sharing Center.
2. Click Change Adapter Settings.
3. Highlight the network adapter you want to use to connect to the device and
click Change settings of this connection.

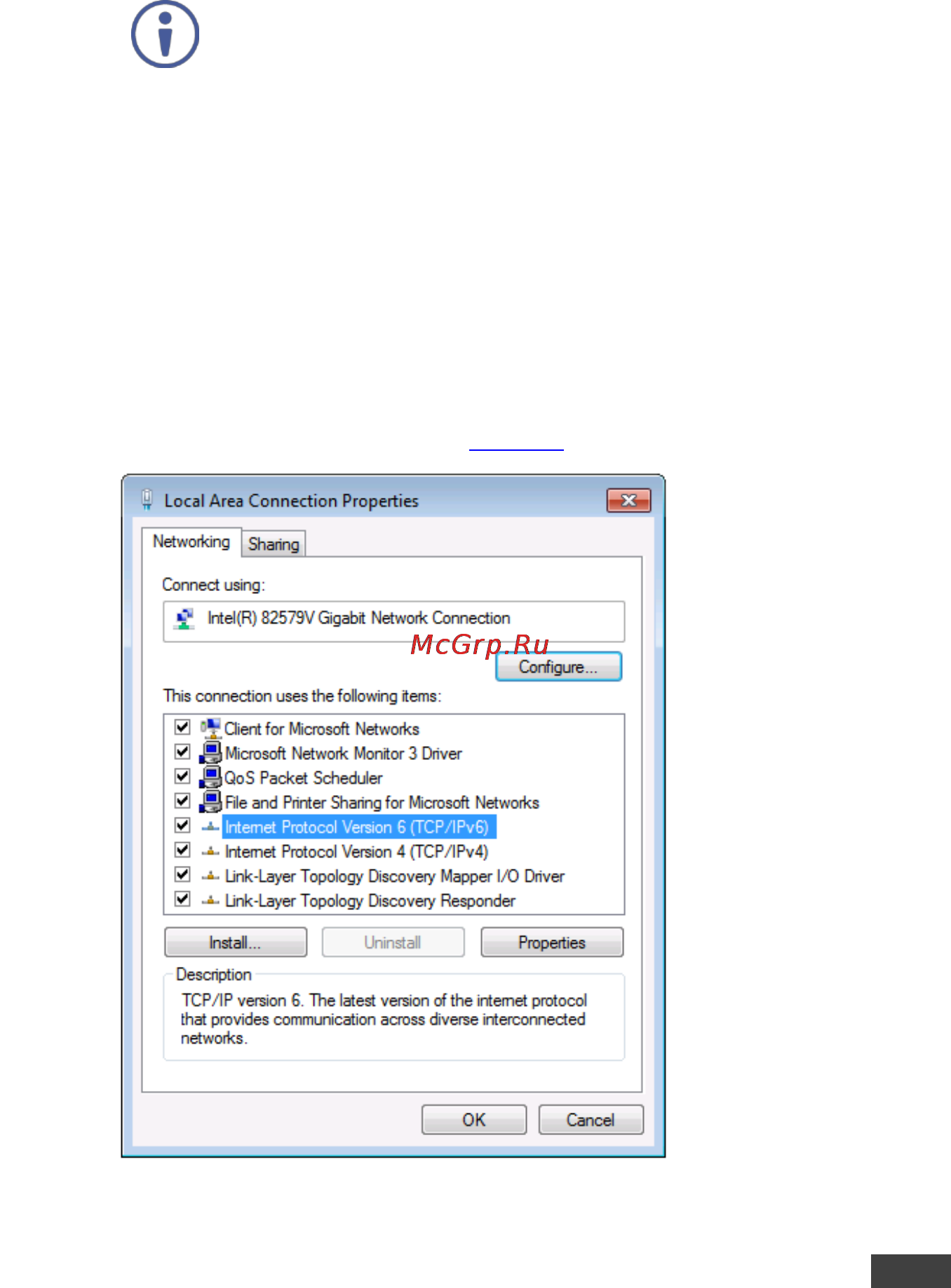

The Local Area Connection Properties window for the selected network
adapter appears as shown in Figure 32.
Figure 32: Local Area Connection Properties Window
