ASRock fatal1ty z170 gaming k6+ [101/113] Trusted computing
![ASRock fatal1ty z170 gaming k6+ [101/113] Trusted computing](/views2/1159552/page101/bg65.png)
English
93
Fatal1ty Z170 Gaming K6+ Series / Fatal1ty Z170 Gaming K6 Series

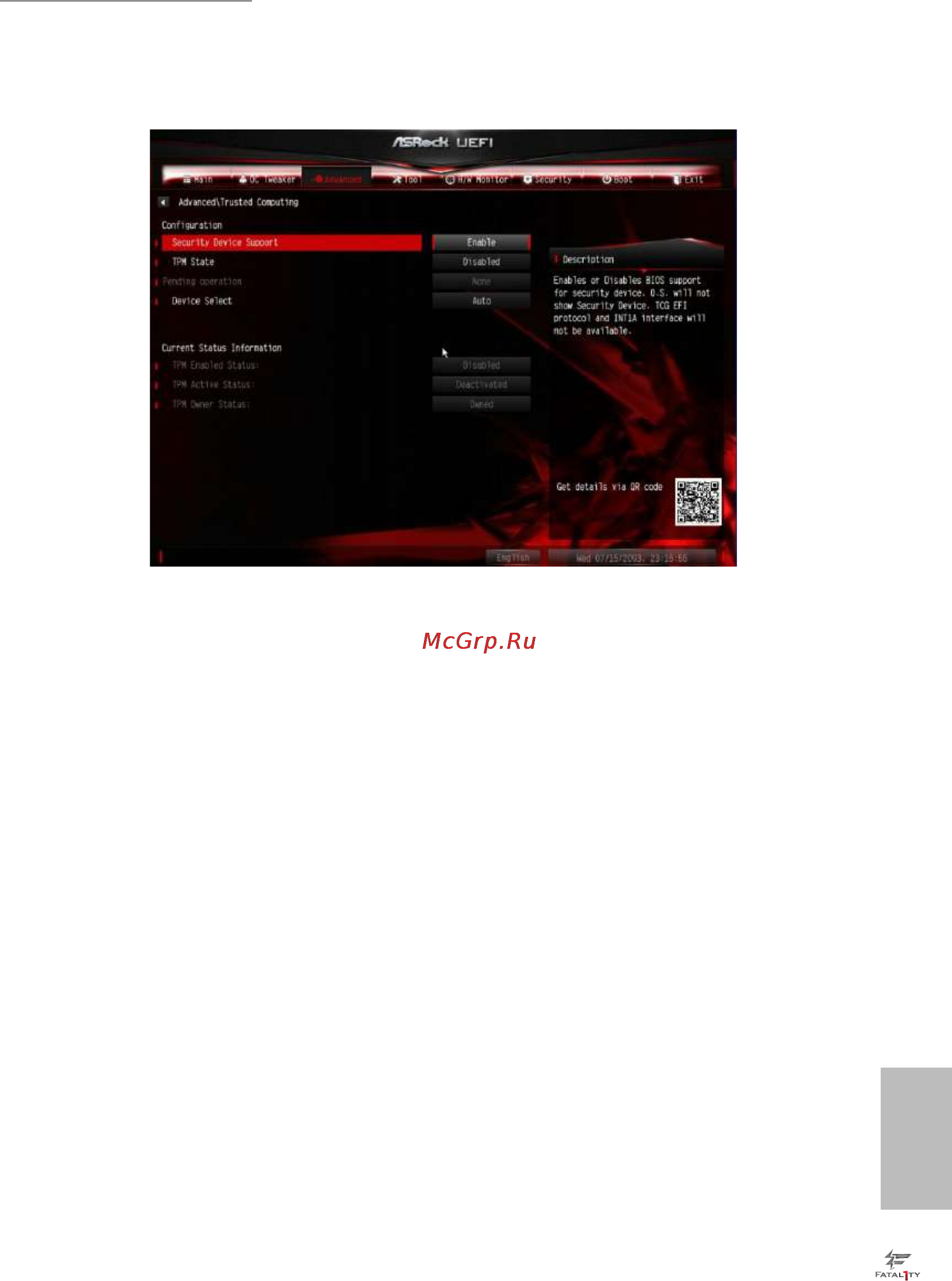

4.4.8 Trusted Computing
Security Device Support
Enable or disable BIOS support for security device.
