ASRock fatal1ty z170 gaming k6+ [96/113] Intel thunderbolt 2
![ASRock fatal1ty z170 gaming k6+ [96/113] Intel thunderbolt 2](/views2/1159552/page96/bg60.png)
English
88

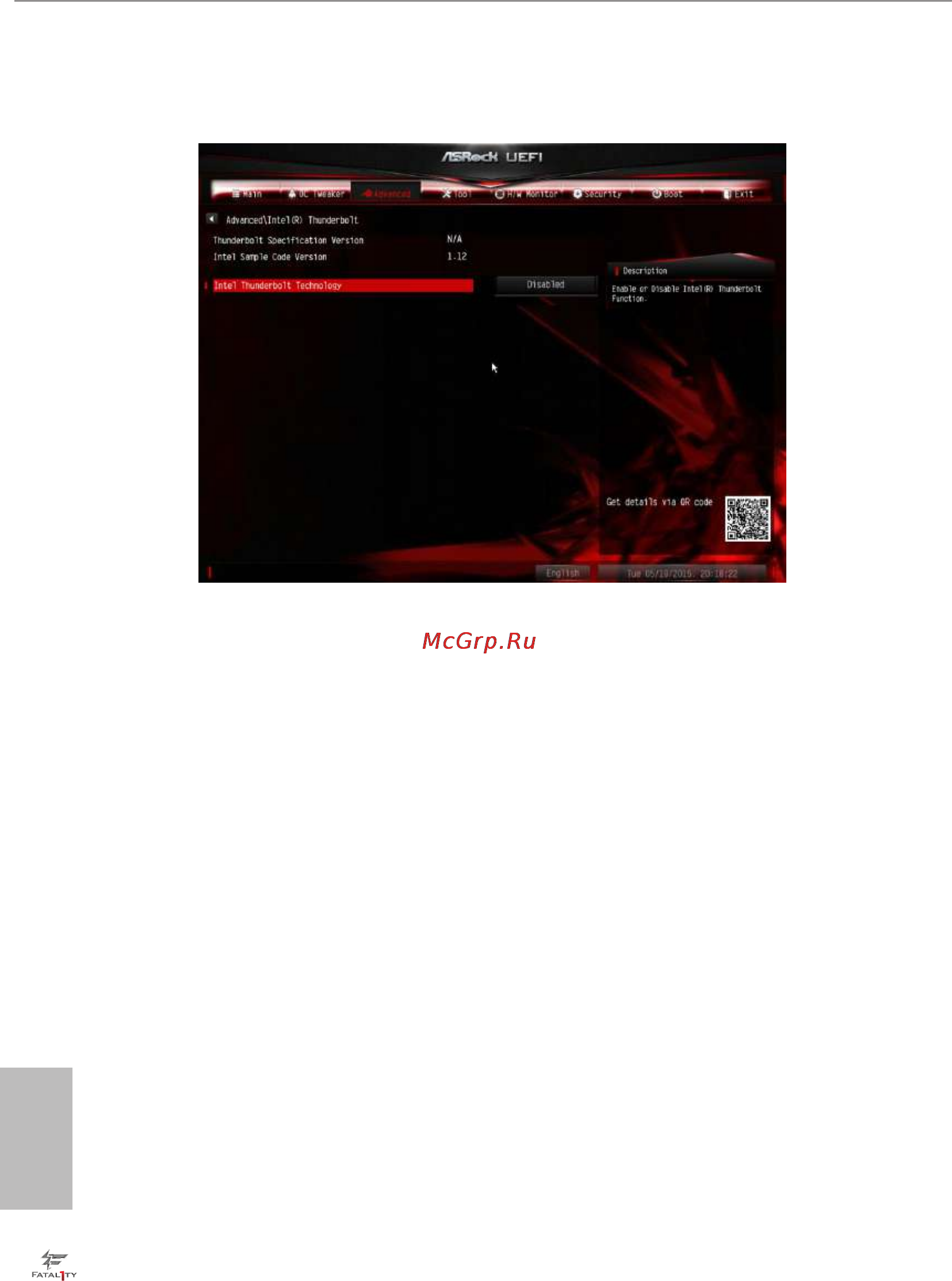

4.4.4 Intel® Thunderbolt™ 2
Intel(R) Thunderbolt Technonogy
Enable/Disable the Intel(R) underbolt function.
