English
69
Fatal1ty Z170 Gaming K6+ Series / Fatal1ty Z170 Gaming K6 Series

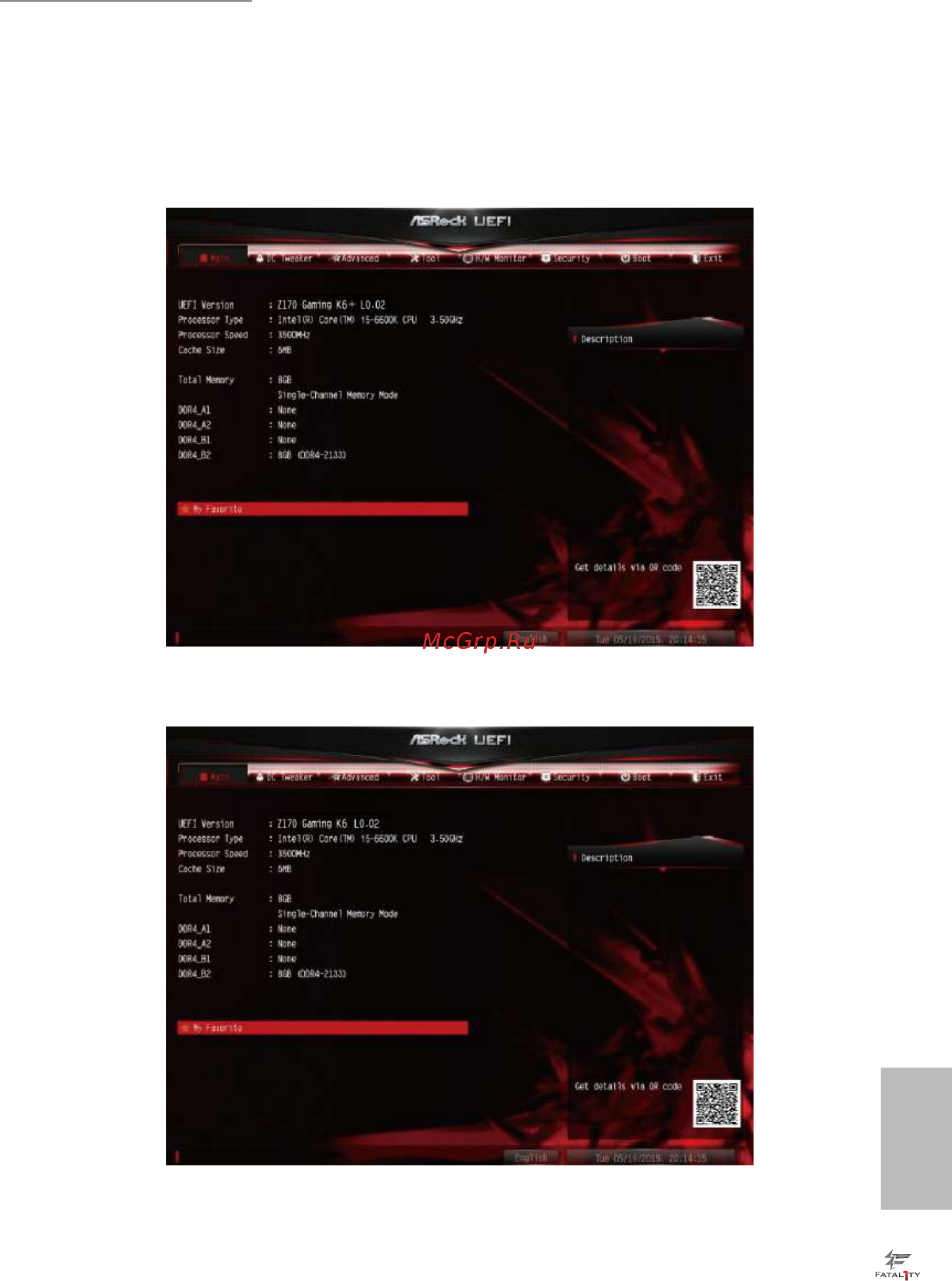

4.2 Main Screen
When you enter the UEFI SETUP UTILITY, the Main screen will appear and
display the system overview.
Fatal1ty Z170 Gaming K6+ Series:
Fatal1ty Z170 Gaming K6 Series:
Favorite
Display your collection of BIOS items. Press F5 to add/remove your favorite items.
