ASRock fatal1ty z170 gaming k6+ [97/113] Super io configuration
![ASRock fatal1ty z170 gaming k6+ [97/113] Super io configuration](/views2/1159552/page97/bg61.png)
English
89
Fatal1ty Z170 Gaming K6+ Series / Fatal1ty Z170 Gaming K6 Series

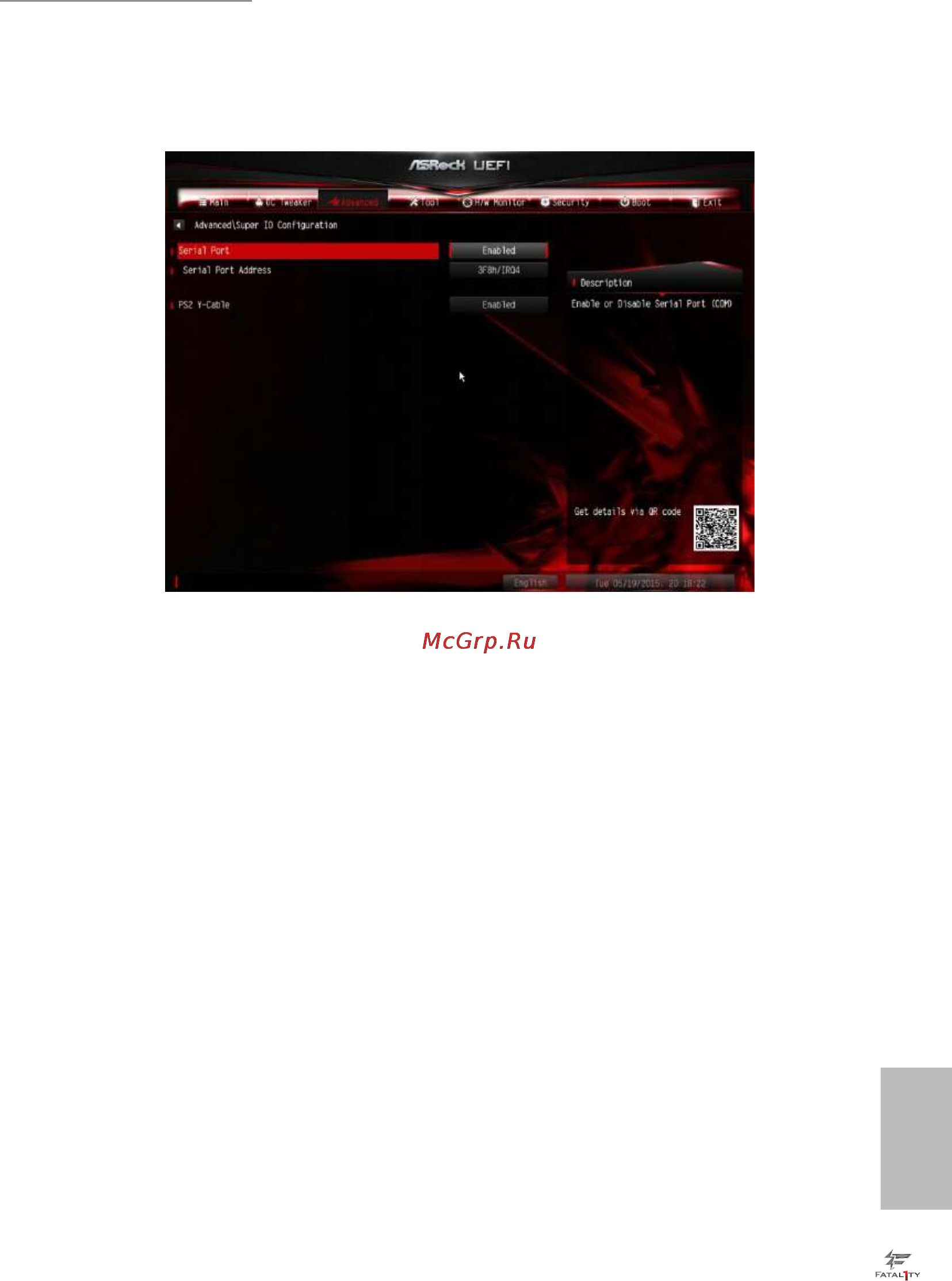

4.4.5 Super IO Conguration
Serial Port
Enable or disable the Serial port.
Serial Port Address
Select the address of the Serial port.
PS2 Y-Cable
Enable the PS2 Y-Cable or set this option to Auto.
