English
9
Fatal1ty Z170 Gaming K6+ Series / Fatal1ty Z170 Gaming K6 Series

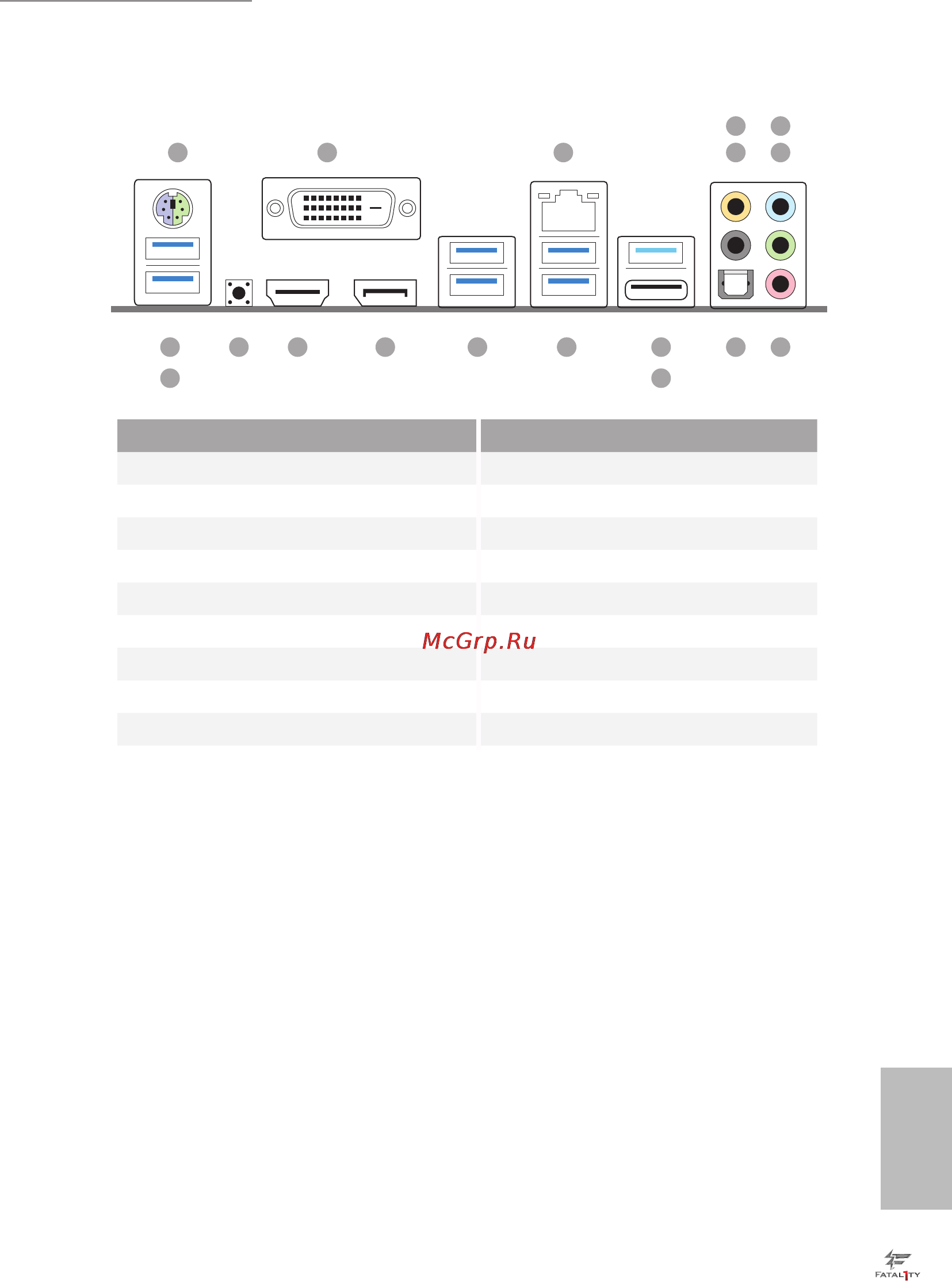

1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 10 USB 3.1 Type-A Port (USB31_TA_1)
2 DVI-D Port 11 USB 3.1 Type-C Port (USB31_TC_1)
3 LAN RJ-45 Port* 12 USB 3.0 Ports (USB3_34)
4 Central / Bass (Orange) 13 USB 3.0 Ports (USB3_12)
5 Rear Speaker (Black) 14 DisplayPort 1.2
6 Line In (Light Blue) 15 HDMI Port
7 Front Speaker (Lime)** 16 Clear CMOS Switch
8 Microphone (Pink) 17 Fatal1ty Mouse Port (USB3_5)
9 Optical SPDIF Out Port 18 USB 3.0 Ports (USB3_6)
1
8910
11
17
18
1213141516
2 3 5
4
7
6
