English
62

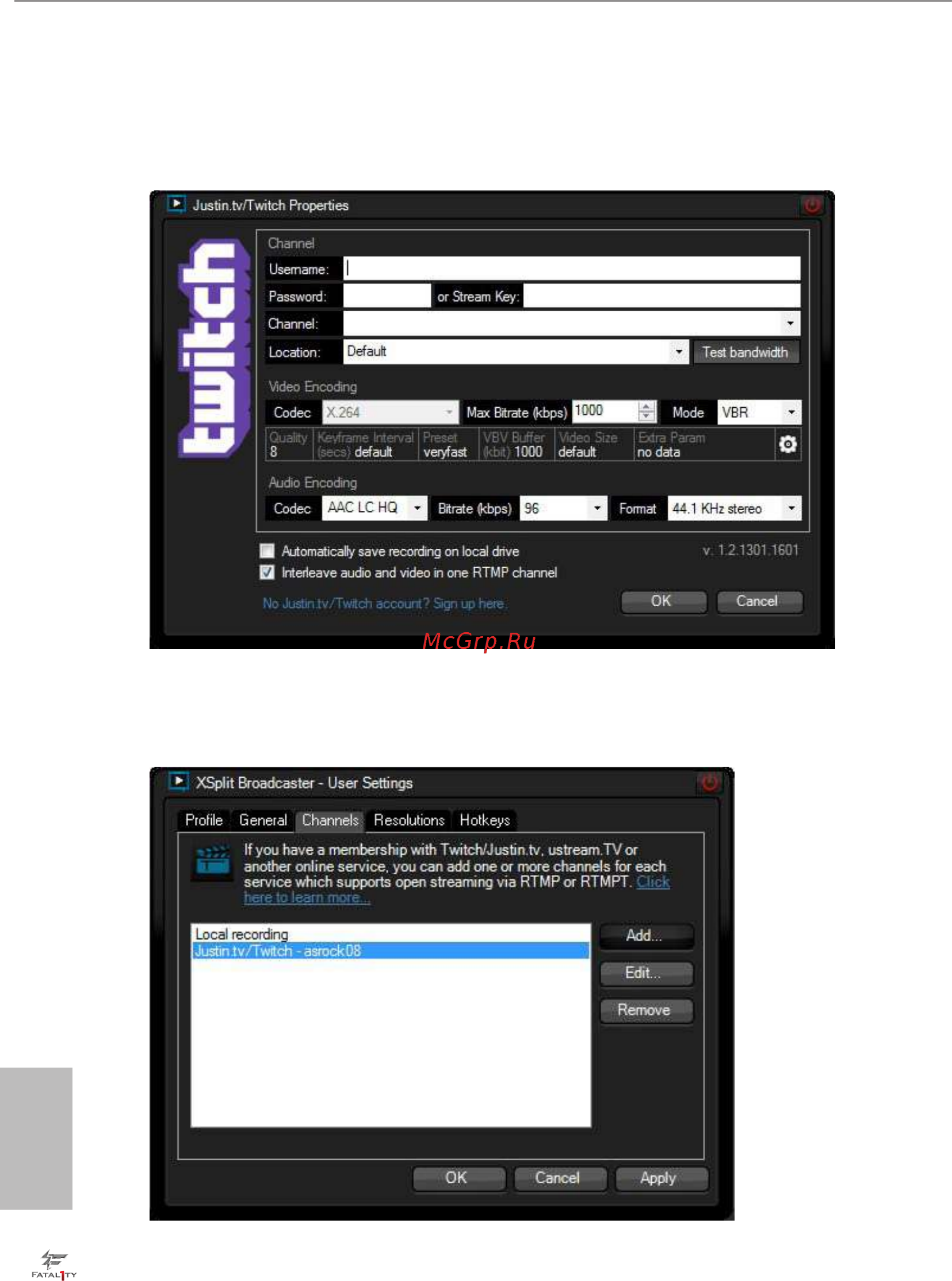

Step 6
Fill in your platform's Username and Password.
Based on your needs, congure the Video and Audio Encoding settings. Click OK.
Step 7
e channel then appears in your broadcast list. Click Apply and OK to save the
settings.
