English
48
Performance

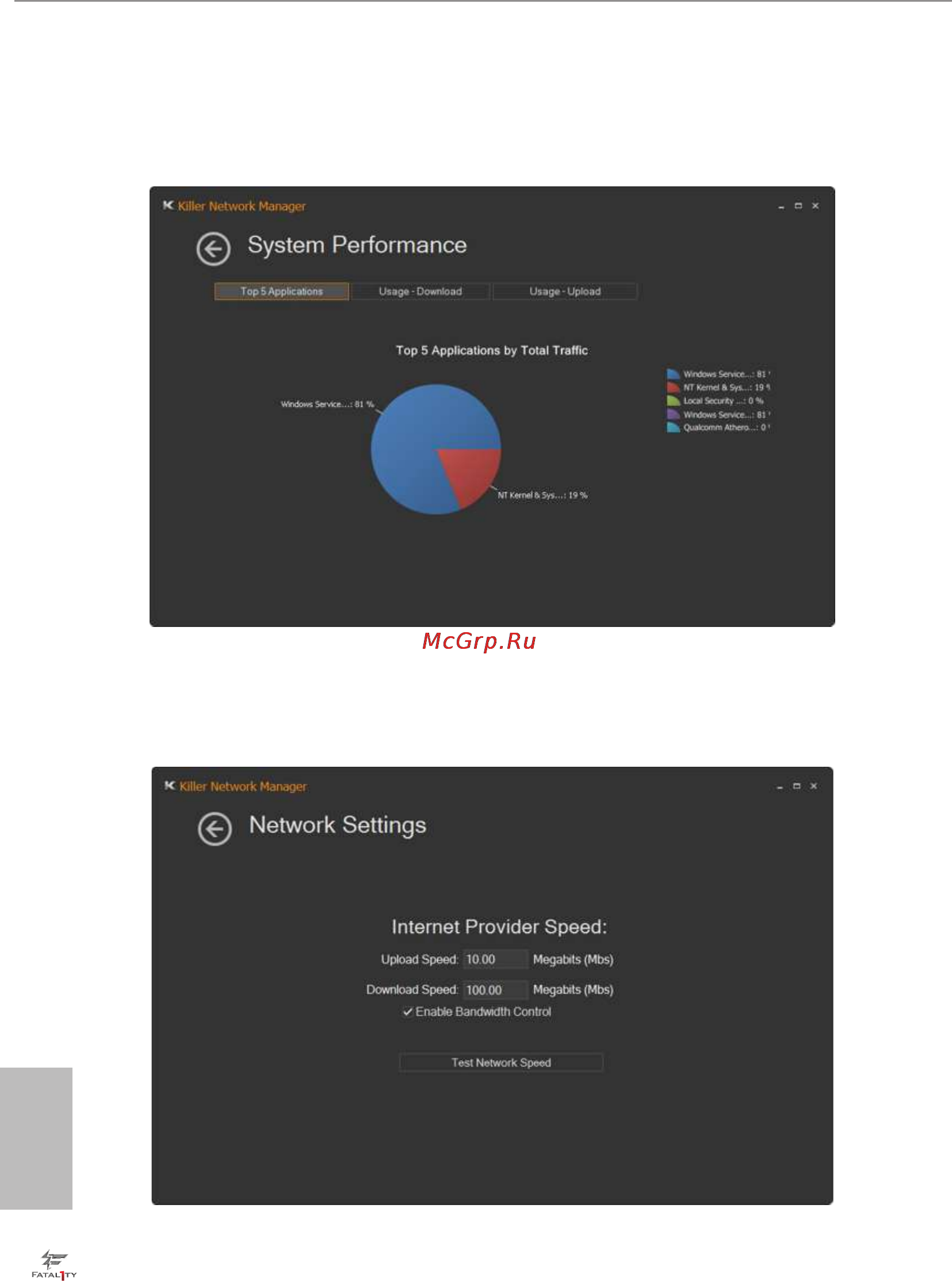

Performance allows you to view in real time your system performance and current
network utilization for download and upload trac.
Network
Network allows you to set your preferred upload/download speeds and test the
network speed.
* You must have Adobe Flash Player installed to run the network speed test.
