Fatal1ty Z170 Gaming K6+ Series / Fatal1ty Z170 Gaming K6 Series

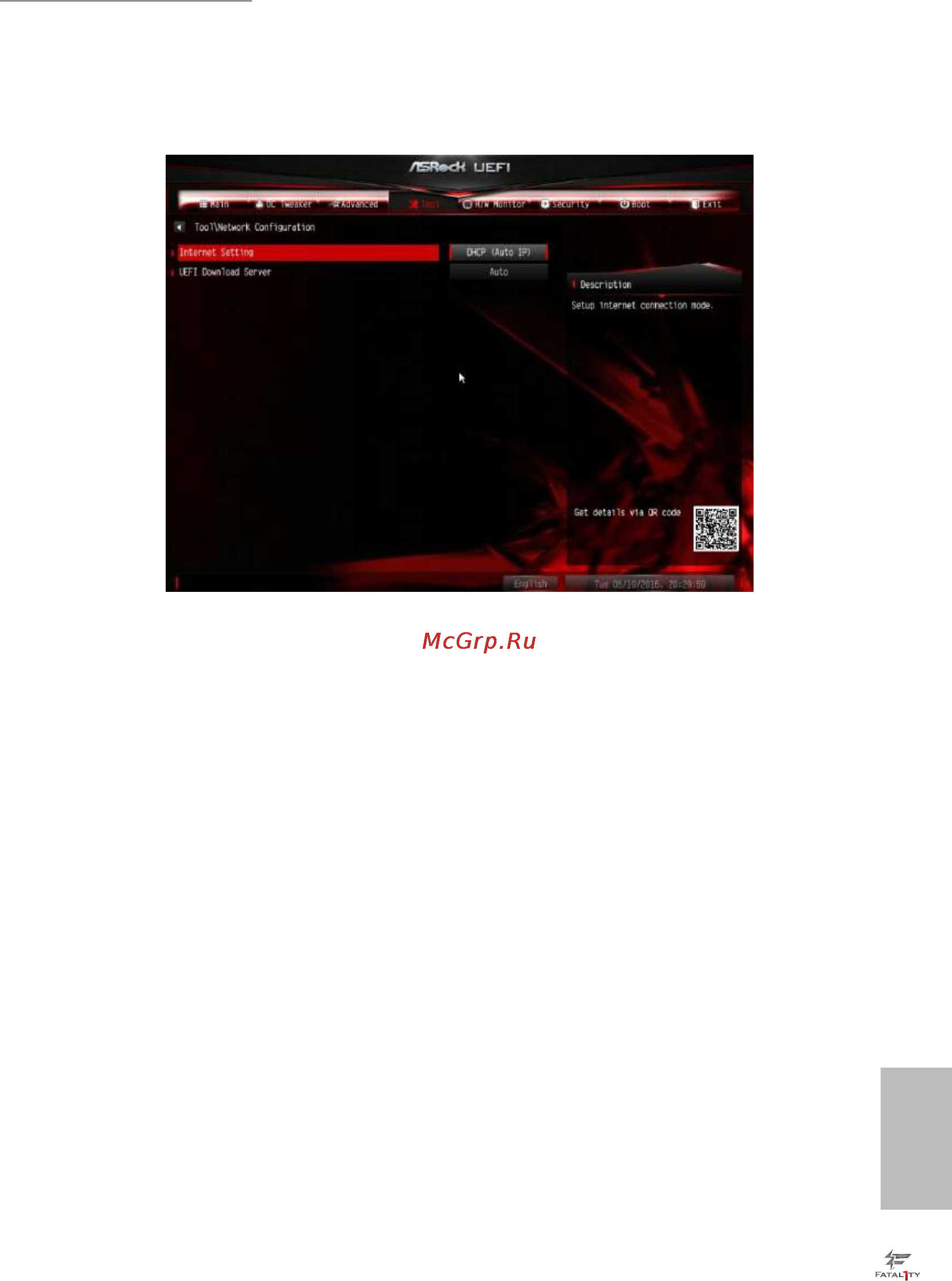

Network Conguration
Use this to congure internet connection settings for Internet Flash.
Internet Setting
Enable or disable sound eects in the setup utility.
UEFI Download Server
Select a server to download the UEFI rmware.
