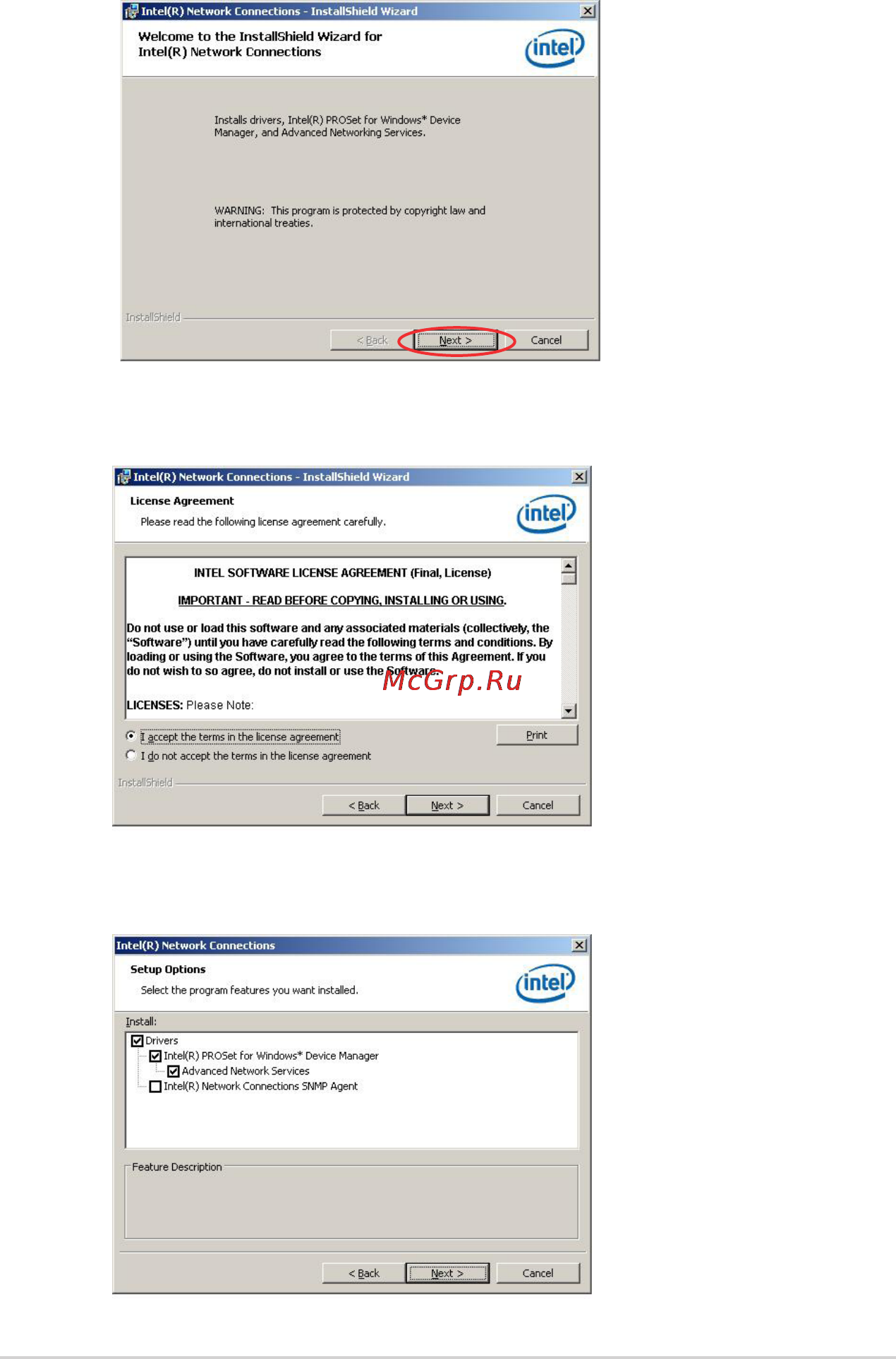

6-18 Chapter 6: Driver installation
5. Click
Next
when the
Intel(R) Network Connections–InstallShield Wizard
window appears.
6. Toggle
I accept the terms in the license agreement
and click
Next
to
continue.
7. Click the
Intel(R) PROSet for Windows Device Manager
box, and then click
Next
to start the installation.
