2-26 Chapter 2: Hardware information
2.7 Connectors

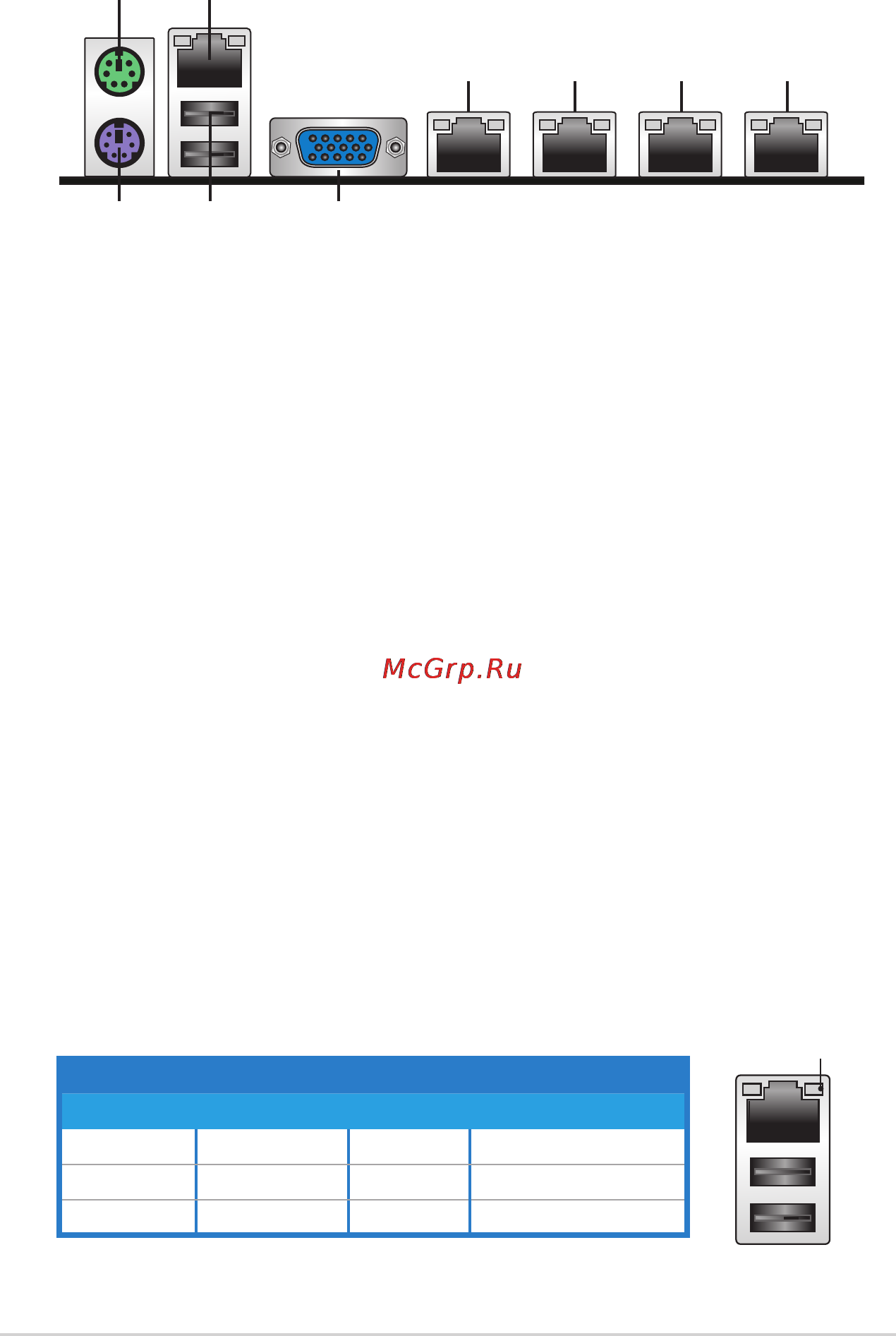

2.7.1 Rear panel connectors
1. PS/2 mouse port (green).
This port is for a PS/2 mouse.
2. DM_LAN 1 (RJ-45) port.
This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub for dedicated BMC Mamagement
function. Refer to the table below for the DM_LAN1 and LAN port LED
indications.
3. LAN 1 (RJ-45) port.
This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
4. LAN 2 (RJ-45) port.
This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
5. LAN 3 (RJ-45) port .
This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
6. LAN 4 (RJ-45) port .
This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
7. PS/2 keyboard port (purple).
This port is for a PS/2 keyboard.
8. USB 2.0 ports 1 and 2.
These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0 devices.
9.
Video Graphics Adapter port.
This port is for a VGA monitor or other VGA-
compatible devices.
1 2
3 4 5
7 8 9
6
DM_LAN1 port LED indications
DM LAN port
SPEED
LED
ACT/LINK
LED
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
Orange Linked Orange 100 Mbps connection
Blinking Data activity Green 1 Gbps connection
