Asus z9pe-d16 [31/184] System memory

ASUS Z9PE-D16 2-13

2.4 System memory

2.4.1 Overview

The motherboard comes with eight (per CPU) Double Data Rate 3 (DDR3) Dual

Inline Memory Modules (DIMM) sockets.

A DDR3 module has the same physical dimensions as a DDR2 DIMM but is

notched differently to prevent installation on a DDR2 DIMM socket. DDR3 modules

are developed for better performance with less power consumption.

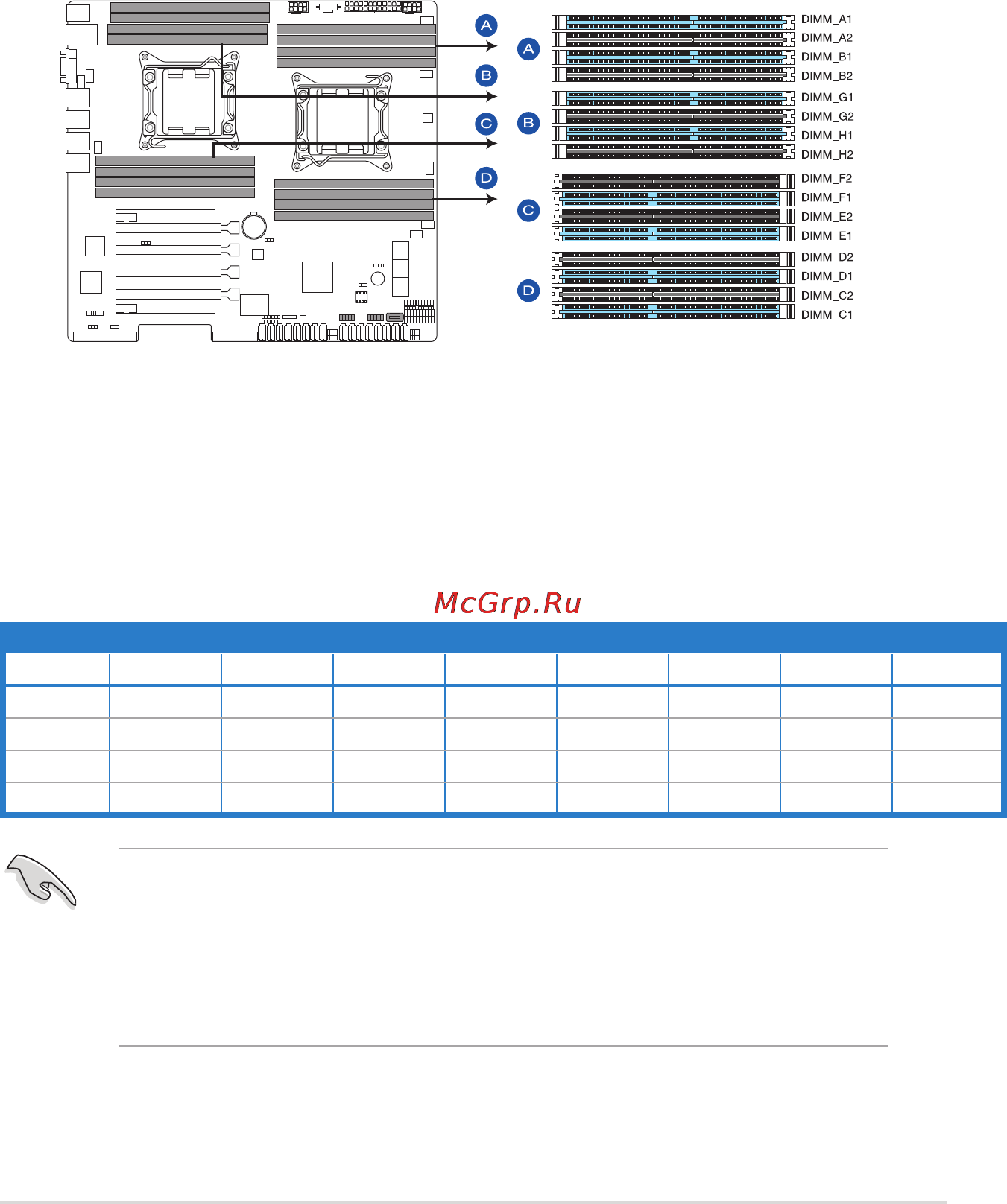

The gure illustrates the location of the DDR3 DIMM sockets:

2.4.2 Memory Congurations

You may install 1GB, 2GB, 4GB, 8GB, 16GB and 32GB* RDIMMs or

1GB, 2GB,

4GB and 8GB* with ECC/Non-ECC UDIMMs or

8GB, 16GB and 32GB* LR-DIMMs into

the DIMM sockets using the memory congurations in this section.

1 CPU Conguration (must on CPU1)

DIMM_A2 DIMM_A1 DIMM_B2 DIMM_B1 DIMM_C2 DIMM_C1 DIMM_D2 DIMM_D1

1 DIMMs

2 DIMMs

X X

4 DIMMs

X X X X

8 DIMMs

X X X X X X X X

• *Refer to ASUS Server AVL for latest update.

• Start installing the DIMMs from slot A1 and B1 (light blue).

• Always install DIMMs with the same CAS latency. For optimum

compatibility, it is recommended that you obtain memory modules from the

same vendor.
