ASUS Z9PE-D16 2-27
LAN port LED indications
LAN port
SPEED
LED
ACT/LINK
LED
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
Green Linked Orange 100 Mbps connection
Blinking Data activity Green 1 Gbps connection
1. The actual data transfer rate depends on the speed of SAS hard disks
installed.
2. Please install the SAS device starting from the gray connectors.

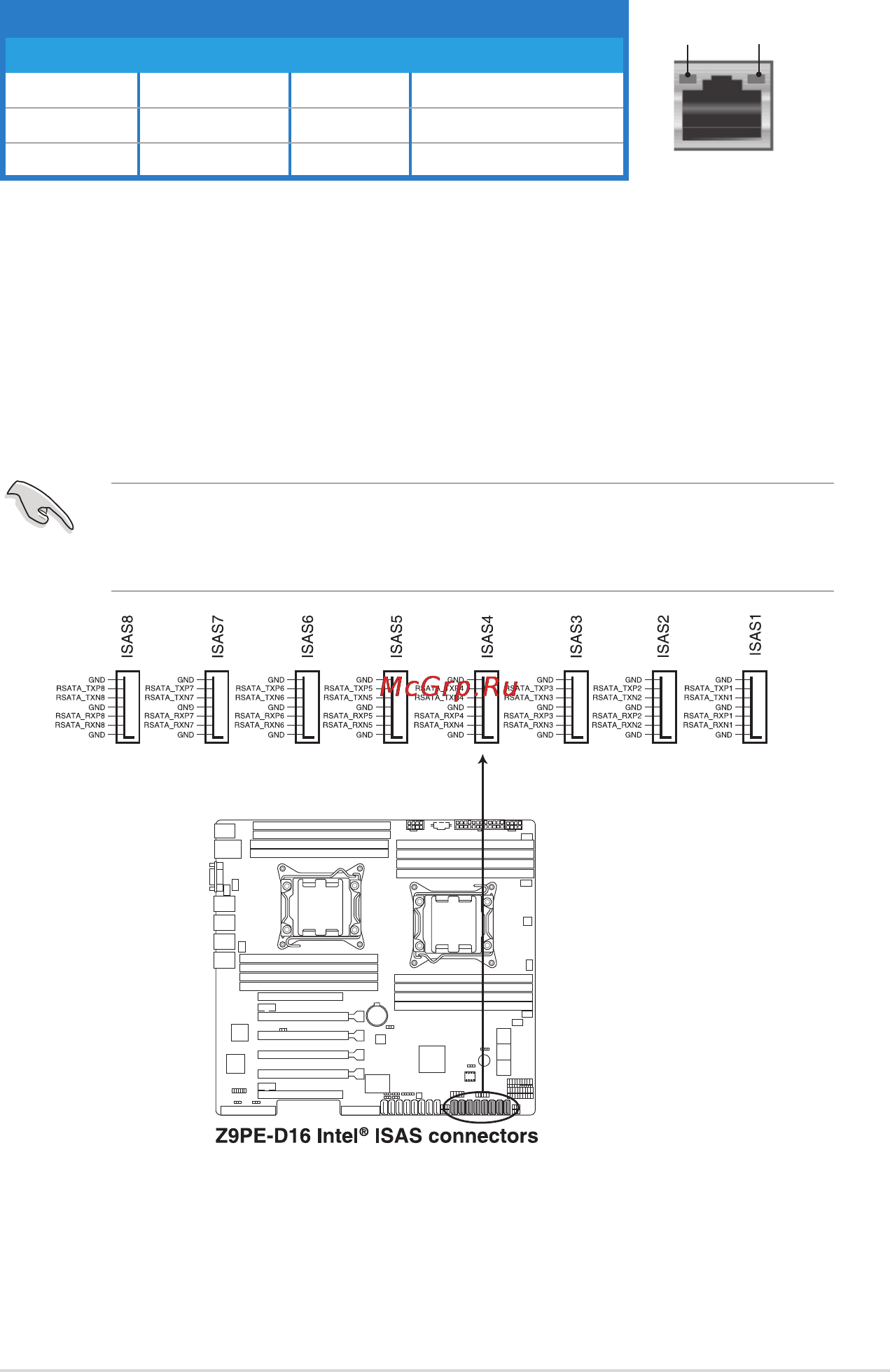

2.7.2 Internal connectors
1. ISAS connectors (7-pin ISAS1–4 [Gray], 7-pin ISAS5-8 [Black])
Supported by the Intel
®
ASRK module, these connectors are for the SAS signal
cables for SAS hard disk drives that allows up to 3Gb/s of data transfer rate.
If you installed SAS hard disk drives, you can create a RAID 0, RAID 1, RAID
10, or RAID 5(ASRK #2 / #5 / #6 / #9 supported only) conguration.
