ASUS Z170I PRO GAMING
1-13
1. PS/2 Mouse/Keyboard combo port. This port connects to a PS/2 mouse or PS/2
keyboard.
2 DisplayPort. This port connects a display monitor or a home-theater system.
3. LAN (RJ-45) port.ThisportallowsGigabitconnectiontoaLocalAreaNetwork(LAN)
through a network hub.
LAN port LED indications

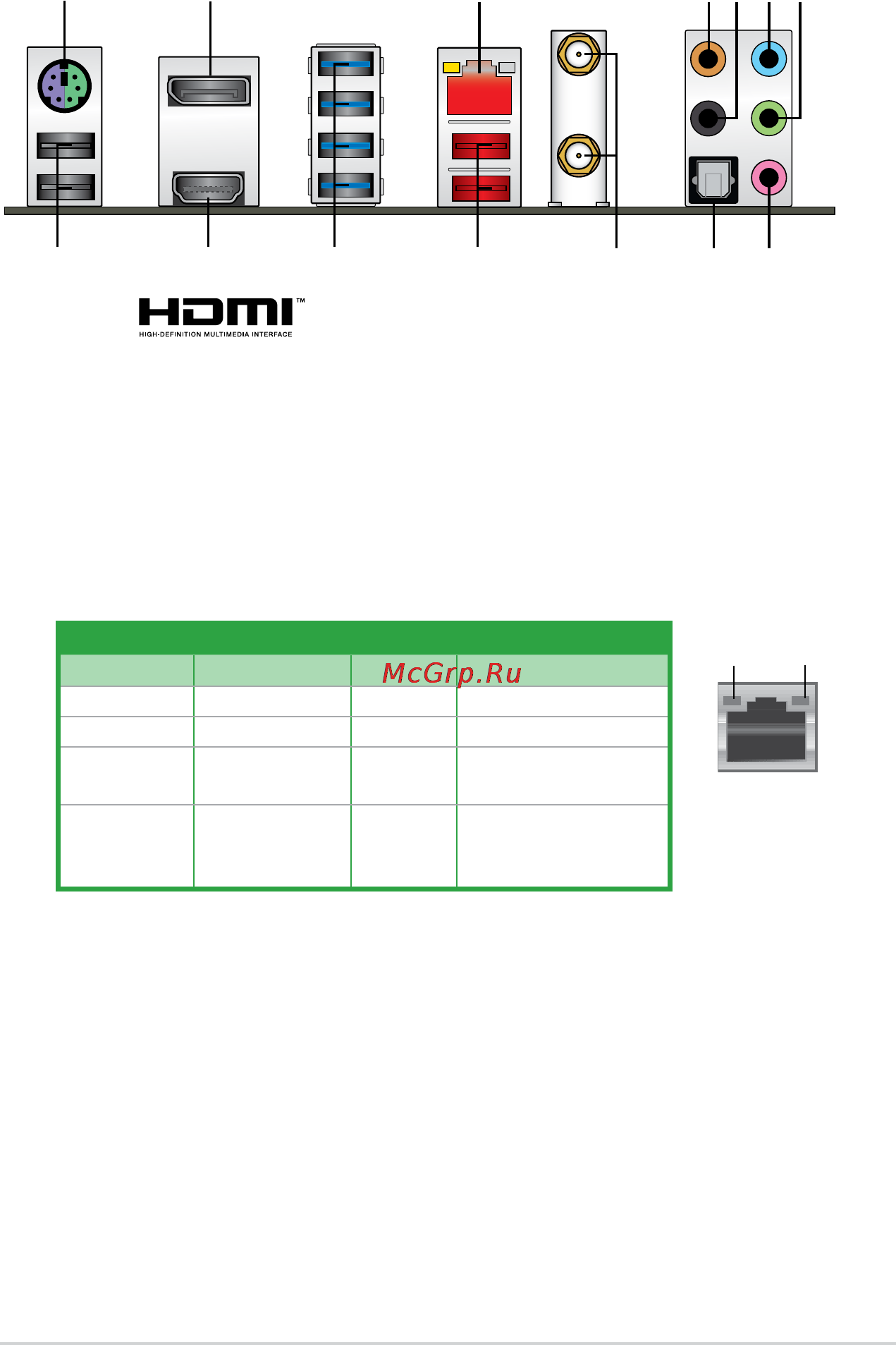

1.8 Connectors
1.8.1 Rear panel connectors
3
4 5 6 7
8
1
14
2
13
12
11 10
9
Activity/Link LED Speed LED
Status Description Status Description
Off Nolink OFF 10Mbpsconnection
Orange Linked ORANGE 100Mbpsconnection
Orange
(Blinking)
Dataactivity GREEN 1Gbps connection
Orange
(Blinking
thensteady)
Readytowake
upfromS5
mode
LAN port
SPEED
LED
ACT/LINK
LED
4. Center / Subwoofer port (orange). This port connects the center/subwoofer speakers.
5. Rear Speaker Out port (black).Thisportconnectstherearspeakersina4.1channel,
5.1channel,or7.1channelaudioconguration.
6. Line In port (light blue).Thisportconnectstothetape,CD,DVDplayer,orother
audio sources.
7. Line Out port (lime). Thisportconnectstoaheadphoneoraspeaker.Inthe4.1,5.1,
and7.1-channelcongurations,thefunctionofthisportbecomesFrontSpeakerOut.
