ASUS Z170I PRO GAMING
1-15
1.8.2 Internal connectors
1. TPM connector (14-1 pin TPM)
ThisconnectorsupportsaTrustedPlatformModule(TPM)system,whichsecurely
storekeys,digitalcerticates,passwordsanddata.ATPMsystemalsohelpsenhance
thenetworksecurity,protectsdigitalidentities,andensuresplatformintegrity.
TPM

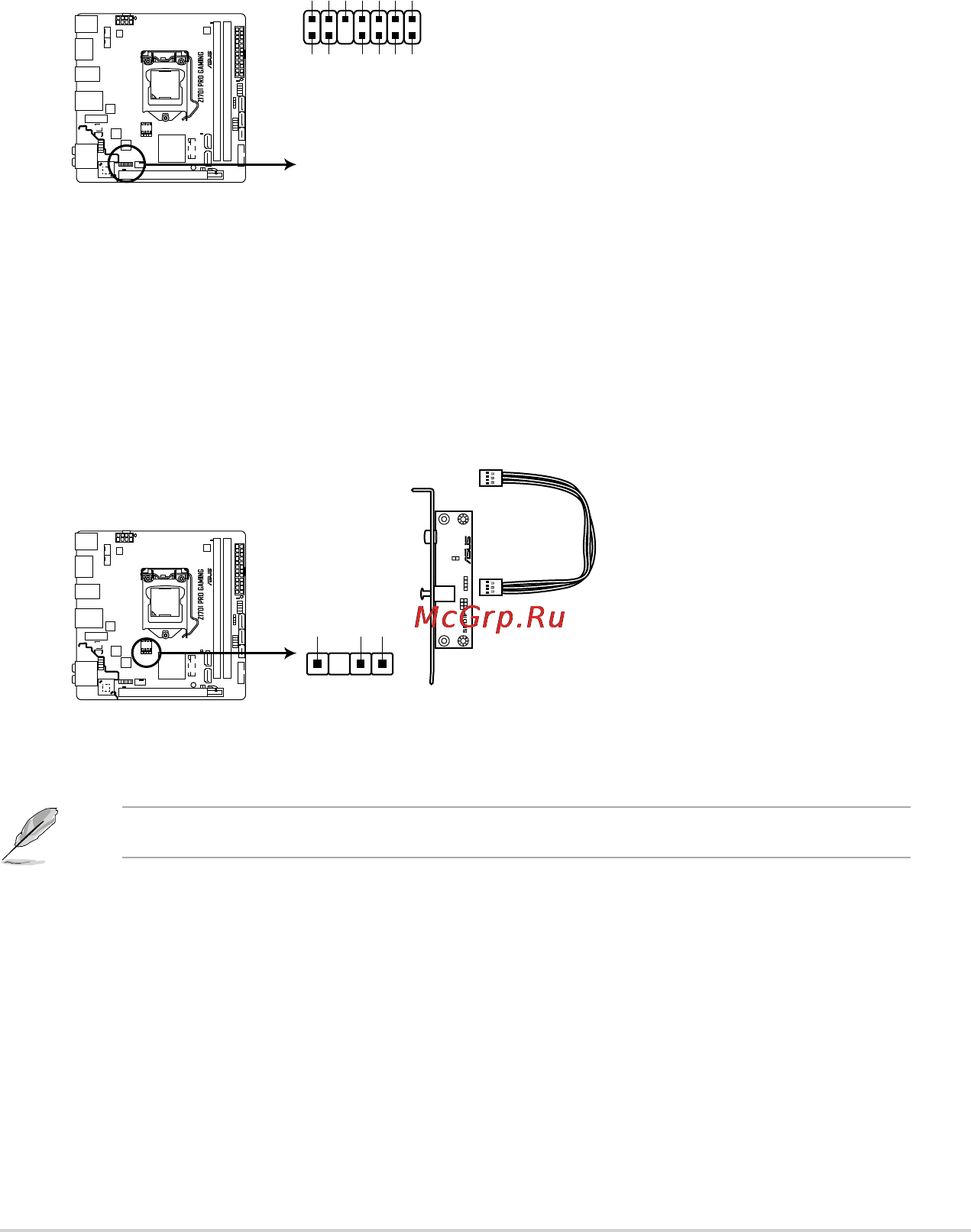

Z170I PRO GAMING TPM connector
PIN 1
+3VSB
S_PCIRST#_TBD
GND
C_PCICLK_TPM
+3V
+3V
F_CLKRUN
F_SERIRQ
F_FRAME#
F_LAD3
F_LAD2
F_LAD1
F_LAD0
2. Digital audio connector (4-1 pin SPDIF_OUT)
ThisconnectorisforanadditionalSony/PhilipsDigitalInterface(S/PDIF)port.Connect
theS/PDIFOutmodulecabletothisconnector,theninstallthemoduletoaslot
opening at the back of the system chassis.
The S/PDIF module is purchased separately.
Z170I PRO GAMING Digital audio connector
SPDIF_OUT
+5V
SPDIFOUT
GND
