2‑34
Chapter 2: Getting started

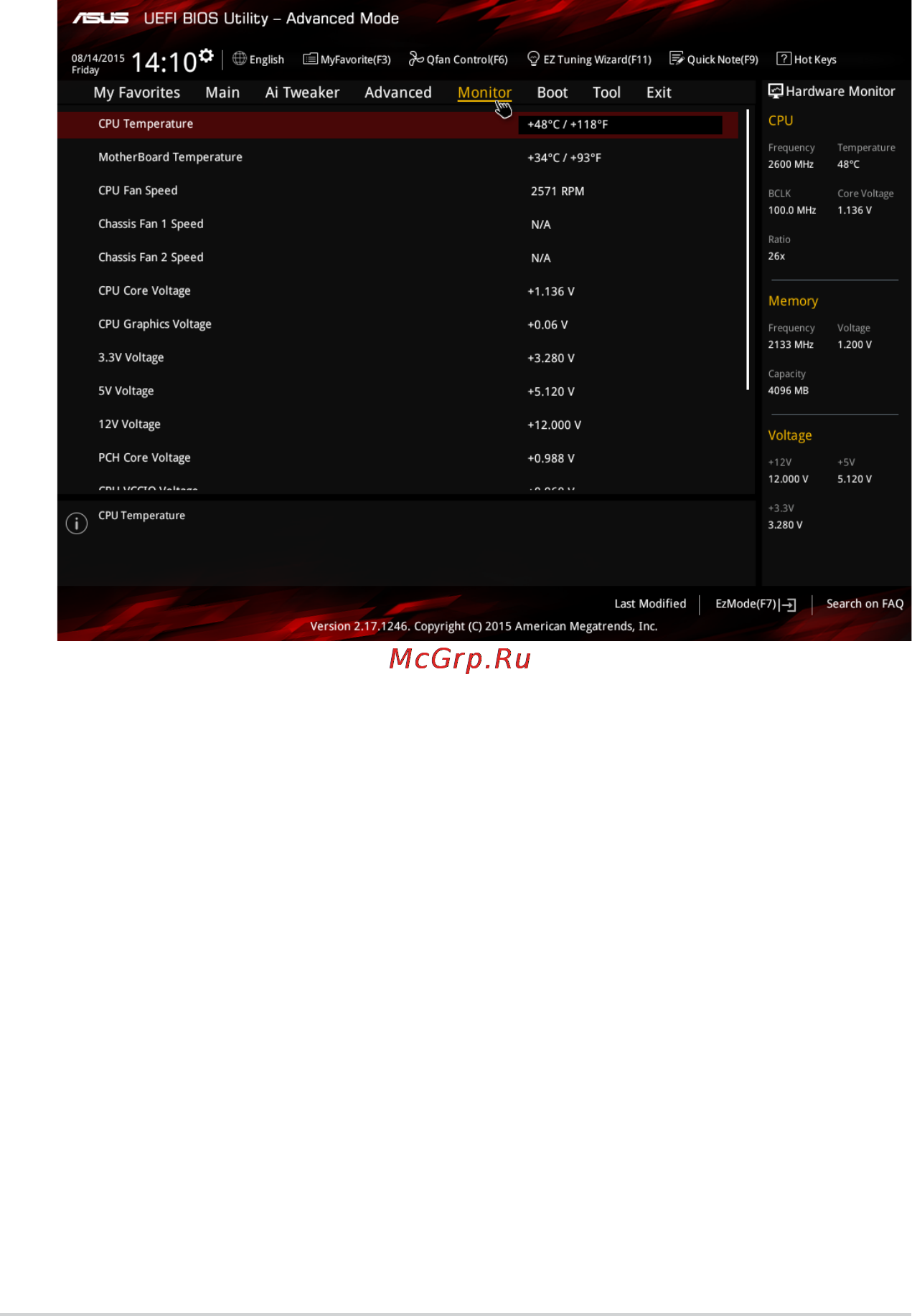

2.7 Monitor menu
The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
Scroll down to display the other items.
2.7.1 CPU Temperature, MB Temperature [xxx°C/xxx°F] or
[Ignore]
The onboard hardware monitor automatically detects and displays the CPU / motherboard /
VRM / PCH CORE temperatures. Select [Ignore] if you do not wish to display the detected
temperatures.
2.7.2 CPU Fan Speed, Chassis Fan 1 / Chassis Fan 2
Speed [xxxx RPM] or [Ignore] / [Monitor]
The onboard hardware monitor automatically detects and displays the CPU Fan / CPU
Optional Fan / Chassis fan 1 and 2 speeds in rotations per minute (RPM). If the fan is not
connected to the motherboard, the eld shows N/A. Select Ignore if you do not wish to
display the detected speed.
2.7.3 CPU Core Voltage, 3.3V Voltage, 5V Voltage, 12V
Voltage, PCH Core Voltage, CPU VCCIO Voltage, CPU
Standby Voltage
The onboard hardware monitor automatically detects the voltage output through the onboard
voltage regulators. Select Ignore if you do not want to detect this item.
