2‑38
Chapter 2: Getting started
2.8.1 Fast Boot [Enabled]
[Enabled] Select to accelerate the boot speed.
[Disabled] Select to go back to normal boot.
The following ve items appear when you set Fast Boot to [Enabled].
Next Boot after AC Power Loss [Normal Boot]
[Normal Boot] Returns to normal boot on the next boot after AC power loss.
[Fast Boot] Accelerates the boot speed on the next boot after AC power loss.
2.8.2 Boot Logo Display [Auto]
[Auto] Adjust automatically for Windows
®
requrement.
[Full Screen] Maximize the boot logo size.
[Disabled] Hide the logo during POST.

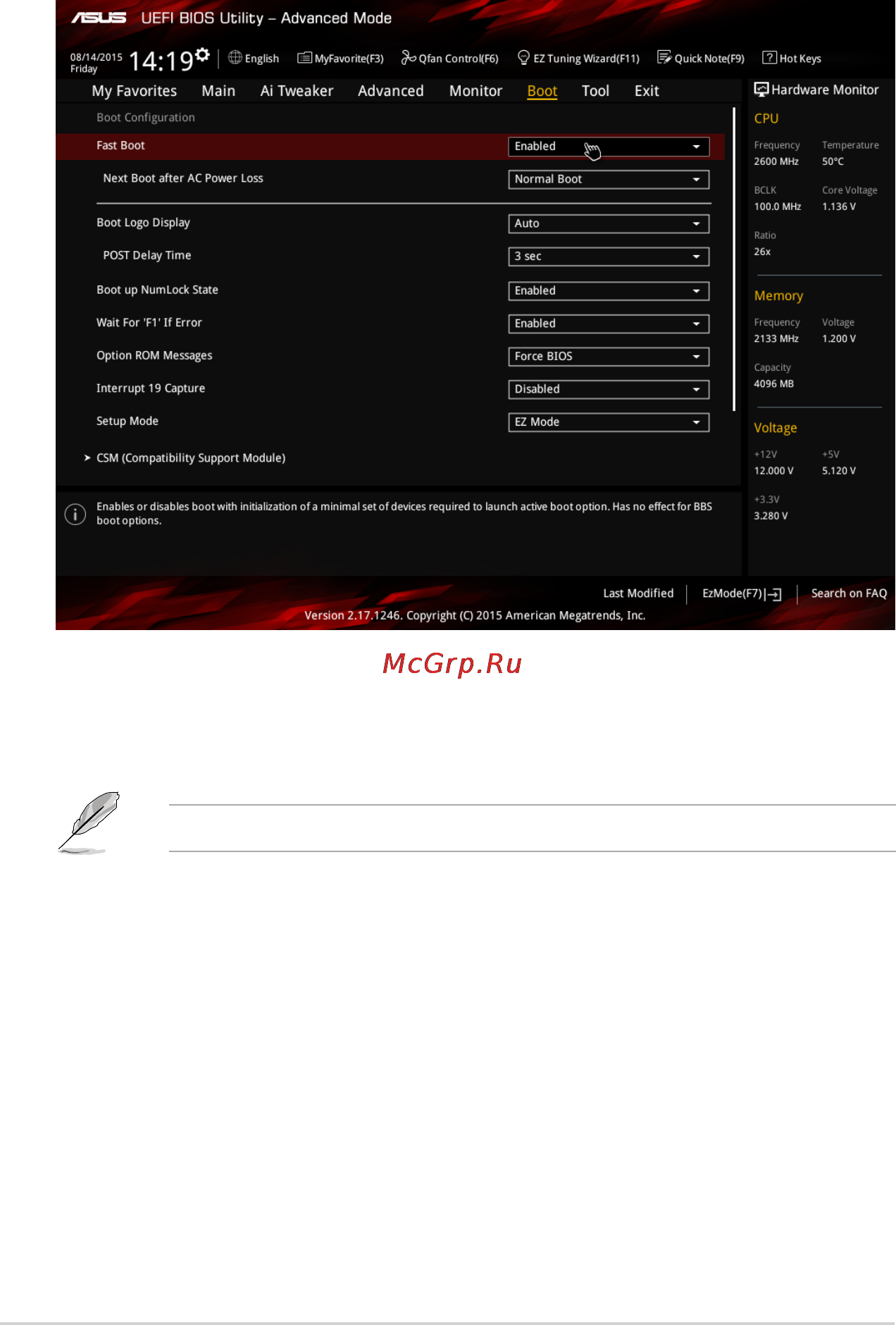

2.8 Boot menu
The Boot menu items allow you to change the system boot options.
Scroll down to display the other items.
