Chapter 1: Product Introduction
Place this side towards
the rear of the chassis
1.2.2 Screw holes

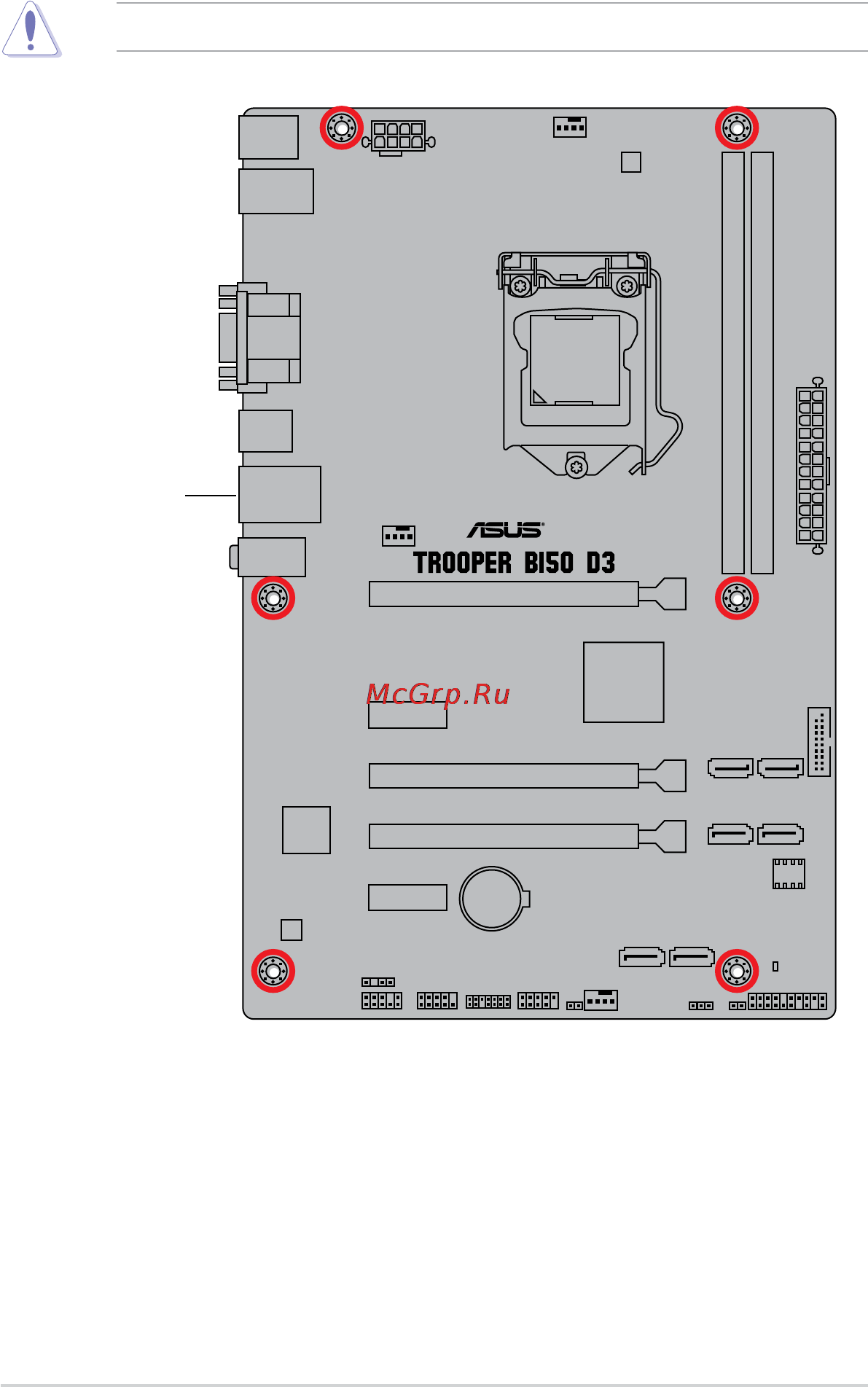

Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Donotovertightenthescrews!Doingsocandamagethemotherboard.
