1-8
Chapter 1: Product Introduction

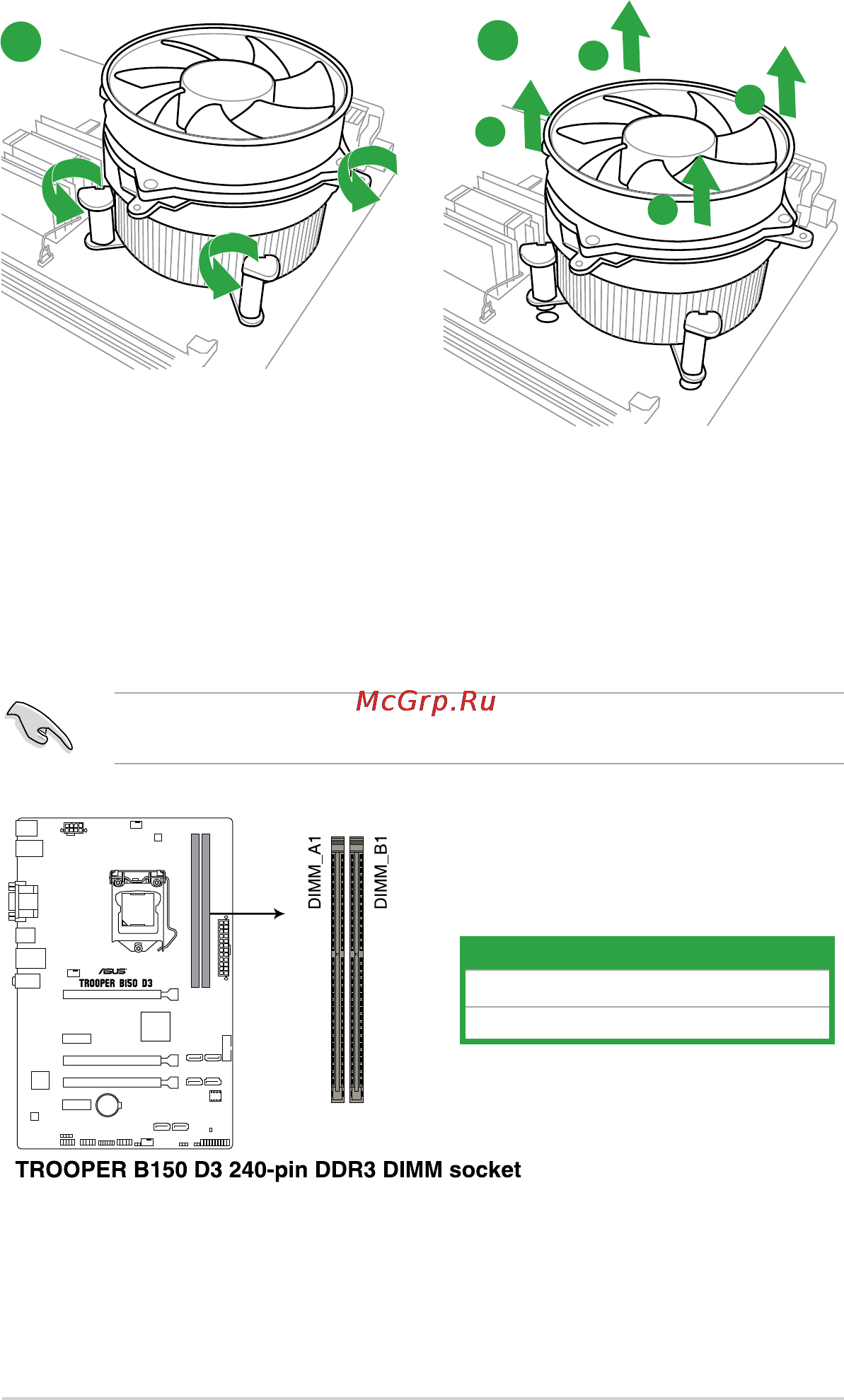

1.4 System memory
1.4.1 Overview
ThismotherboardcomeswithtwoDoubleDataRate3(DDR3)DualInlineMemoryModule
(DIMM)sockets.ADDR3moduleisnotcheddifferentlyfromaDDRorDDR2module.DO
NOTinstallaDDRorDDR2memorymoduletotheDDR3slot.
Channel Sockets
ChannelA DIMM_A1
ChannelB DIMM_B1
A
B
B
A
To uninstall the CPU heatsink and fan assembly
2
1
Topreventsysteminstability,eitherinstallDDR3LDIMMsorDDR3DIMMswithvoltage
lowerthan1.5V
