Asus b150m pro gaming [10/92] Screw holes
![Asus b150m pro gaming [10/92] Screw holes](/views2/1162408/page10/bga.png)
1-2
Chapter 1: Product Introduction
Place this side towards
the rear of the chassis

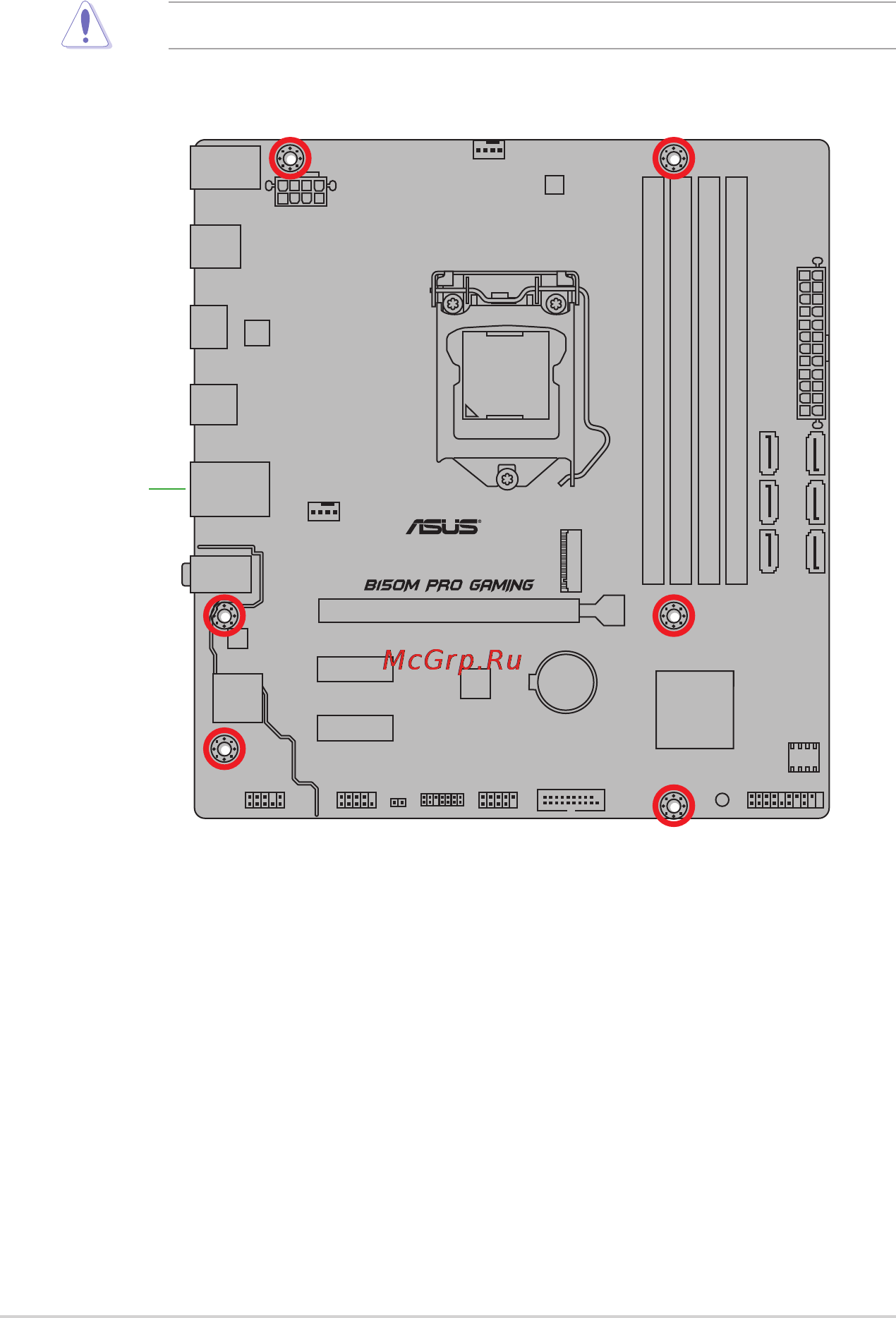

1.2.2 Screw holes
Place six (6) screws into the holes indicated by circles to secure the motherboard to the
chassis.
Do not overtighten the screws! Doing so can damage the motherboard.
