Asus b150m pro gaming [23/92] Audio 2 4 5 or 7 channel configuration

ASUS B150M PRO GAMING

1-15

Port

Headset

2-channel

4.1-channel 5.1-channel 7.1-channel

Light Blue Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out

Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out

Pink Mic In Mic In Bass/Center Bass/Center

Lime (Front Panel) – – – Side Speaker Out

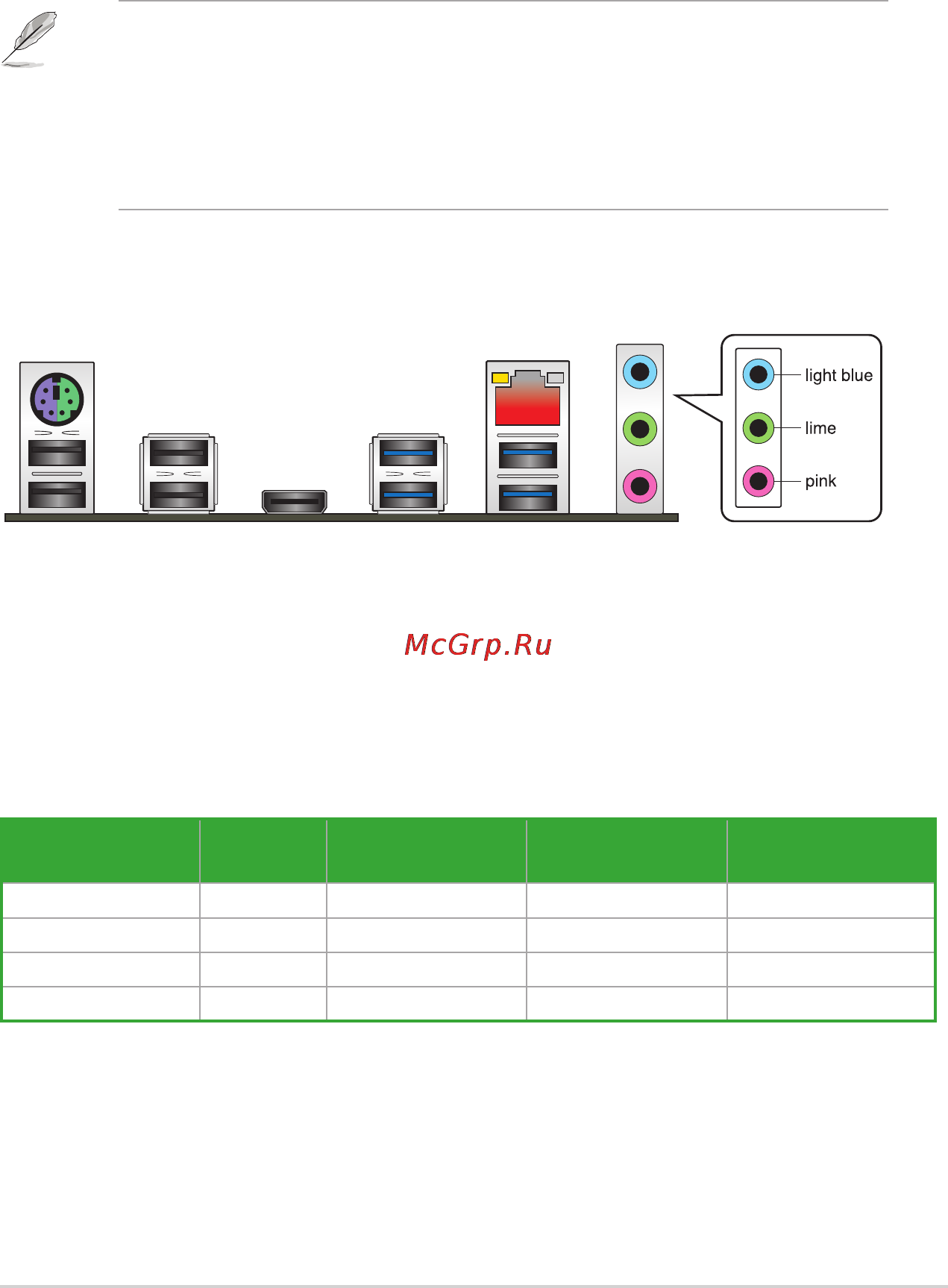

Audio 2, 4.1, 5.1, or 7.1-channel configuration

• USB 3.0 devices can only be used for data storage.

• We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster

and better performance from your USB 3.0 devices.

• Due to the design of the Intel

100 series chipset, all USB devices connected to the

USB 2.0 and USB 3.0 ports are controlled by the xHCI controller. Some legacy USB

devices must update their rmware for better compatibility.

3. USB 2.0 ports: These 4-pin Universal Serial Bus (USB) ports are for USB 2.0/1.1

devices.

4. HDMI port: This port is for a High-Denition Multimedia Interface (HDMI) connector,

and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected

content.

5. USB 3.0 ports: These 9-pin Universal Serial Bus (USB) ports are for USB 3.0 devices.

6. Audio I/O ports: Refer to the table below for audio port denitions.

Line In port (light blue): This port connects to the tape, CD, DVD player, or other audio

sources.

Line Out port (lime): This port connects to a headphone or a speaker. In the 4.1, 5.1, and

7.1 channel congurations, the function of this port becomes Front Speaker Out.

Microphone port (pink): This port connects to a microphone.
