2‑36

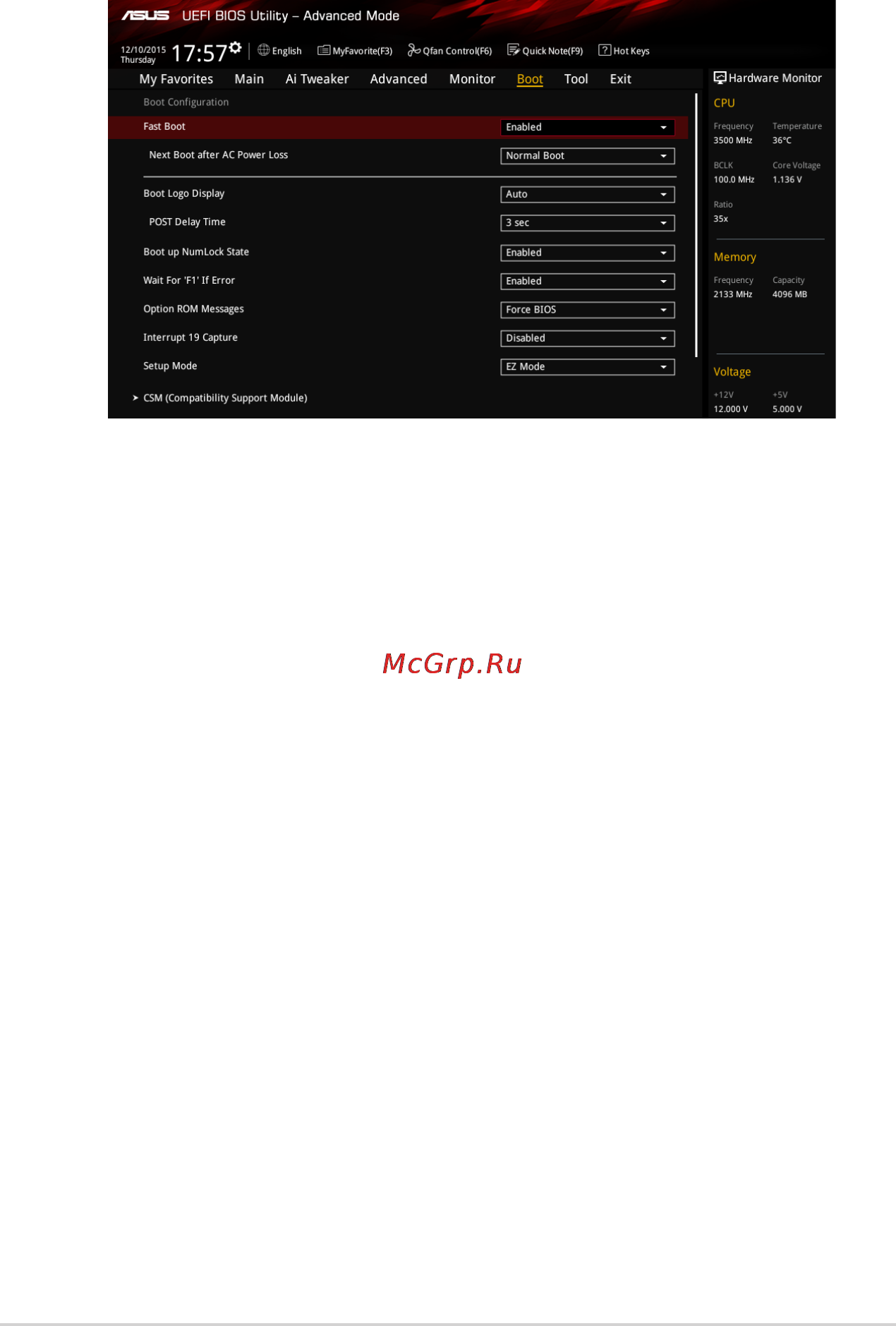

Chapter 2: BIOS Setup
2.8.1 Fast Boot [Enabled]
[Disabled] Select to return to normal boot speed.
[Enabled] Select to accelerate the boot speed.
Next Boot after AC Power Loss [Normal Boot]
[Normal Boot] Returns to normal boot on the next boot after an AC power loss.
[Fast Boot] Accelerates the boot speed on the next boot after an AC power loss.
2.8.2 Boot Logo Display [Auto]
[Auto] Auto adjustment for Windows requirements.
[Full Screen] Maximize the boot logo size.
[Disabled] Hide the logo during POST.
POST Delay Time [3 sec]
This item appears only when you set Boot Logo Display to [Auto] and [Full Screen]. This item
allows you to select the additional waiting time before the POST to easily enter the BIOS
setup. The POST delay time is only recommended to be set during a normal system boot.
The value ranges from 0 to 10 seconds.
2.8.3 Boot up NumLock State [Enabled]
This item allows you to enable or disable the keyboard numlock during the system boot.
Conguration options: [Enabled] [Disabled]
2.8 Boot menu
The Boot menu items allow you to change the system boot options.
Scroll down to display the other BIOS items.
