Chapter 1: Product Introduction

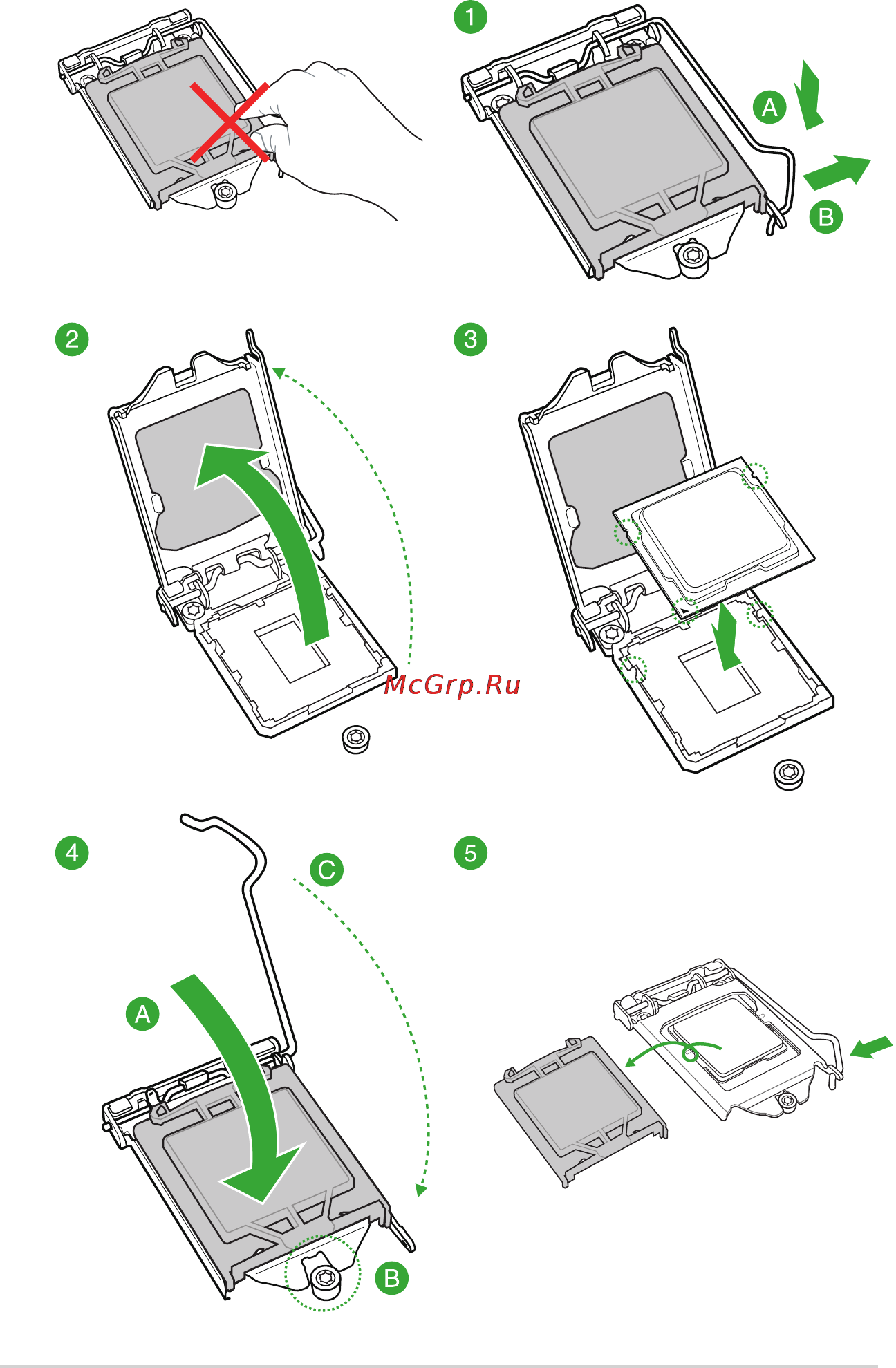

1.3.1 Installing the CPU

Содержание

Motherboard 1
E11309 revised edition v2 january 2016 2
Appendices 3
Chapter 1 product introduction 3
Chapter 2 bios setup 3
Contents 3
About this guide 4
Electrical safety 4
How this guide is organized 4
Operation safety 4
Safety information 4
Conventions used in this guide 5
Typography 5
Where to find more information 5
Accessories 6
Application dvd 1 x support dvd 6
B150m pro gaming specifications summary 6
Cables 2 x serial ata 6 gb s cables 6
Check your motherboard package for the following items 6
Documentation 1 x user guide 6
Motherboard asus gaming motherboard b150m pro gaming 6
Package contents 6
X i o shield 6
X m screw package 6
X pack of cable ties 6
X pro gaming cable labels 6
Asus exclusive features 7
B150m pro gaming specifications summary 7
Gamer s guardian 7
Performance level up 7
B150m pro gaming specifications summary 8
Before you proceed 9
Motherboard overview 9
Placement direction 9
Product introduction 9
Screw holes 10
Layout contents 12
And celero 13
Asus b150m pro gaming 13
Central processing unit cpu 13
Core i7 i5 i3 pentiu 13
Processors 13
This motherboard comes with a surface mount lga1151 socket designed for 6th generation inte 13
Asus b150m pro gaming 15
Cpu heatsink and fan assembly installation 15
To install the cpu heatsink and fan assembly 15
Overview 16
System memory 16
To uninstall the cpu heatsink and fan assembly 16
Asus b150m pro gaming 17
Memory configurations 17
Recommended memory configurations 17
You may install 2 gb 4 gb 8 gb and 16 gb unbuffered non ecc ddr4 dimms into the dimm sockets you can refer to the recommended memory population below 17
Configuring an expansion card 19
Expansion slots 19
Installing an expansion card 19
Irq assignments for this motherboard 20
Pci express 3 x1 slots 20
Pci express 3 x16 slot 20
Jumpers 21
Connectors 22
Lan port led indications 22
Rear panel connectors 22
Audio 2 4 5 or 7 channel configuration 23
Chapter 1 product introduction 24
Internal connectors 24
M socket 3 24
Serial port connector 10 1 pin com 24
This connector is for a serial com port connect the serial port module cable to this connector and then install the module to a slot opening at the back of the system chassis 24
This socket allows you to install an m ngff ssd module 24
Chapter 1 product introduction 26
This connector allows you to connect a usb 3 module for additional usb 3 front or rear panel ports with an installed usb 3 module you can enjoy all the benefits of usb 3 including faster data transfer speeds of up to 5gbps faster charging time for usb chargeable devices optimized power efficiency and backward compatibility with usb 2 26
Usb 3 connector 20 1 pin usb3_12 26
Asus b150m pro gaming 27
Connect the fan cables to the fan connectors on the motherboard ensuring that the black wire of each cable matches the ground pin of the connector 27
Cpu and chassis fan connectors 4 pin cpu_fan 4 pin cha_fan 27
Atx power connectors 24 pin eatxpwr 8 pin eatx12v 28
Chapter 1 product introduction 28
These connectors are for atx power supply plugs the power supply plugs are designed to fit these connectors in only one orientation find the proper orientation and push down firmly until the connectors completely fit 28
Asus b150m pro gaming 29
Front panel audio connector 10 1 pin aafp 29
This connector is for a chassis mounted front panel audio i o module that supports hd audio audio standard connect one end of the front panel audio i o module cable to this connector 29
Onboard led 33
Breathing mode the led blinks intermittently 34
Chapter 1 product introduction 34
Lit mode description 34
Still mode the led becomes solid red 34
Supremefx led 34
The supremefx led lights up in two ways to bring you an ultimate lighting effect this led also outlines the separation of the audio components from the rest of your motherboard 34
Installing an operating system 35
Software support 35
Support dvd information 35
To run the support dvd 35
Chapter 1 product introduction 36
Bios setup 37
Ez update 37
Managing and updating your bios 37
Asus ez flash 3 38
Asus bios updater 39
Asus crashfree bios 3 utility 39
Before updating bios 39
Recovering the bios 39
And to move selection enter to select boot device esc to boot using defaults 40
Booting the system in dos environment 40
P2 st3808110as 76319mb aigo miniking 250mb uefi fat asus drw 2014l1t 4458mb p1 asus drw 2014l1t 4458mb uefi fat aigo miniking 250mb enter setup 40
Please select boot device 40
Updating the bios file 40
After the bios updater checks the selected bios file select yes to confirm the bios update 41
Are you sure you want to update the bios 41
Asus b150m pro gaming 41
Asustek bios updater for dos v1 0 2014 01 01 41
Do not shut down or reset the system while updating the bios to prevent system boot failure 41
Ensure to load the bios default settings to ensure system compatibility and stability select the load optimized defaults item under the exit bios menu see section 2 0 exit menu for details 41
Restart your computer 41
The bios backup feature is not supported due to security regulations 41
To exit bios updater 41
Yes no 41
Bios menu screen 42
Bios setup program 42
Chapter 2 bios setup 42
Post continues with its routines 42
Press the power button to turn the system off then back on do this option only if you failed to enter bios setup using the first two options 42
Press the reset button on the system chassis 42
Simultaneously 42
To change between the two modes 42
To enter bios setup after post 42
To enter bios setup at startup 42
Use the bios setup program to update the bios or configure its parameters the bios screens include navigation keys and brief online help to guide you in using the bios setup program 42
Asus b150m pro gaming 43
Ez mode 43
The boot device options vary depending on the devices you installed to the system 43
The default screen for entering the bios setup program can be changed refer to the setup mode item in section 2 boot menu for details 43
Advanced mode 44
Chapter 2 bios setup 44
The advanced mode provides advanced options for experienced end users to configure the bios settings the figure below shows an example of the advanced mode refer to the following sections for the detailed configurations 44
Language 45
Menu bar 45
Menu items 45
Myfavorites f3 45
Qfan control f6 45
Quick note f9 45
Submenu items 45
Configuration fields 46
General help 46
Hot keys 46
Last modified button 46
Scroll bar 46
Search on faq 46
Asus b150m pro gaming 47
Qfan control 47
The qfan control allows you to set a fan profile or manually configure the operating speed of your cpu and chassis fans 47
Configuring fans manually 48
Adding items to my favorites 49
My favorites 49
Allows you to choose the bios language version from the options configuration options english español 51
Asus b150m pro gaming 51
Language english 51
Main menu 51
Security 51
The main menu screen appears when you enter the advanced mode of the bios setup program the main menu provides you an overview of the basic system information and allows you to set the system date time language and security settings 51
The security menu items allow you to change the system security settings 51
Русский korea 51
Administrator password 52
User password 52
Ai tweaker menu 53
Asus b150m pro gaming 53
Cpu core ratio auto 53
Scroll down to display other bios items 53
The ai tweaker menu items allow you to configure overclocking related items 53
This item allows you to set the cpu core ratio limit per core or synchronize automatically to all cores configuration options auto sync all cores per core 53
Bclk frequency dram frequency ratio auto 54
Core ratio limit auto 54
Dram frequency auto 54
Dram odd ratio mode enabled 54
Cpu current capability auto 55
Cpu load line calibration auto 55
Cpu svid support auto 55
Digi vrm 55
Dram timing control 55
Epu power saving mode disabled 55
Cpu power duty control t probe 56
Cpu power phase control auto 56
Cpu vrm switching frequency auto 56
Intel r speedstep tm auto 57
Internal cpu power management 57
Turbo mode parameters 57
Cpu core cache current limit max auto 58
Cpu core cache voltage auto 58
Cpu core voltage offset auto 58
Cpu core voltage override auto 58
Max cpu cache ratio auto 58
Min cpu cache ratio auto 58
Offset mode sign 58
Dram ctrl ref voltage auto 59
Dram data ref voltage on cha dimm0 rank0 bl0 7 auto 59
Dram data ref voltage on cha dimm0 rank1 bl0 7 auto 59
Dram data ref voltage on cha dimm1 rank0 bl0 7 auto 59
Dram data ref voltage on cha dimm1 rank1 bl0 7 auto 59
Dram data ref voltage on chb auto 59
Dram data ref voltage on chb dimm0 rank0 bl0 7 auto 59
Dram data ref voltage on chb dimm0 rank1 bl0 7 auto 59
Dram data ref voltage on chb dimm1 rank0 bl0 7 auto 59
Dram data ref voltage on chb dimm1 rank1 bl0 7 auto 59
Dram ref voltage control 59
Active processor cores all 60
Adjacent cache line prefetch enabled 60
Advanced menu 60
Cpu configuration 60
Hardware prefetcher enabled 60
Intel virtualization technology disabled 60
Cpu power management configuration 61
Aspm support disabled 62
Dmi link aspm control disabled 62
Pch pci express options 62
Pci express native power management disabled 62
Peg aspm disabled 62
Platform misc configuration 62
Sa pci express options 62
Dmi opi configuration 63
Graphics configuration 63
Memory configuration 63
Pch configuration 63
Pci express configuration 63
Peg port configuration 63
System agent sa configuration 63
Aggressive lpm support disabled 64
Hyper kit mode disabled 64
Pch storage configuration 64
Sata controller s enabled 64
Sata6g_1 6 charcoal black enabled 64
Smart self test on 64
Hd audio controller enabled 65
Legacy usb support enabled 65
Onboard devices configuration 65
Usb configuration 65
Usb single port control 65
Xhci hand off disabled 65
Audio led lighting breathing mode 66
Charging usb devices in power state s5 enabled 66
Intel lan controller enabled 66
M and sata6g_1 sata mode configuration sata6g_1 66
M sata6g_1 configuration auto 66
Serial port configuration 66
Apm configuration 67
Erp ready disabled 67
Hdd ssd smart information 67
Ipv4 ipv6 pxe support enabled 67
Network stack configuration 67
Network stack disabled 67
Power on by pci e pci disabled 67
Power on by ring disabled 67
Power on by rtc disabled 67
Restore ac power loss power off 67
Cpu chassis fan speed xxxx rpm 68
Cpu core 3 v 5v 12v voltage 68
Cpu motherboard temperature xxx c xxx f 68
Monitor menu 68
Q fan configuration 68
Qfan tuning 68
Cpu q fan control auto 69
Chassis fan q fan control dc mode 70
Anti surge support on 71
Boot logo display auto 72
Boot menu 72
Boot up numlock state enabled 72
Fast boot enabled 72
Next boot after ac power loss normal boot 72
Post delay time 3 sec 72
Boot device control uefi and legacy oprom 73
Boot from network devices legacy only 73
Boot from pci e pci expansion devices legacy only 73
Boot from storage devices legacy only 73
Csm compatibility support module 73
Interrupt 19 capture disabled 73
Launch csm enabled 73
Option rom messages force bios 73
Setup mode ez mode 73
Wait for f1 if error enabled 73
Key management 74
Os type windows uefi mode 74
Secure boot 74
Boot option priorities 75
Boot override 75
Asus ez flash 3 utility 76
Chapter 2 bios setup 76
Secure erase 76
Ssd speed performance may degrade over time due to accumulated files and frequent data writing secure erase completely cleans your ssd and restore it to its factory settings 76
To display the sub menu 76
To launch the asus ez flash 3 screen 76
Tool menu 76
Asus b150m pro gaming 77
Asus spd information 77
Dimm slot number dimm_a1 77
Displays the serial presence detect spd information of the dimm module installed on the selected slot configuration options dimm_a1 dimm_a2 dimm_b1 dimm_b2 77
Enables or disables the setup animator configuration options enabled disabled 77
Gpu post 77
Graphics card information 77
Setup animator disabled 77
This item displays the information about the graphics card installed in your system 77
This item displays the information and recommended configuration for the pcie slots that the graphics card is installed in your system 77
Discard changes and exit 78
Exit menu 78
Launch efi shell from usb drives 78
Load optimized defaults 78
Save changes reset 78
And usb 3 driver for 100 series 79
Installing an operating system 79
Method 1 using sata odd usb devices 79
Window 79
Method 2 using a modified window 81
Method 3 using asus ez installer 82
Chapter 2 bios setup 86
Appendices 87
Federal communications commission statement 87
Notices 87
Canadian department of communications statement 88
Class b ite 88
Ic canadian compliance statement 88
Kc korea warning statement 88
Vcci japan compliance statement 88
Asus recycling takeback services 89
Google license terms 89
Appendices 90
Asus computer gmbh germany and austria 91
Asus computer international america 91
Asus contact information 91
Asustek computer inc 91
Technical support 91
108 ec emc directive 92
125 ec erp directive 92
5 ec r tte directive 92
65 eu rohs directiv 92
95 ec lvd directive 92
Appendices 92
B150m pro gaming 92
Ce marking 92
Conform with the essential requirements of the following directives 92
Declaration date 28 12 2015 92
Declaration of conformity 92
Declare the following apparatus 92
Ec conformity marking 92
Ec declaration of conformity 92
Model name 92
Motherboard 92
Name jerry shen 92
Position ceo 92
Product name 92
Signature 92
Ver 140331 92
We the undersigned 92
Year to begin affixing ce marking 2015 92

Asus b150m pro gaming Инструкция по эксплуатации онлайн [14/92] 148519

Содержание

Похожие устройства
