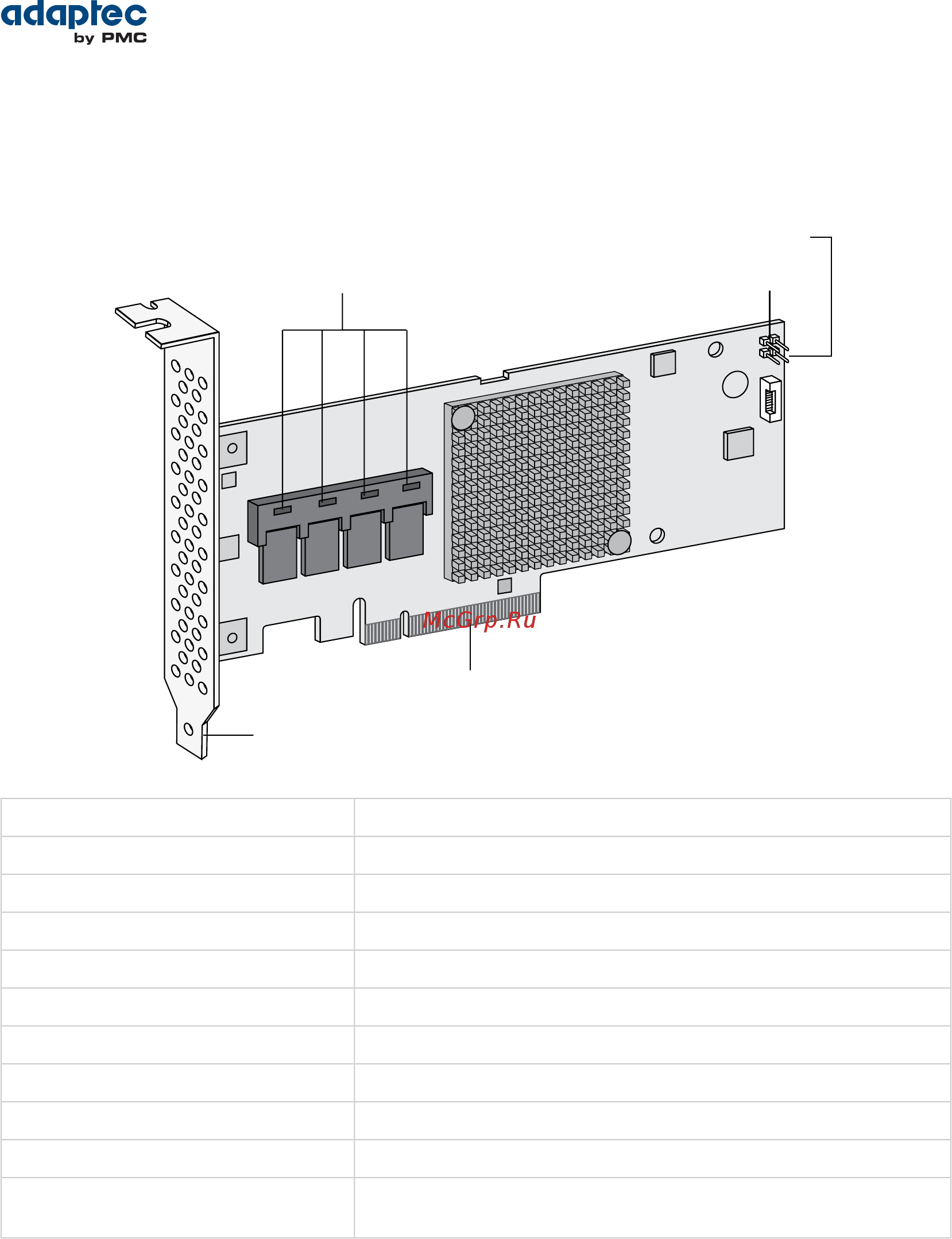

About the Adaptec RAID 71605E
The Adaptec RAID 71605E is a SAS RAID controller with these features:
4 internal mini-SAS HD connectors
Ext. Alarm connector
HDA mode connector
CN0
CN1
CN2
CN3
PCIe x8 connector
Mounting bracket
Low-prole MD2Form Factor
PCIe 3.0Bus compatibility
x8PCIe bus width
6 Gb/s per portData transfer rate
16Phys (Unied Serial Ports)
256 MB DDR3Standard cache
4 mini-SAS HD x4 (SFF-8643)Connectors, internal
16 direct-attached (or up to 256 with expanders)Maximum number of disk drives
IBPI and SGPIO (Serial General Purpose Input/Output)Enclosure Support
YesOnboard speaker
NoZero Maintenance Cache Protection
Module
27Proprietary and Condential to PMC-Sierra, Inc., and for its customers.
Document No.: CDP-00310-01-A Rev. A, Issue
Serial Attached SCSI RAID Controllers Installation and User's Guide
