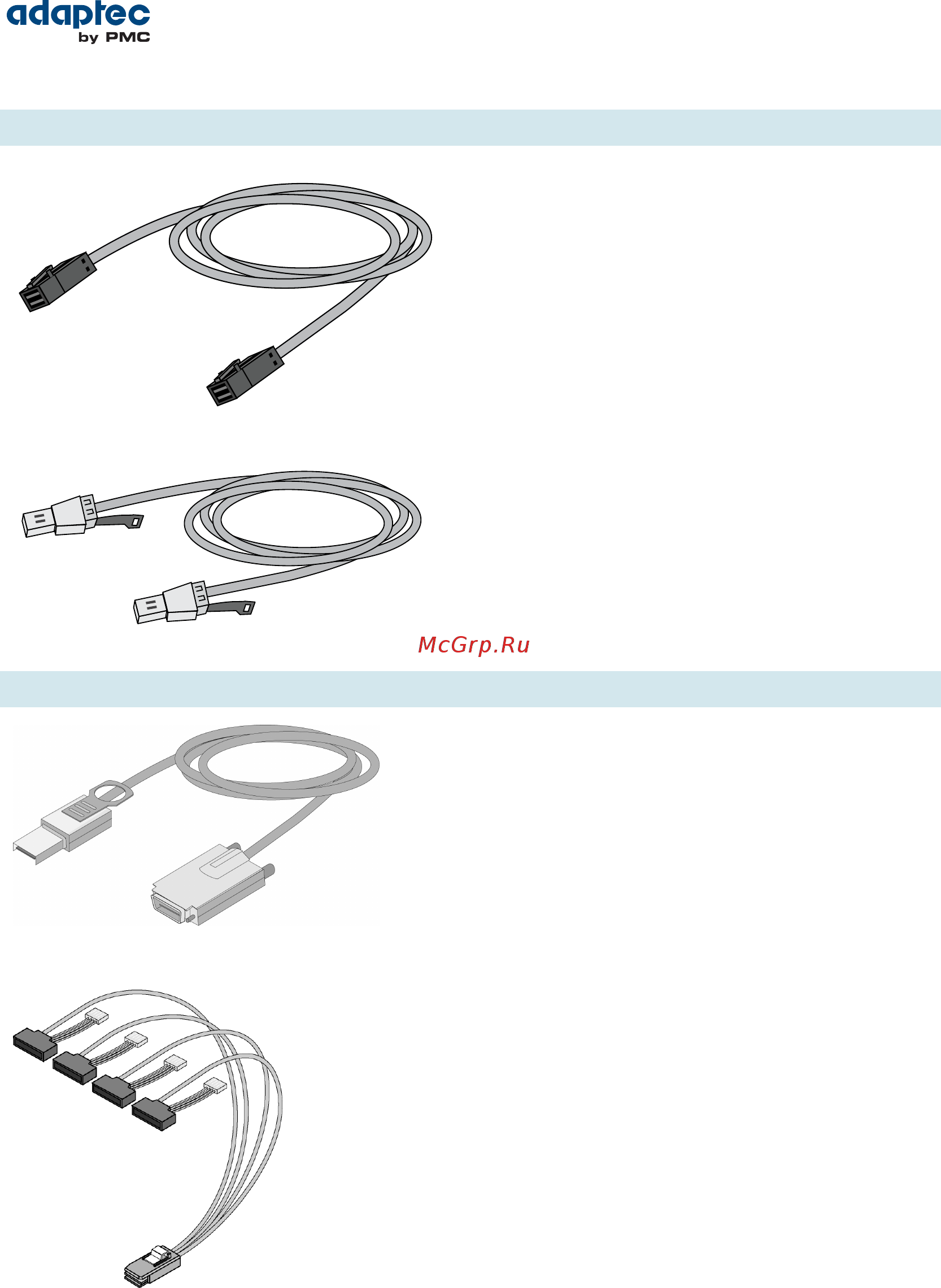

SAS HD Cables (Adaptec Series 7 and Adaptec Series 8 controllers)
Internal SAS HD to SAS HD (SFF-8643 to SFF- 8643
)—Connects to a backplane or enclosure.
External SAS HD to SAS HD (SFF-8644 to SFF- 8644
)—Connects to a backplane or enclosure.
mini-SAS Cables (Adaptec Series 6 controllers)
External mini-SAS (SFF-8088 to SFF-8470)—Con-
nects to an external SAS enclosure.
Internal mini-SAS with power (SFF-8087 to SFF-84
82)—Connects to four SAS or SATA disk drives.
36Proprietary and Condential to PMC-Sierra, Inc., and for its customers.
Document No.: CDP-00310-01-A Rev. A, Issue
Serial Attached SCSI RAID Controllers Installation and User's Guide
