1. Insert the bootable USB drive on the machine you want to congure.
The Boot menu opens in a shell window.
2. Select Launch maxView from the menu.
After a minute or so, the maxView Storage Manager login screen opens in a browser window.
3. Enter root/root for the login credentials.

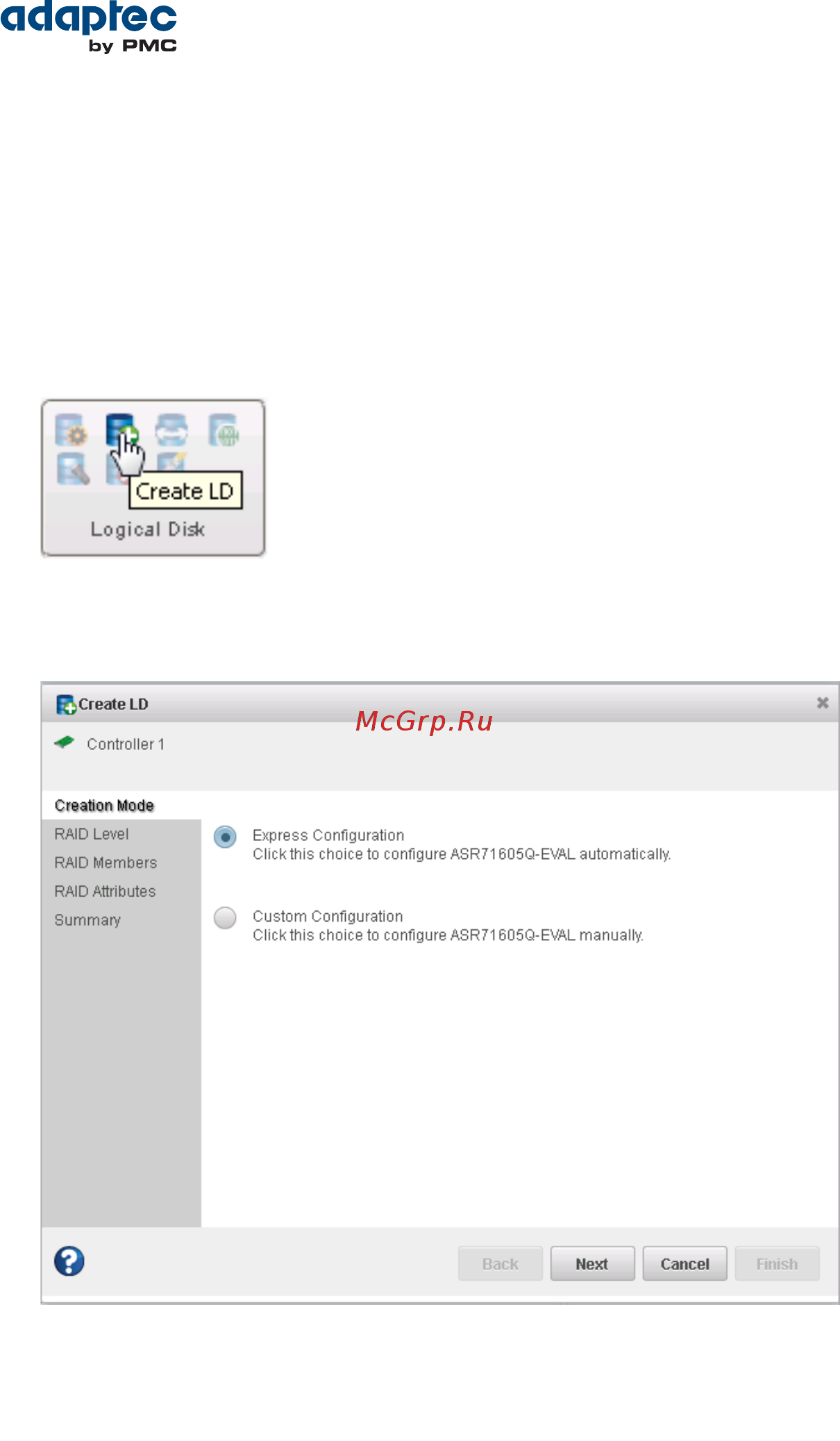

4. On the ribbon, in the Logical Disk group, click Create Logical Drive.
5. When the wizard opens, ensure that Express Conguration is selected, then click Next.
6. Review the logical drive conguration summary.
Note: maxView Storage Manager uses the term logical drive when referring to an
array (see Terminology Used in this Guide on page 13).
The following example shows a RAID 5 array, ready to be created.
50Proprietary and Condential to PMC-Sierra, Inc., and for its customers.
Document No.: CDP-00310-01-A Rev. A, Issue
Serial Attached SCSI RAID Controllers Installation and User's Guide
