Hardware Installation

- 20 -

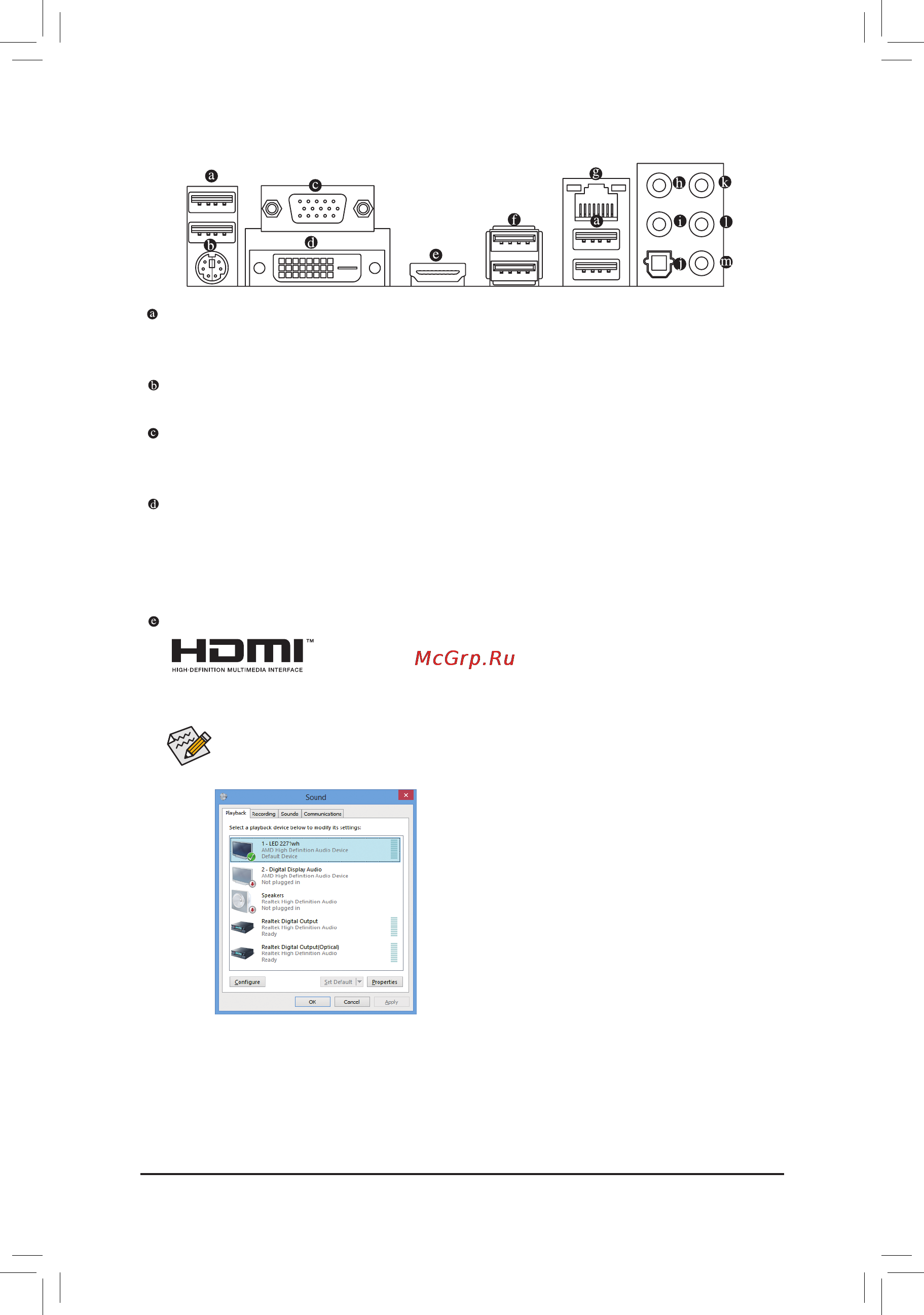

1-7 Back Panel Connectors

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as a USB

keyboard/mouse, USB printer, USB ash drive and etc.

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub connection

to this port.

DVI-D Port

(Note1)

The DVI-D port conforms to the DVI-D specication and supports a maximum resolution of 2560x1600.

Connect a monitor that supports DVI-D connection to this port. Please note that the actual resolutions

supported are dependent on the monitor being used and support for 2560x1600 resolution requires both

a monitor and cable that support Dual Link DVI.

HDMI Port

The HDMI port is HDCP compliant and supports Dolby True HD and DTS HD

Master Audio formats. It also supports up to 192KHz/24bit 8-channel LPCM audio

output. You can use this port to connect your HDMI-supported monitor. The maximum supported resolution

is 4096x2160

(Note 2)

, but the actual resolutions supported are dependent on the monitor being used

A.TripleDisplayCongurations:

Triple-display congurations are supported after you install motherboard drivers in OS. Only dual-display

congurations are supported during the BIOS Setup or POST process.

After installing the HDMI device, make sure to set the default sound playback device to HDMI.

(The item name may differ depending on your operating system. The screenshot below is from

Windows 8.)

(Note 1) The DVI-D port does not support D-Sub connection by adapter.

(Note 2) The resolution of 4096x2160 can be supported when using an FM2+ APU; the maximum resolution

supported is 1920x1200 when using an FM2 APU.

In Windows 8, select select All apps>Control Panel>Hardware

and Sound>Sound>Playback, set AMD H

igh Denition Audio

Device to the default playback device.
