(Note) EntertheDigital Output(Optical)screentocongurefurthersettingsifyouusetheS/PDIFOut

connector(s)onthebackpanelfordigitalaudiooutputorentertheDigital Output screen if you use

theinternalS/PDIFOutconnector(SPDIF_O)fordigitalaudiooutput.

2.ConguringS/PDIFOut:

On the Digital Output(Optical) screen

(Note)

, click the Default Format tab and then select the sample rate and

bit depth. Click OK to complete.

6-1-2 ConguringS/PDIFOut

The S/PDIF Out jack can transmit audio signals to an external decoder for decoding to get the best audio quality.

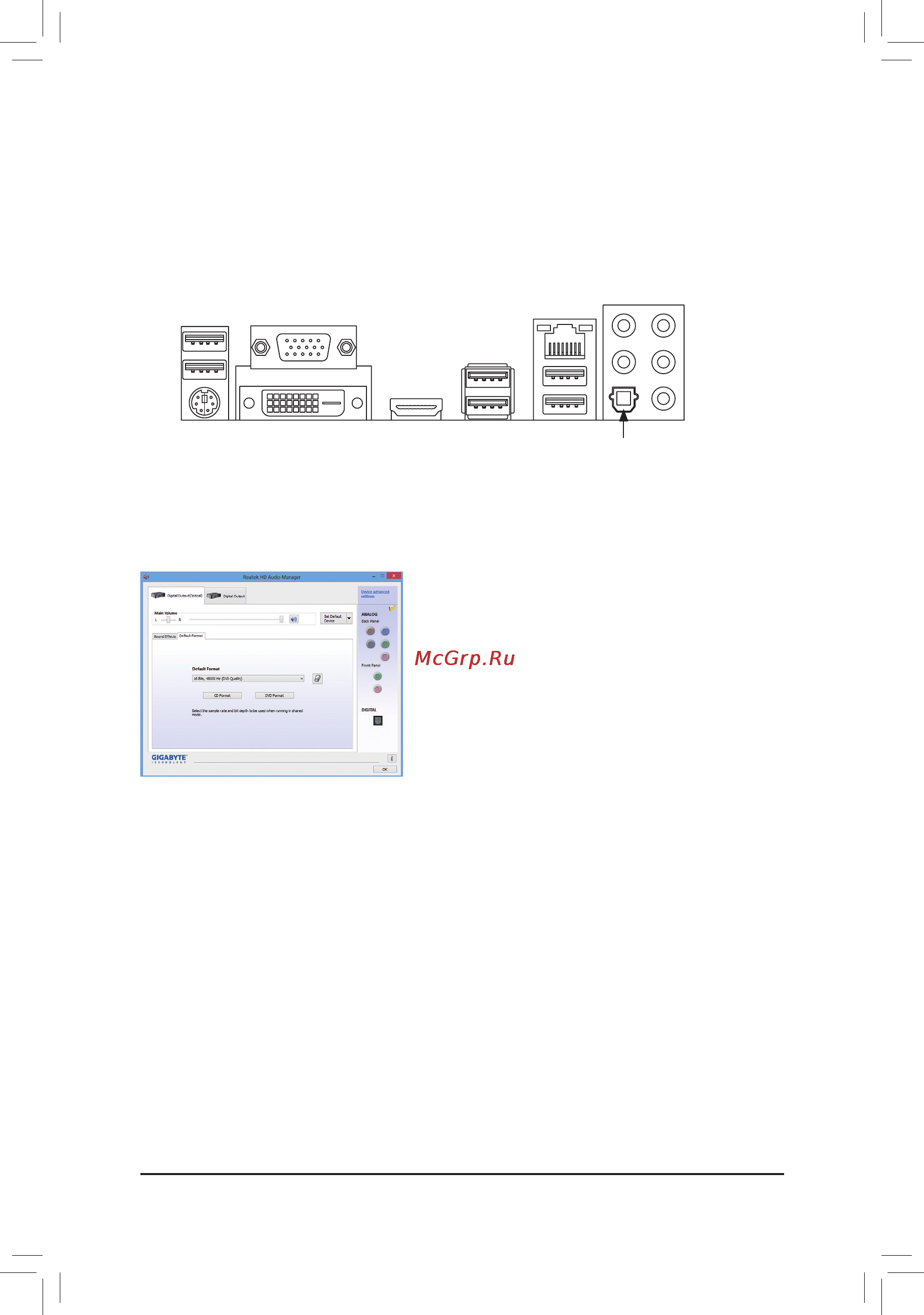

1.ConnectingaS/PDIFOutCable:

Connect a S/PDIF optical cable to the corresponding S/PDIF out connector as shown below and an external

decoder for transmitting the S/PDIF digital audio signals.

Connects to a S/PDIF optical cable
