- 39 -
BIOS Setup

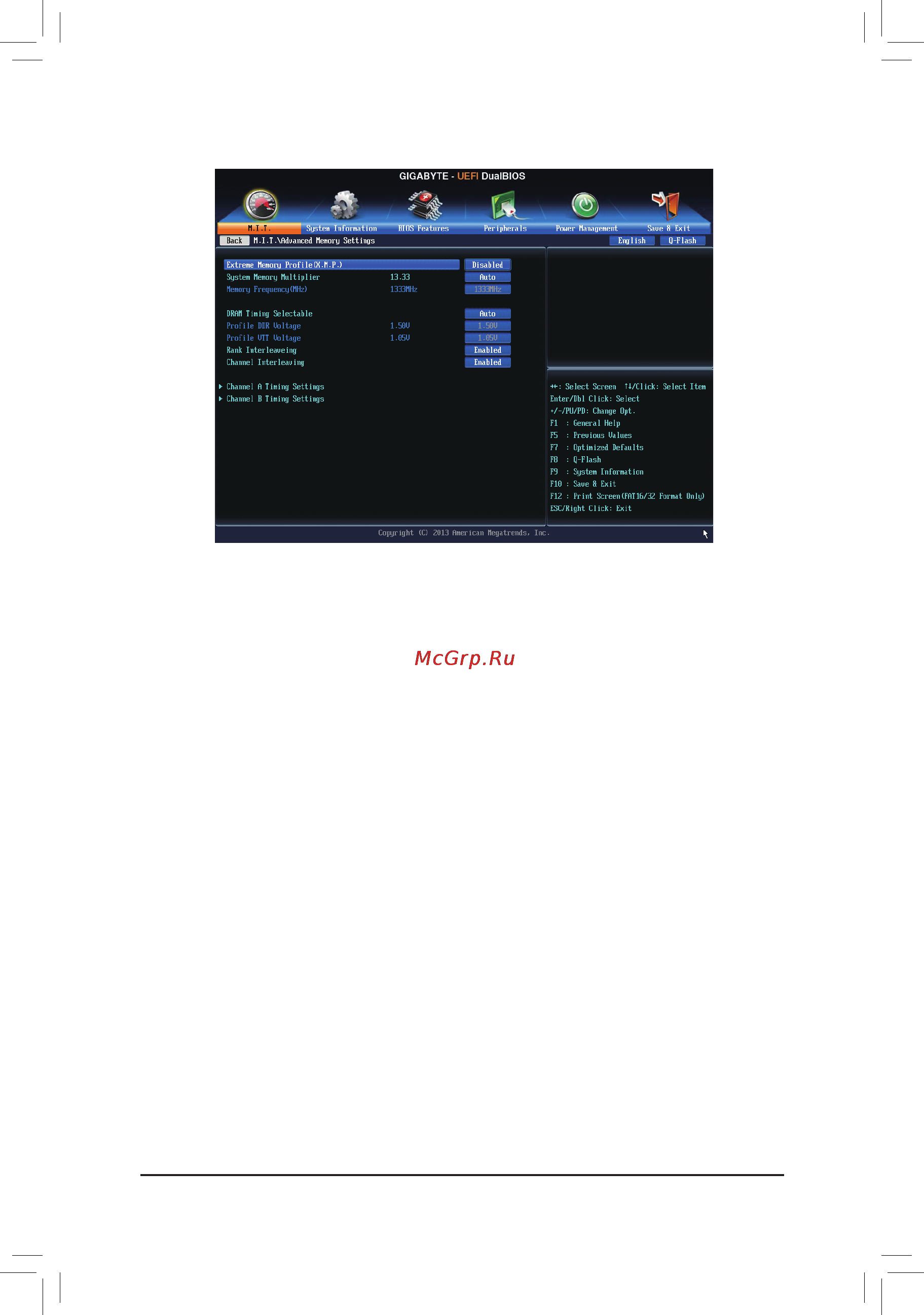

` Advanced Memory Settings
& Extreme Memory Prole (X.M.P.)
(Note)
, System Memory Multiplier, Memory
Frequency(MHz)
The settings above are synchronous to those under the same items on the Advanced Frequency
Settings menu.
& DRAM Timing Selectable
Quick and Expert allows the memory timing settings below to be congurable. Options are: Auto (default),
Quick, Expert.
& Prole DDR Voltage
When using a non-XMP memory module or ExtremeMemoryProle(X.M.P.) is set to Disabled, this
item will display as 1.50V. When ExtremeMemoryProle(X.M.P.) is set to Prole1 or Prole2, this
item will display the value based on the SPD data on the XMP memory.
& Prole VTT Voltage
The value displayed here is dependent on the CPU being used.
& Rank Interleaving
Enables or disables memory rank interleaving. Enabled allows the system to simultaneously access
different ranks of the memory to increase memory performance and stability. Auto lets the BIOS
automatically congure this setting. (Default: Auto)
& Channel Interleaving
Enables or disables memory channel interleaving. Enabled allows the system to simultaneously access
different channels of the memory to increase memory performance and stability. Auto lets the BIOS
automatically congure this setting. (Default: Auto)
(Note) This item is present only when you install a memory module that supports this feature.
