Gigabyte ga-f2a88x-d3h [41/96] Case open

- 41 -

BIOS Setup

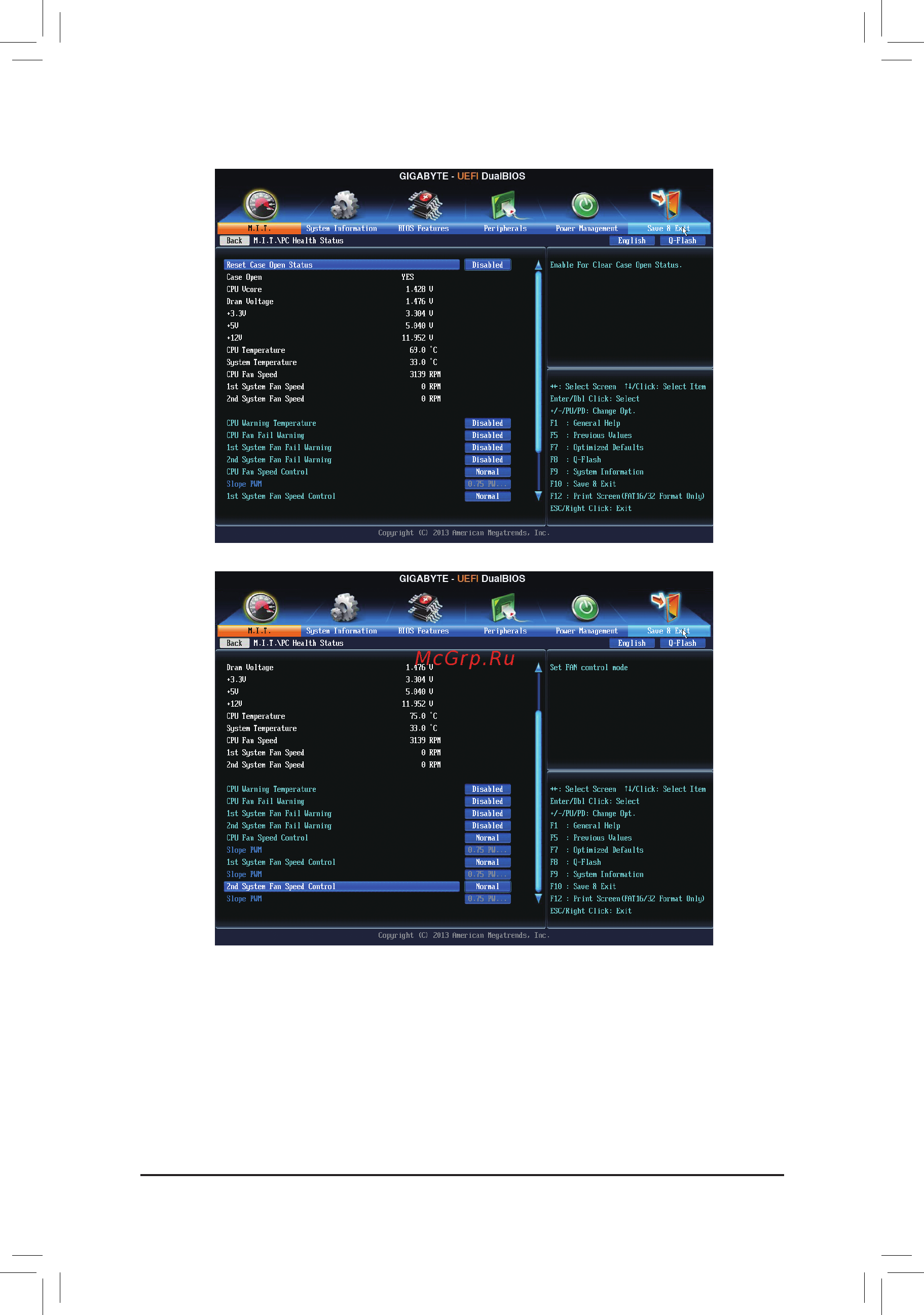

` PC Health Status

& Reset Case Open Status

Disabled Keeps or clears the record of previous chassis intrusion status. (Default)

Enabled Clears the record of previous chassis intrusion status and the Case Open eld will show

"No" at next boot.

& Case Open

Displays the detection status of the chassis intrusion detection device attached to the motherboard CI

header. If the system chassis cover is removed, this eld will show "Yes", otherwise it will show "No". To

clear the chassis intrusion status record, set Reset Case Open Status to Enabled, save the settings

to the CMOS, and then restart your system.
