ConguringSATAHardDrive(s) - 54 -
Step 2:
IfyouwanttocongureUEFIRAID,followthestepsin"C-1."ToenterthelegacyRAIDROM,savethesettings
and exit BIOS Setup. Refer to "C-2" for more information.
The BIOS Setup menus described in this section may differ from the exact settings for your motherboard.
The actual BIOS Setup menu options you will see shall depend on the motherboard you have and
the BIOS version.
B.ConguringSATAcontrollermodeinBIOSSetup
MakesuretoconguretheSATAcontrollermodecorrectlyinsystemBIOSSetup.
Step 1:
Turnonyourcomputerandpress<Delete>toenterBIOSSetupduringthePOST(Power-OnSelf-Test).Ensure

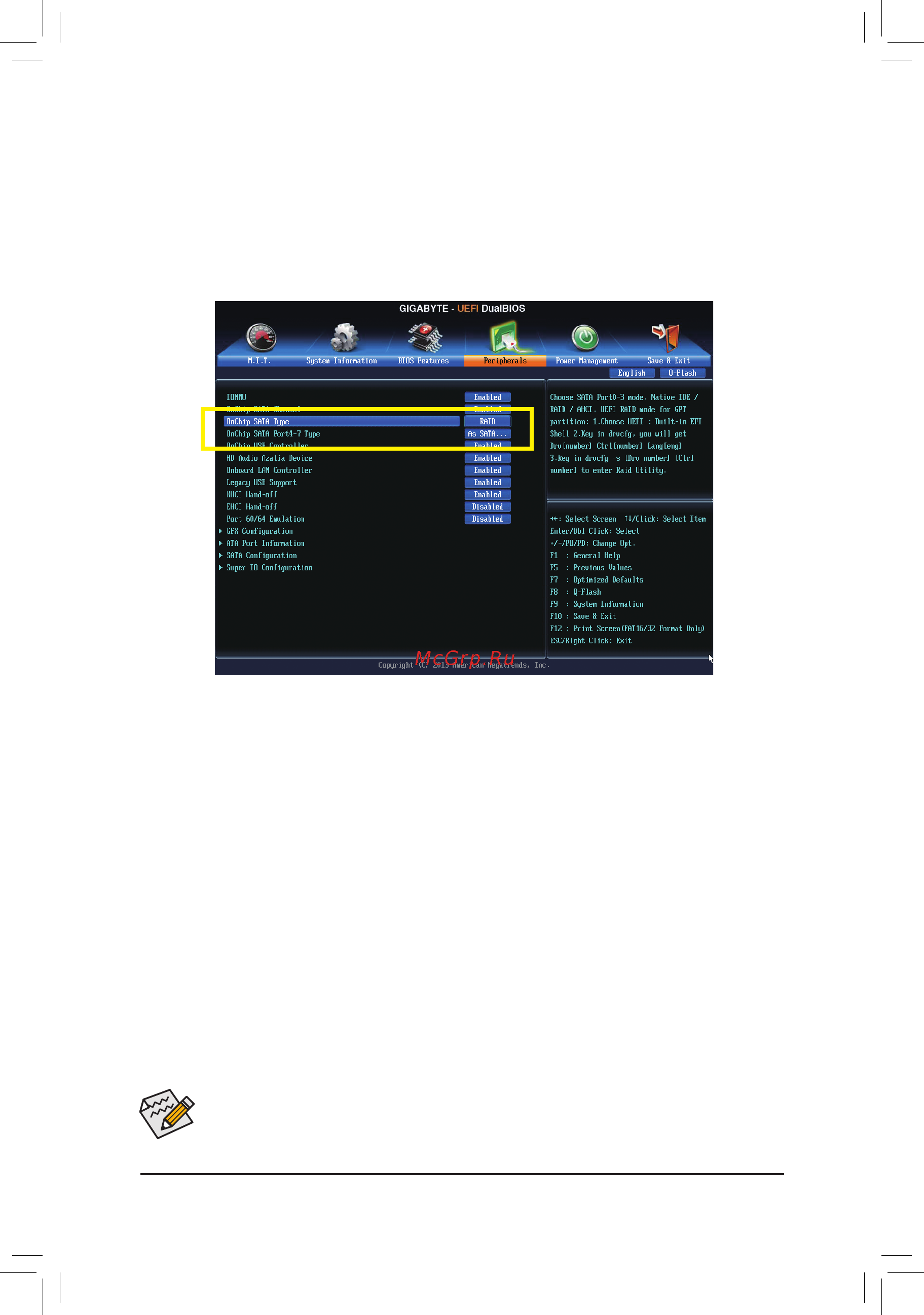

OnChip SATA Channel is enabled under Peripherals. Set OnChip SATA Type to RAID. To enable RAID for
the SATA3 4~7 connectors, set OnChip SATA Type to RAID and set OnChip SATA Port4-7 Type to As SATA
Type(Figure1).
Figure 1
