- 47 -
BIOS Setup

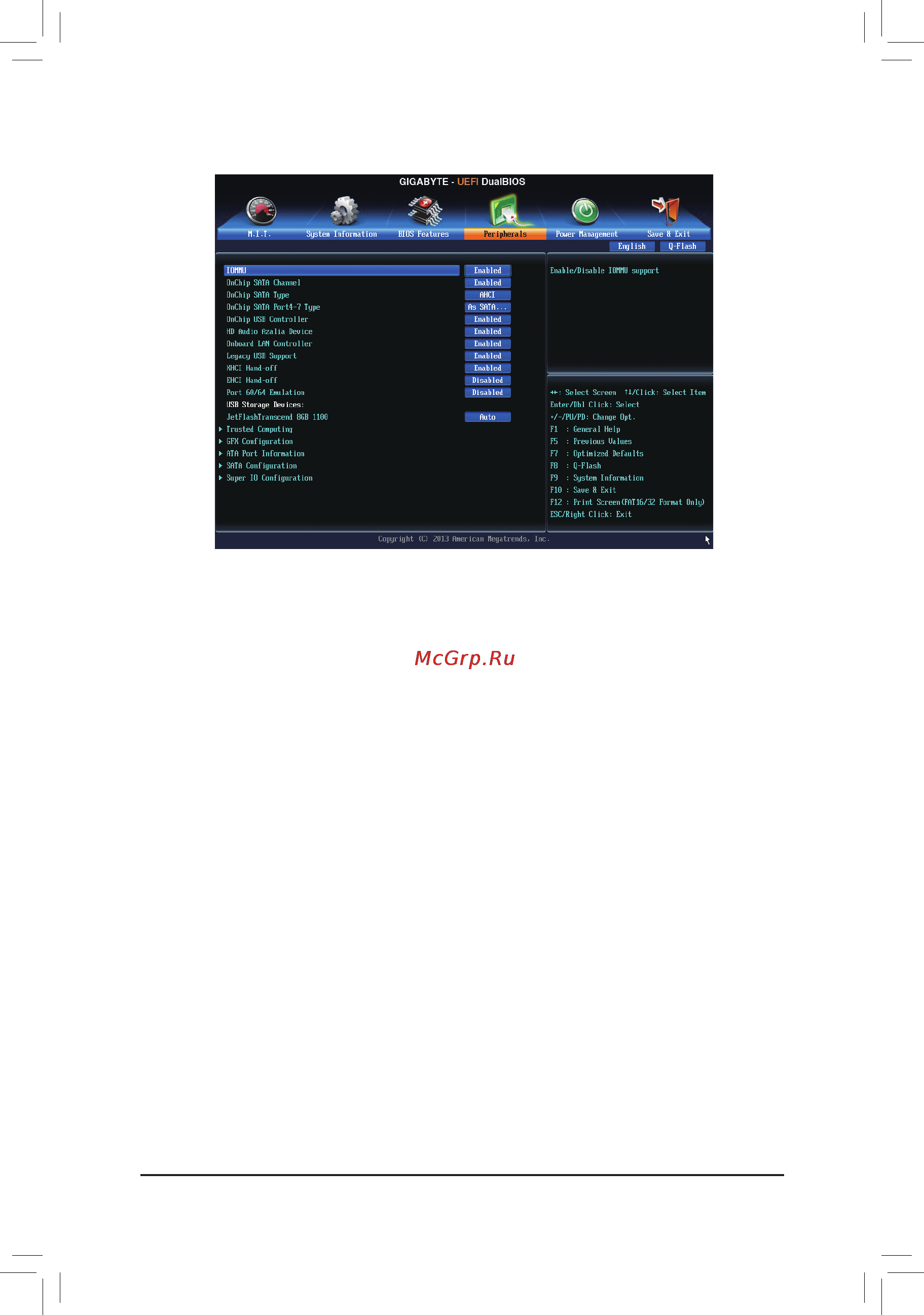

2-6 Peripherals
& IOMMU
Enables or disables AMD IOMMU support. (Default: Disabled)
& OnChip SATA Channel
Enables or disables the integrated SATA controllers. (Default: Enabled)
& OnChip SATA Type
Enables or disables RAID for the SATA controllers integrated in the Chipset or congures the SATA
controllers to AHCI mode.
Native IDE Congures the SATA controller to IDE mode.
RAID Enables RAID for the SATA controller.
AHCI Congures the SATA controllers to AHCI mode. Advanced Host Controller Interface
(AHCI) is an interface specication that allows the storage driver to enable advanced
Serial ATA features such as Native Command Queuing and hot plug. (Default)
& OnChip SATA Port4-7 Type (SATA3 4~SATA3 7 connectors)
This option is congurable only when OnChip SATA Type is set to RAID or AHCI. Congures the
operating mode of the integrated SATA3 4~SATA3 7 connectors.
As SATA Type The mode depends on the OnChip SATA Type settings. (Default)
IDE Congures the SATA3 4~SATA3 7 connectors to PATA mode.
& OnChip USB Controller
Enables or disables the integrated USB controller. (Default: Enabled)
& HD Audio Azalia Device
Enables or disables the onboard audio function. (Default: Enabled)
If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to
Disabled.
& Onboard LAN Controller
Enables or disables the onboard LAN function. (Default: Enabled)
If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to
Disabled.
