Hardware Installation

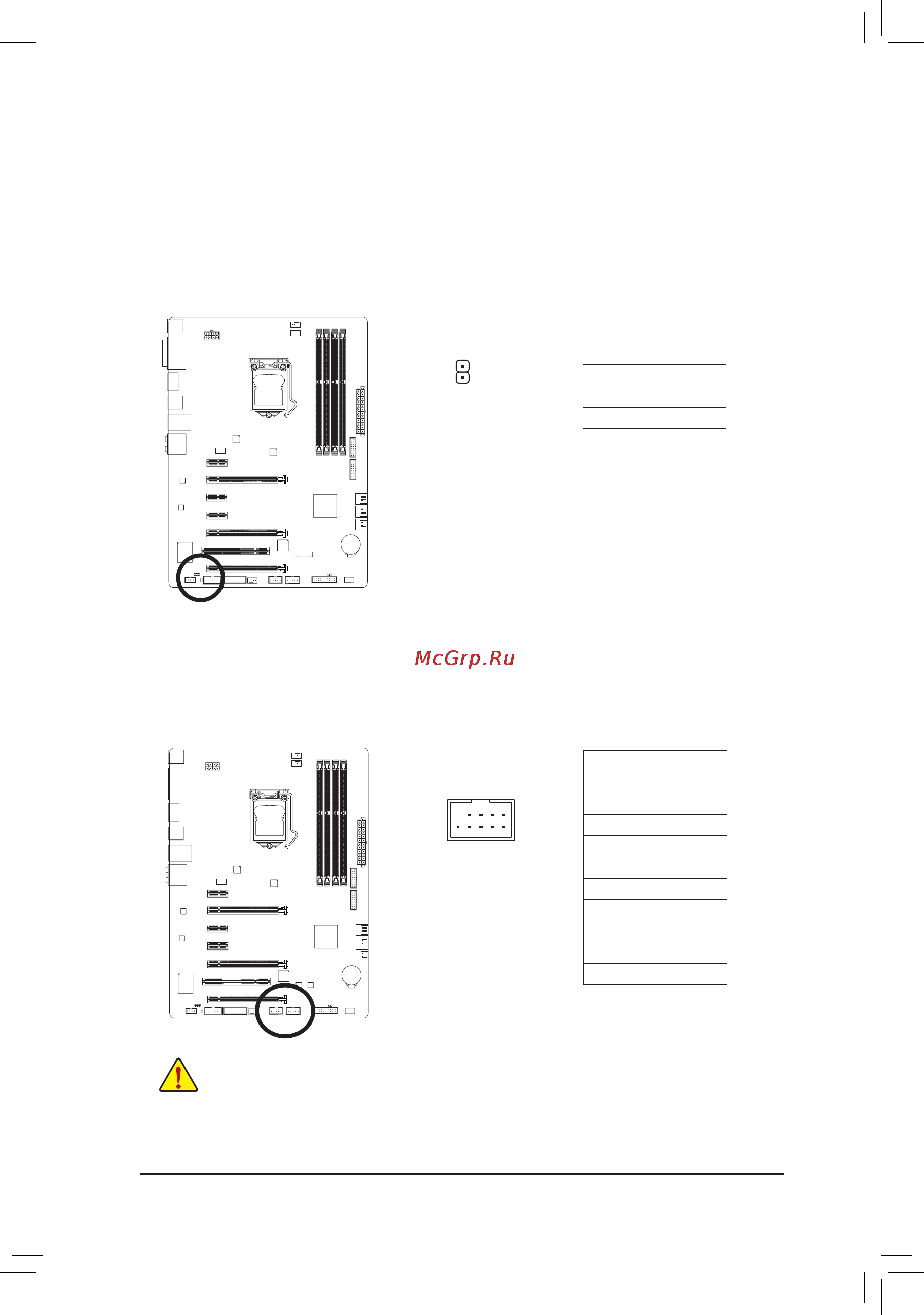

12) SPDIF_O (S/PDIF Out Header)

 ThisheadersupportsdigitalS/PDIFOutandconnectsaS/PDIFdigitalaudiocable(providedbyexpansion

cards)fordigitalaudiooutputfromyourmotherboardtocertainexpansioncardslikegraphicscardsand

sound cards. For example, some graphics cards may require you to use a S/PDIF digital audio cable for

digital audio output from your motherboard to your graphics card if you wish to connect an HDMI display

to the graphics card and have digital audio output from the HDMI display at the same time.

For information about connecting the S/PDIF digital audio cable, carefully read the manual for your expansion

card.

Pin No. Denition

1 SPDIFO

2 GND

13) F_USB1/F_USB2 (USB 2.0/1.1 Headers)

 TheheadersconformtoUSB2.0/1.1specication.EachUSBheadercanprovidetwoUSBportsviaan

optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.

DEBUG

PORT

G.QBOFM

Pin No. Denition

1 Power(5V)

2 Power(5V)

3 USB DX-

4 USB DY-

5 USB DX+

6 USB DY+

7 GND

8 GND

9 No Pin

10 NC

• DonotplugtheIEEE1394bracket(2x5-pin)cableintotheUSB2.0/1.1header.

• Prior to installing the USB bracket, be sure to turn off your computer and unplug the power cord

from the power outlet to prevent damage to the USB bracket.
