Unique Features
- 86 -
EZ Smart Connect
A. System Requirements
1. Intel
®
Smart Connect Technology enabled in BIOS Setup
2. Windows7withSP1/Windows8
3. Intel
®
Smart Connect Technology utility installed
4. Properly-working network connection
5. ProgramsaddedtotheWhiteListmustbeturnedon
(Note)

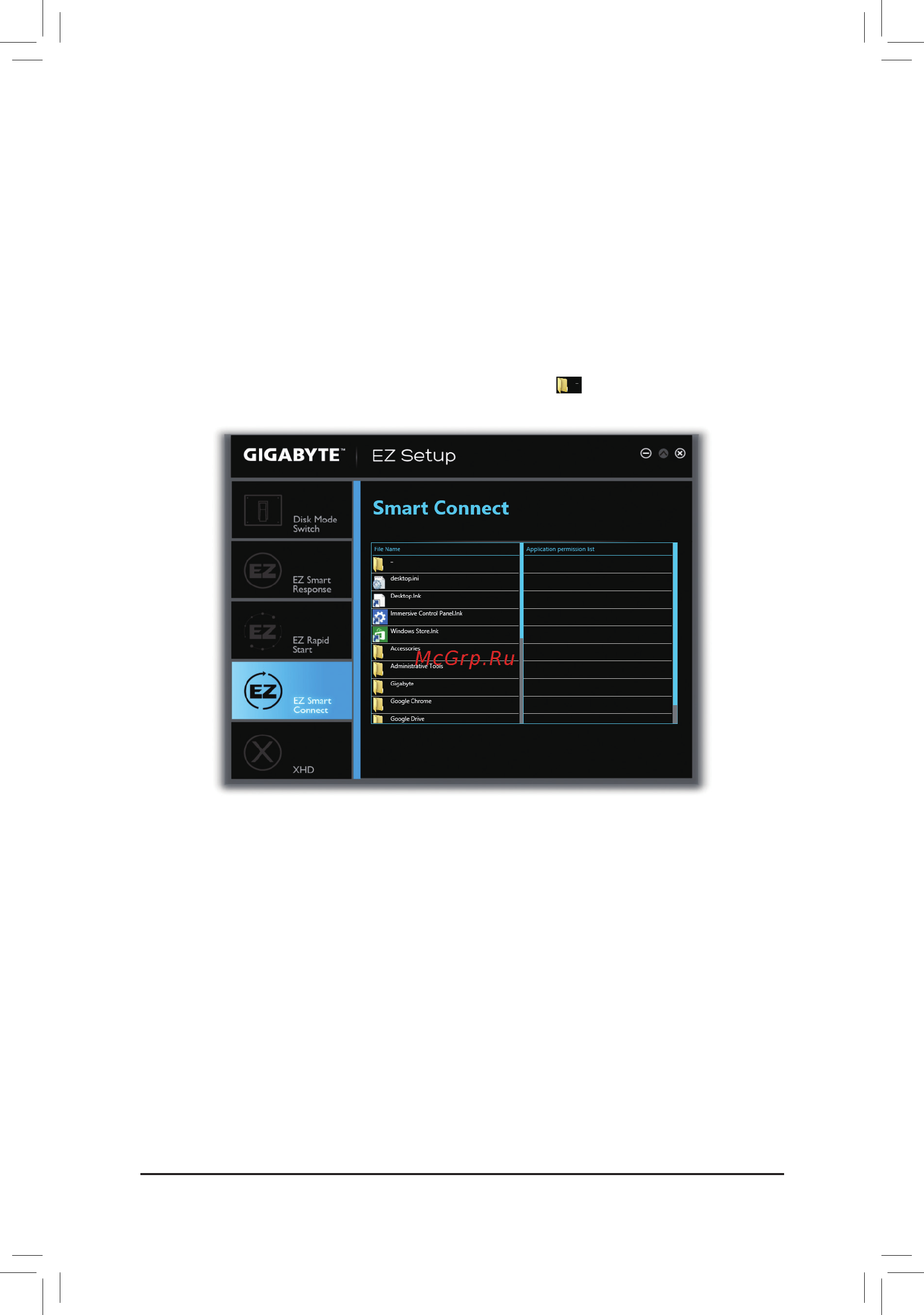

B. Using EZ Smart Connect
Select EZ Smart Connect. Under File Name, select the apps to be auto-updated by Smart Connect. Double-
click the app to add it to the Application permission list.(Double-click toreturntothepreviousdirectory.)
(Note) ThisfeatureworksbestwithprogramsdesignedtoworkautomaticallywiththeInternettoobtaintheir
data such as Outlook
®
,WindowsLive
™
Mail, and Seesmic
®
.
