- 30 -

Hardware Installation

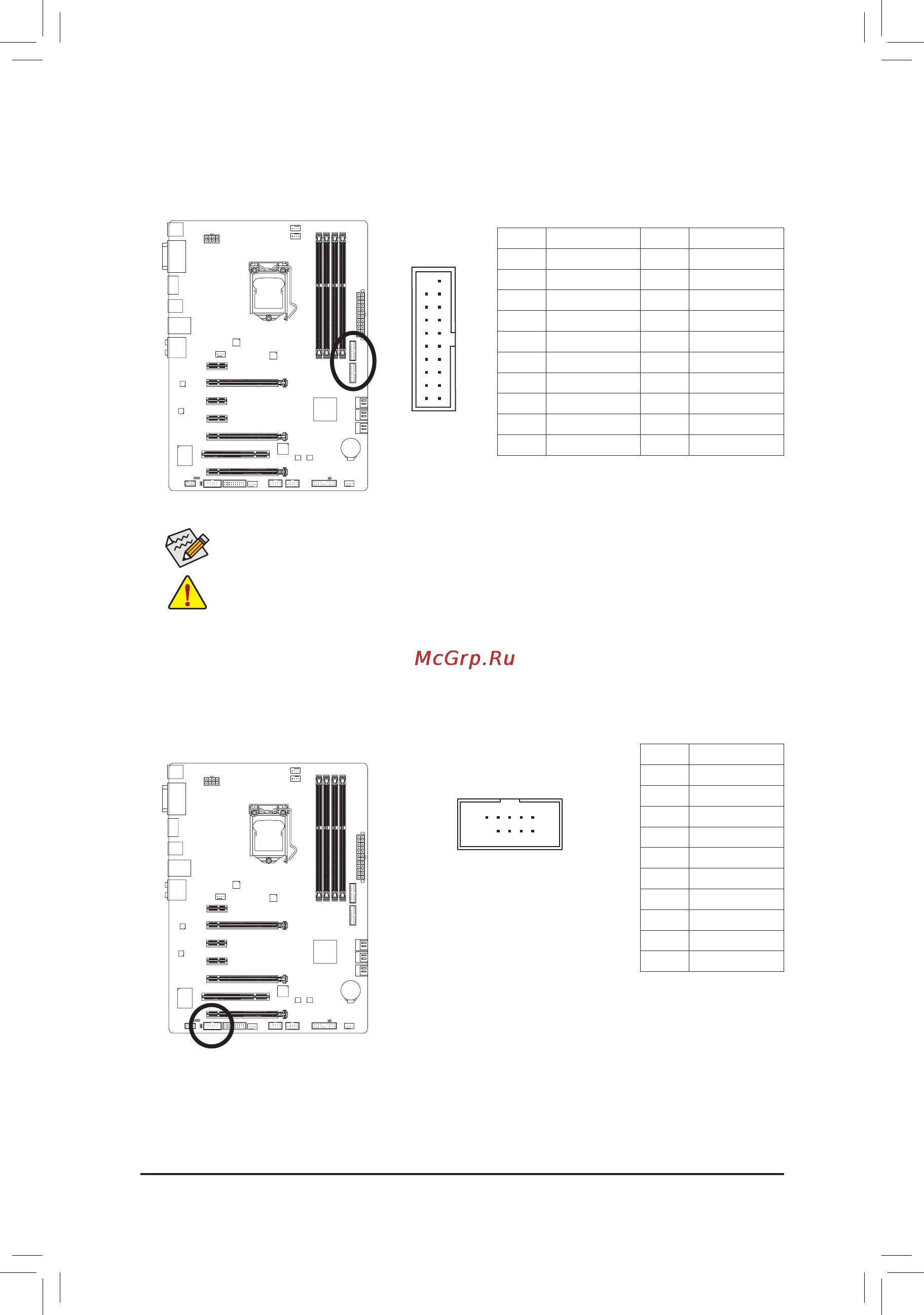

14) F_USB30_1/F_USB30_2 (USB 3.0/2.0 Headers)

 TheheaderconformstoUSB3.0/2.0specicationandcanprovidetwoUSBports.Forpurchasingthe

optional 3.5" front panel that provides two USB 3.0/2.0 ports, please contact the local dealer.

Pin No. Denition Pin No. Denition

1 VBUS 11 D2+

2 SSRX1- 12 D2-

3 SSRX1+ 13 GND

4 GND 14 SSTX2+

5 SSTX1- 15 SSTX2-

6 SSTX1+

16 GND

7 GND 17 SSRX2+

8 D1- 18 SSRX2-

9 D1+ 19 VBUS

10 NC 20 No Pin

F_USB30

F_AUDIO(H)

DB_PORT

F_PANEL(NH) F_PANEL

(H61M-D2)

TPM

w/housing

15) COMA (Serial Port Header)

The COM header can provide one serial port via an optional COM port cable. For purchasing the optional

COM port cable, please contact the local dealer.

Pin No. Denition

1 NDCD-

2 NSIN

3 NSOUT

4 NDTR-

5 GND

6 NDSR-

7 NRTS-

8 NCTS-

9 NRI-

10 No Pin

Prior to installing the USB front panel, be sure to turn off your computer and unplug the power cord

from the power outlet to prevent damage to the USB front panel.

Only the USB ports routed to the F_USB30_1 header can support the ON/OFF Charge2 function.
